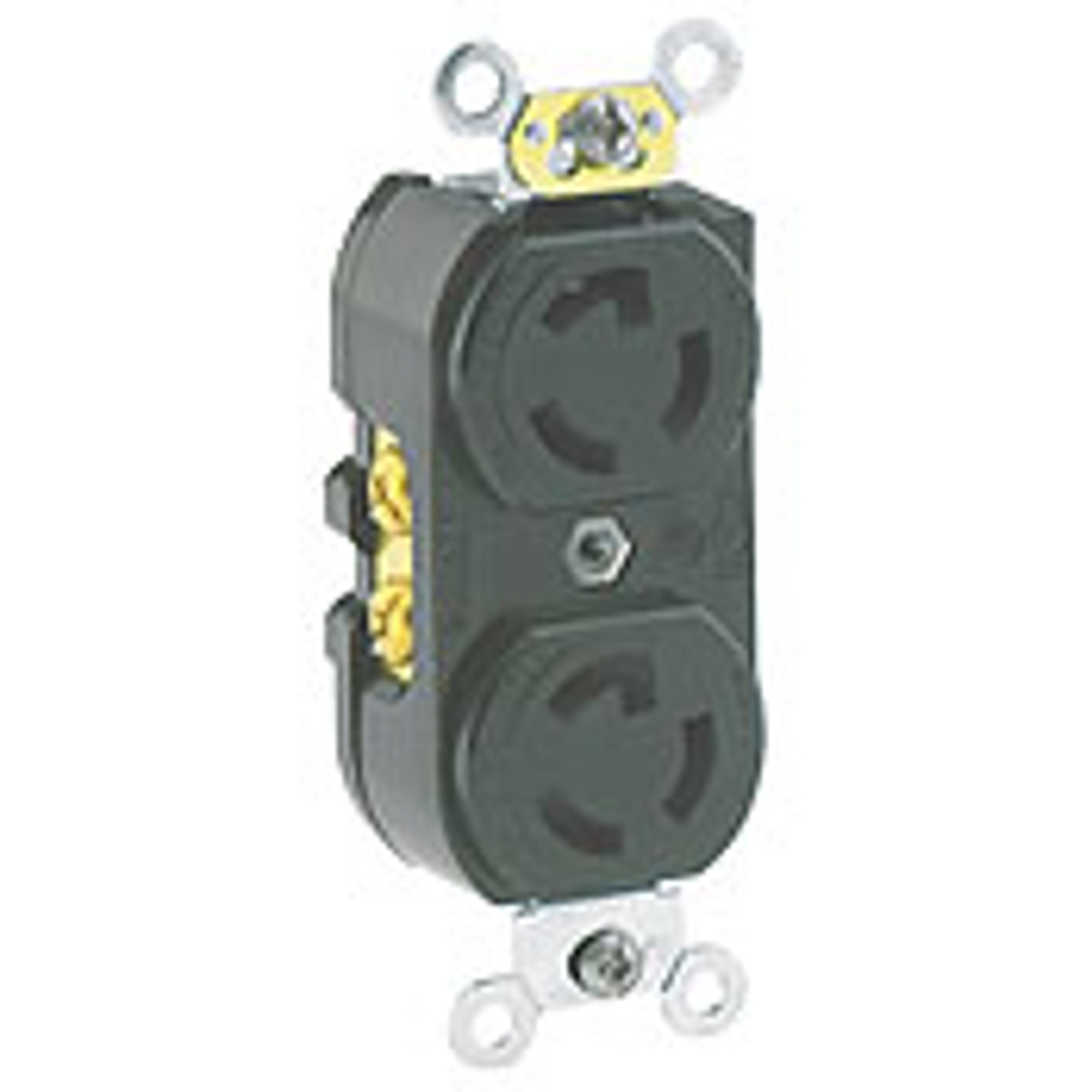

Leviton 4750 Series Locking Duplex Receptacles 15 A 277 V 2P3W L7-15R
| Illumination | No Illumination |
| Temperature Rating | -40 to 60 deg C |
| Standards | NEMA, ANSI, NOM Certified, CSA C22.2 No. 42, UL Fed Spec WC-596 |
| Size | 46 H x 1.44 W x 1.20 D |
| Brand | Leviton |

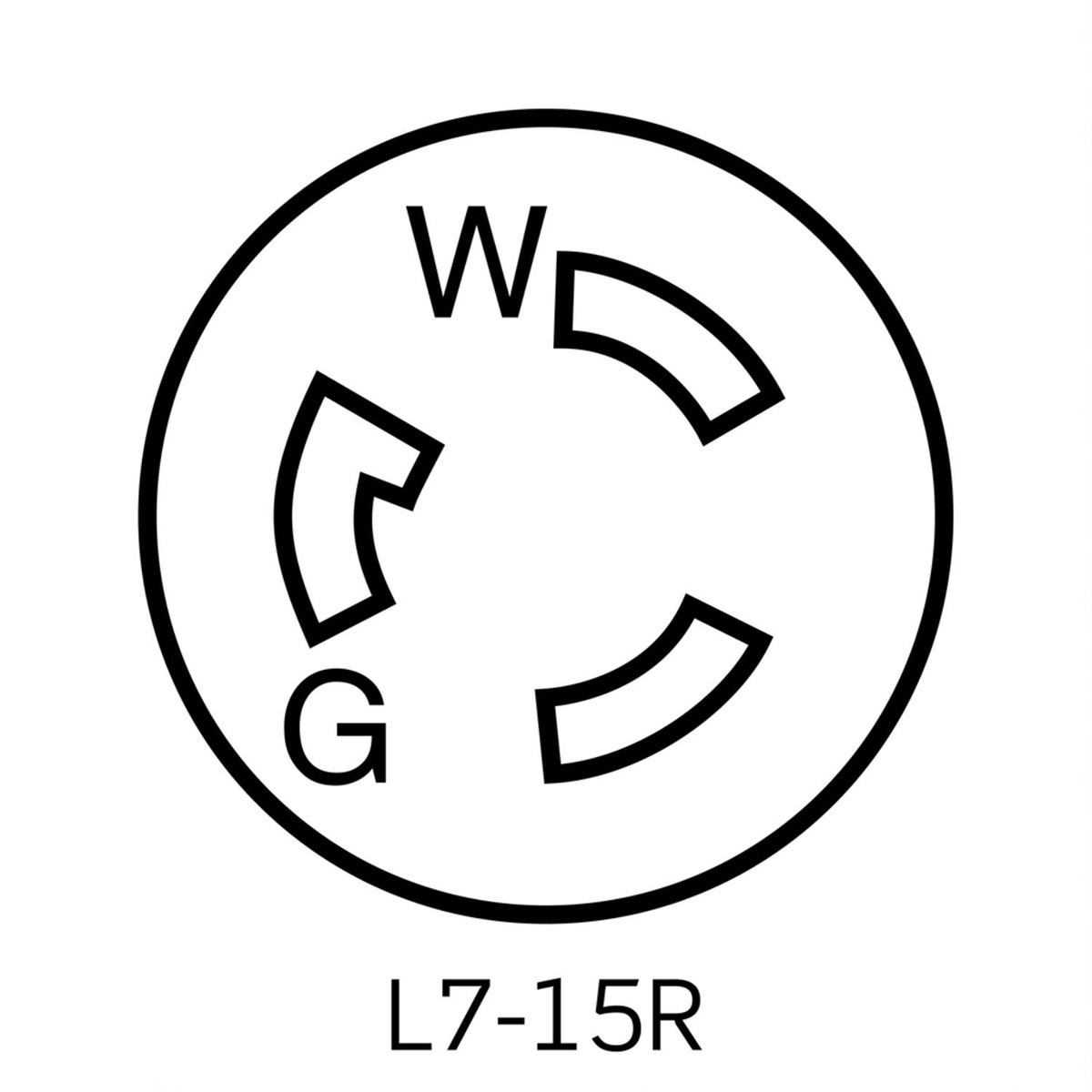

| NEMA Configuration | L7-15R |
| Type | Receptacle |
| Wire Size | 18 - 10 AWG |
| Ground Type | Grounding |
| Mounting Type | Screw |
| Voltage | 277 V |
| Hazardous Rated | Not Hazardous Rated |
| Grade | Industrial |
| Device Configuration | Duplex Receptacle |
| Wiring Method | Back and Side Wired |
| Width | 2.77 in |
| Environmental Condition | Dry Location |
| Color | Black |
| Amperage | 15 A |
| Pole/Wire | 2P3W |
| NEMA Rating | WD-6 |
| Number of Phases | 1 Phase |
| Material | Nylon |
| Insulation | Uninsulated |
| Number of Poles | 2 Pole |
| Leviton Specification Sheet | Specification Sheet |
|
