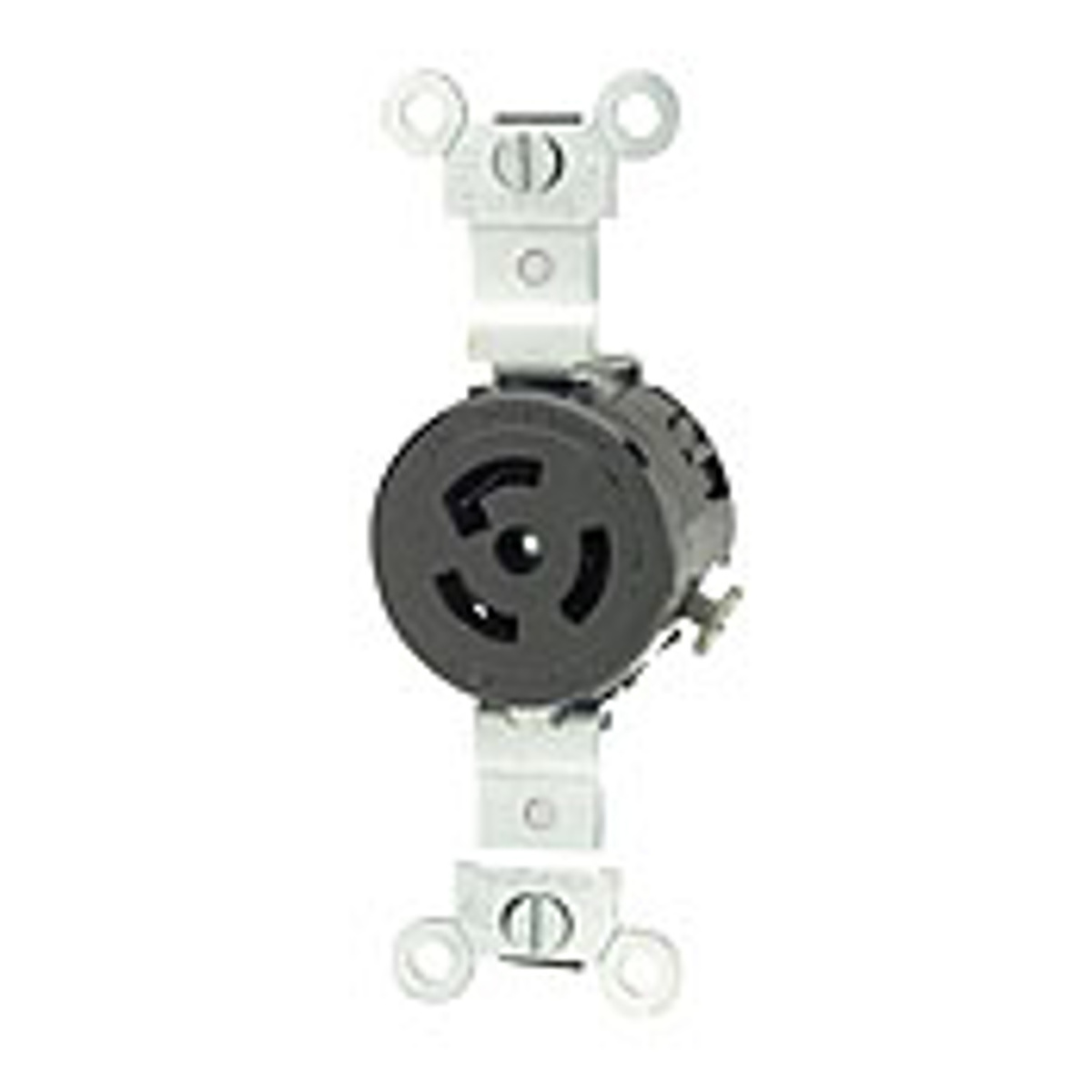

Leviton 4710 Series Locking Receptacles 15 A 125 V 2P3W L5-15R
Double-wipe phosphor-bronze power contacts
- Rugged nylon body and cover for outstanding resistance to impact and harsh chemicals
| Brand | Leviton |

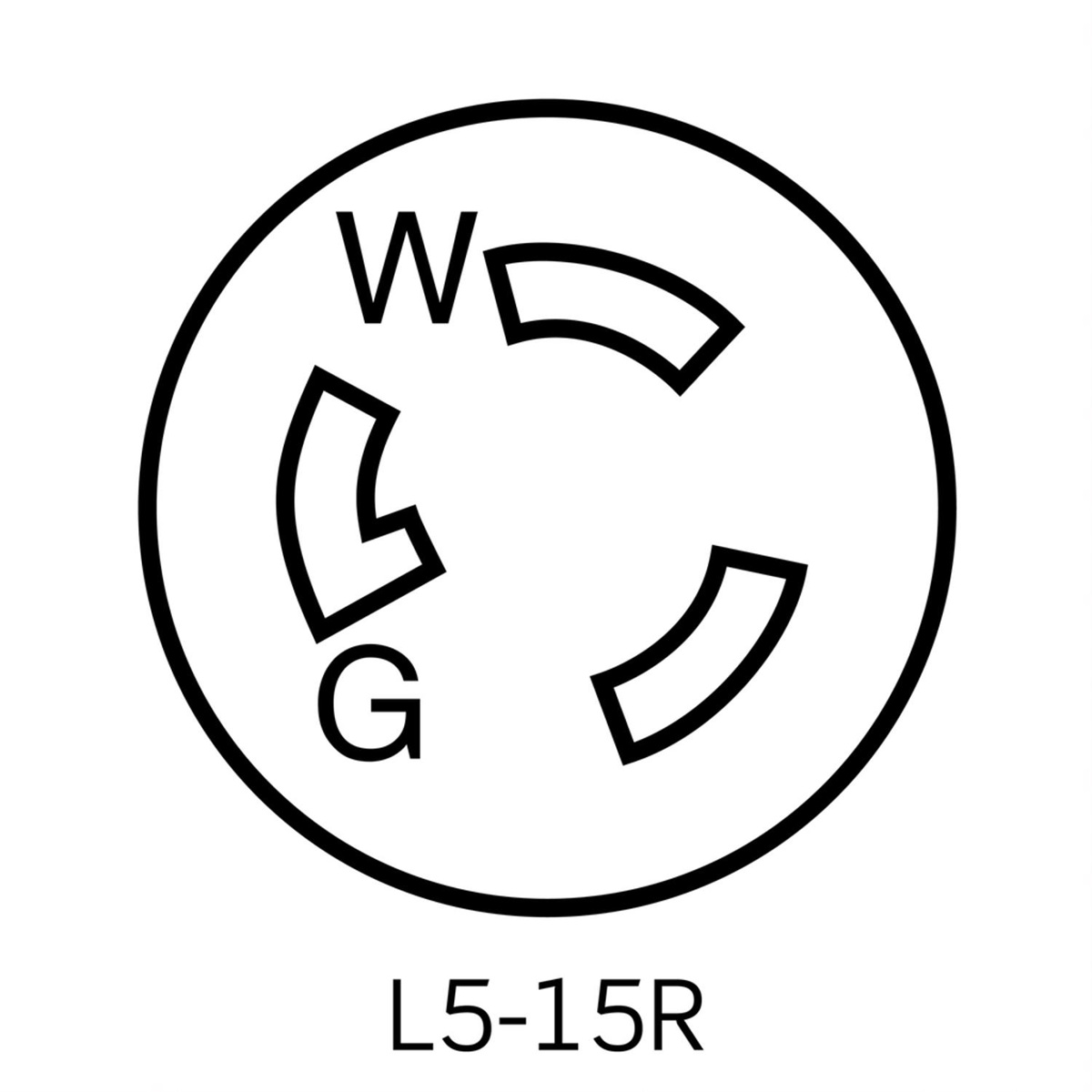

| NEMA Configuration | L5-15R |
| Type | Receptacle |
| Wire Size | 18 - 10 AWG |
| Ground Type | Grounding |
| Mounting Type | Screw |
| Voltage | 125 V |
| Hazardous Rated | Not Hazardous Rated |
| Grade | Industrial |
| Device Configuration | Single Receptacle |
| Wiring Method | Side Wired |
| Width | 3.69 in |
| Environmental Condition | Dry Location |
| Color | Black |
| Amperage | 15 A |
| Pole/Wire | 2P3W |
| NEMA Rating | WD-6 |
| Number of Phases | 1 Phase |
| Material | Nylon |
| Insulation | Uninsulated |
| Number of Poles | 2 Pole |
| Leviton Specification Sheet | Specification Sheet |
|
