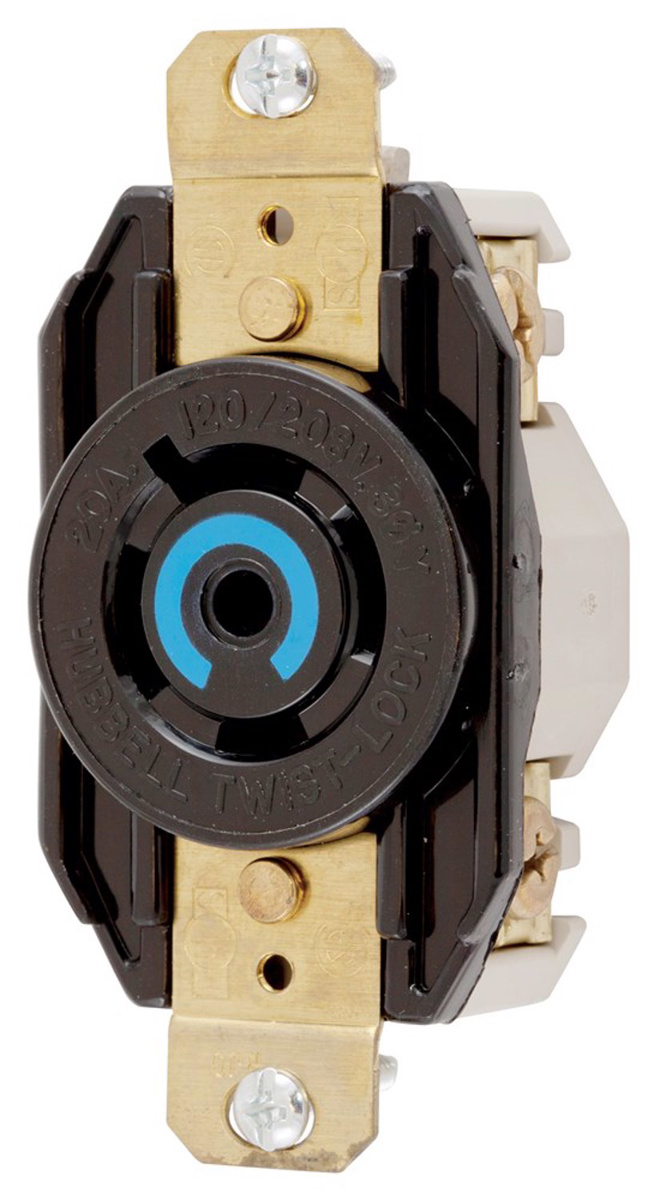

Hubbell Wiring Locking Single Receptacles 20 A 120/208 V 4P5W L21-20R Twist-Lock®
Mfg #:
HBL2510
BOR #:
136892
| Brand | Hubbell Wiring |

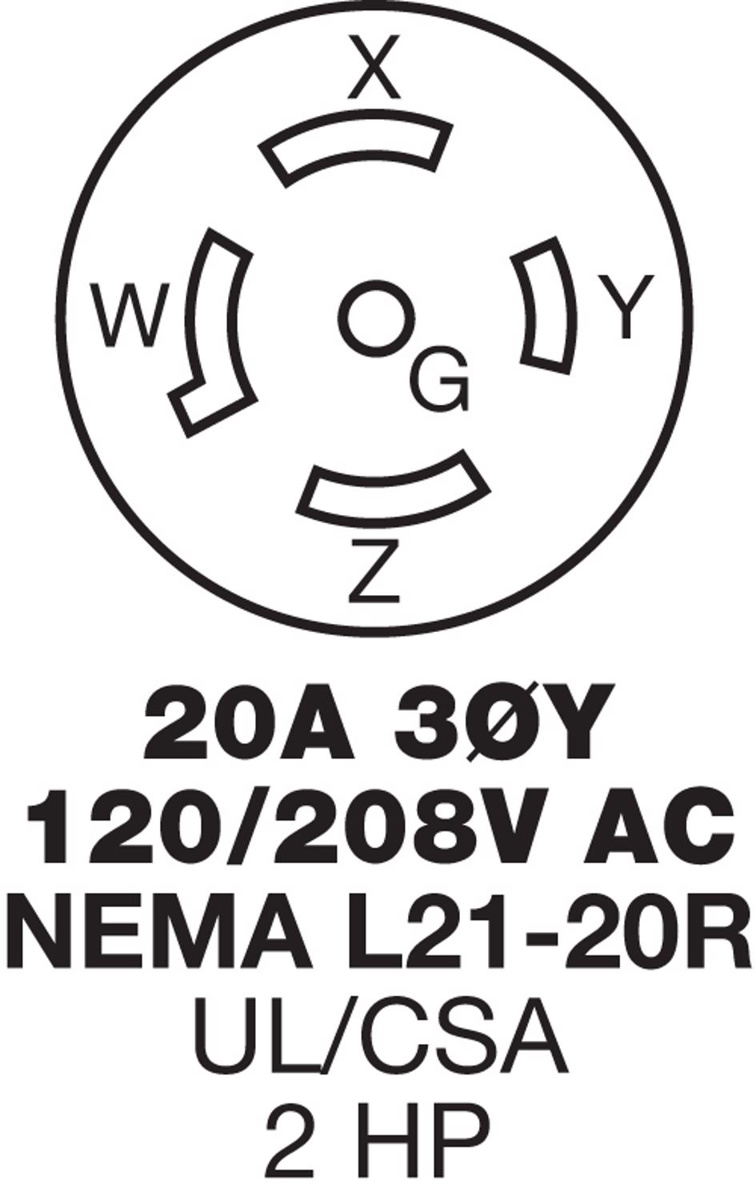

| NEMA Configuration | L21-20R |
| Wire Size | 16 - 8 AWG |
| Ground Type | Grounding |
| Mounting Type | Screw |
| Voltage | 120/208 V |
| Hazardous Rated | Not Hazardous Rated |
| Grade | Industrial |
| Device Configuration | Single Receptacle |
| Wiring Method | Back and Side Wired |
| Environmental Condition | Dry Location |
| Series | Twist-Lock® |
| Color | Black |
| Amperage | 20 A |
| Device Control Style | Locking |
| Pole/Wire | 4P5W |
| Number of Phases | 3 Phase |
| IP Rating | IP20 |
| Material | Nylon |
| Insulation | Uninsulated |
| Number of Poles | 4 Pole |
| Catalog Full Asset Reference | Catalog |
|
| Catalog Page Asset Reference 2 | Catalog |
|
| Catalog Page Asset Reference 3 | Catalog |
|
| Hubbell Wiring Specification Sheet | Specification Sheet |
|
| Catalog Page Asset Reference 1 | Catalog |
|
| Installation Manuals Asset Reference | Installation and Instruction Manuals |
|
