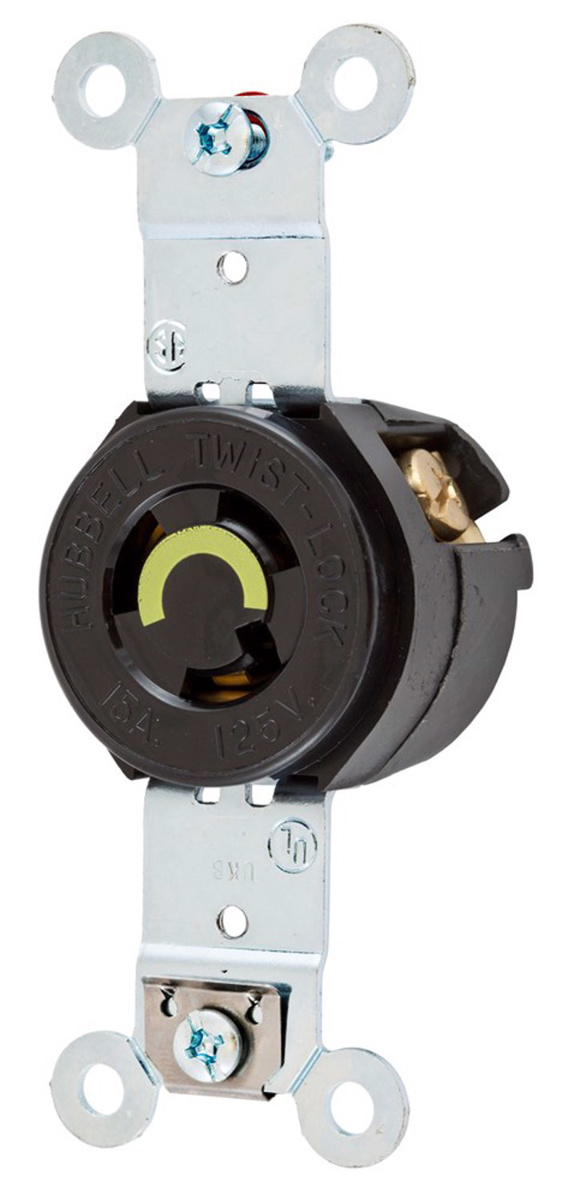

Hubbell Wiring Locking Single Receptacles 15 A 125 V 2P3W L5-15R Twist-Lock®
This product has been discontinued.
For replacement, please view:Hubbell Wiring Locking Single Receptacles 15 A 125 V 2P3W L5-15R EdgeConnect™ Twist-Lock®
Mfg #:
HBL4710
BOR #:
136926
| Brand | Hubbell Wiring |

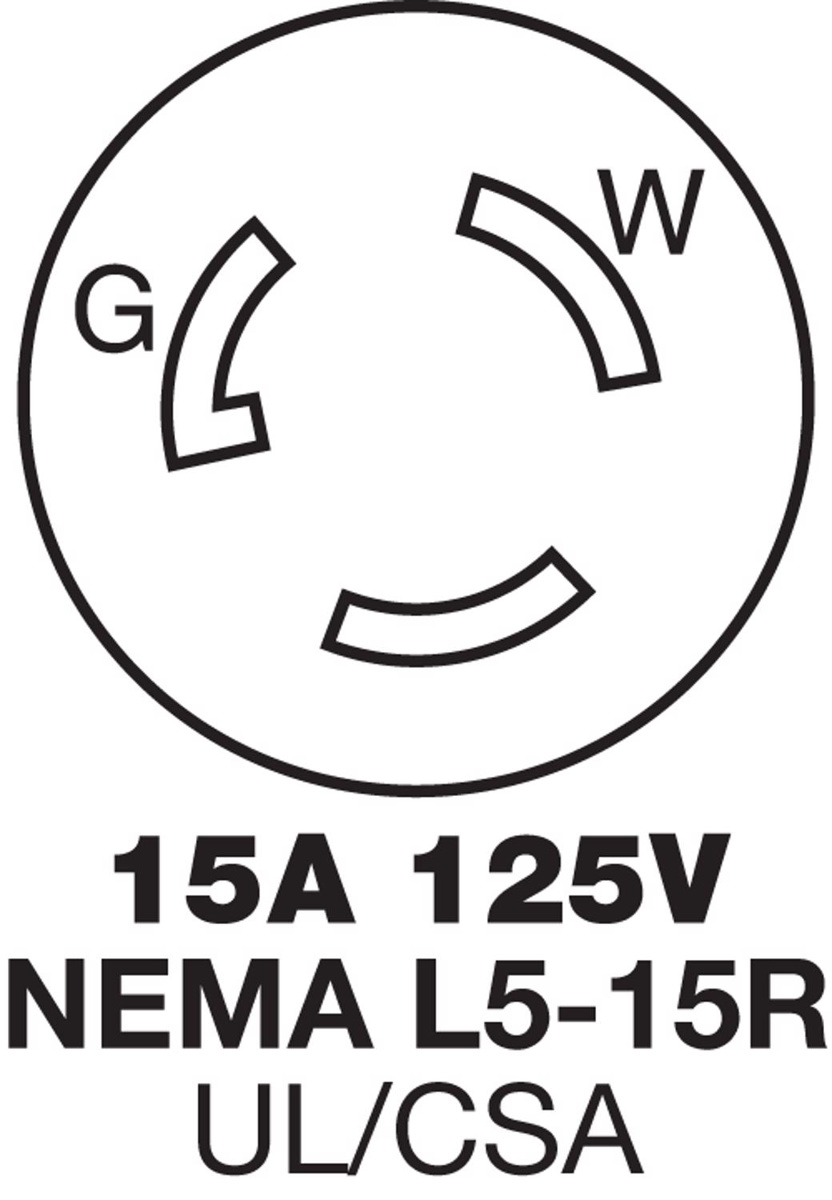

| NEMA Configuration | L5-15R |
| Wire Size | 18 - 10 AWG |
| Ground Type | Grounding |
| Mounting Type | Screw |
| Voltage | 125 V |
| Hazardous Rated | Not Hazardous Rated |
| Grade | Industrial |
| Device Configuration | Single Receptacle |
| Wiring Method | Back and Side Wired |
| Environmental Condition | Dry Location |
| Series | Twist-Lock® |
| Color | Black |
| Amperage | 15 A |
| Device Control Style | Locking |
| Pole/Wire | 2P3W |
| Number of Phases | 1 Phase |
| IP Rating | IP20 |
| Material | Reinforced Thermoplastic (RTP) |
| Insulation | Uninsulated |
| Number of Poles | 2 Pole |
| Brochure - Industrial Solutions | Brochure |
|
| Brochure - Hubbell Education Application Guide | Brochure |
|
| Brochure - Insulgrip® Straight Blade and Twist-Lock® Devices | Brochure |
|
| Hubbell Wiring Specification Sheet | Specification Sheet |
|
| WIRING_PD2615_INSTALLINST | Installation and Instruction Manuals |
|
| Brochure - Food Processing Guide | Brochure |
|
| Brochure - Entertainment Product Solution Guide | Brochure |
|
| Wiring_Catalog_B13_CatPage | Catalog |
|
| Brochure - Healthcare Application Guide | Brochure |
|
