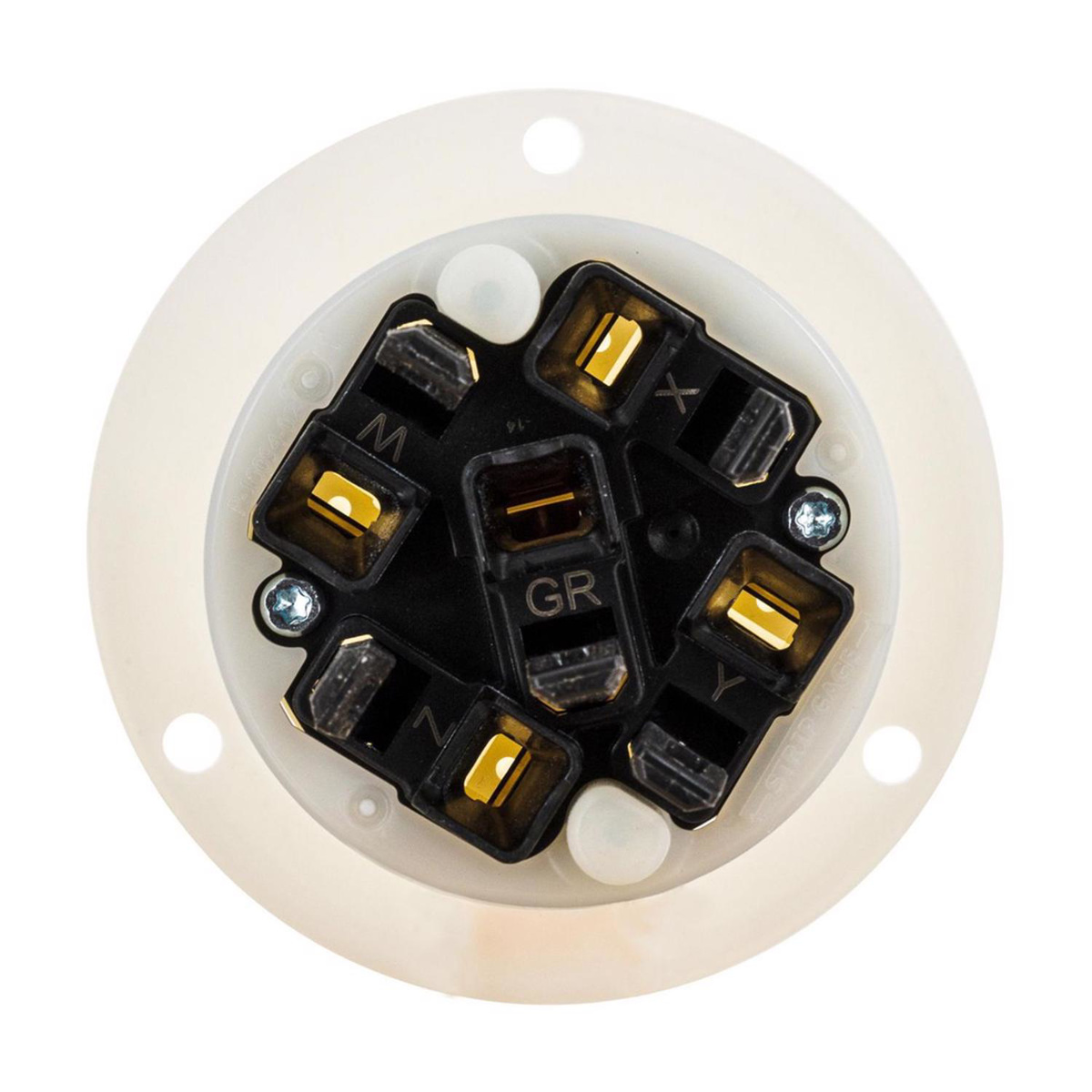

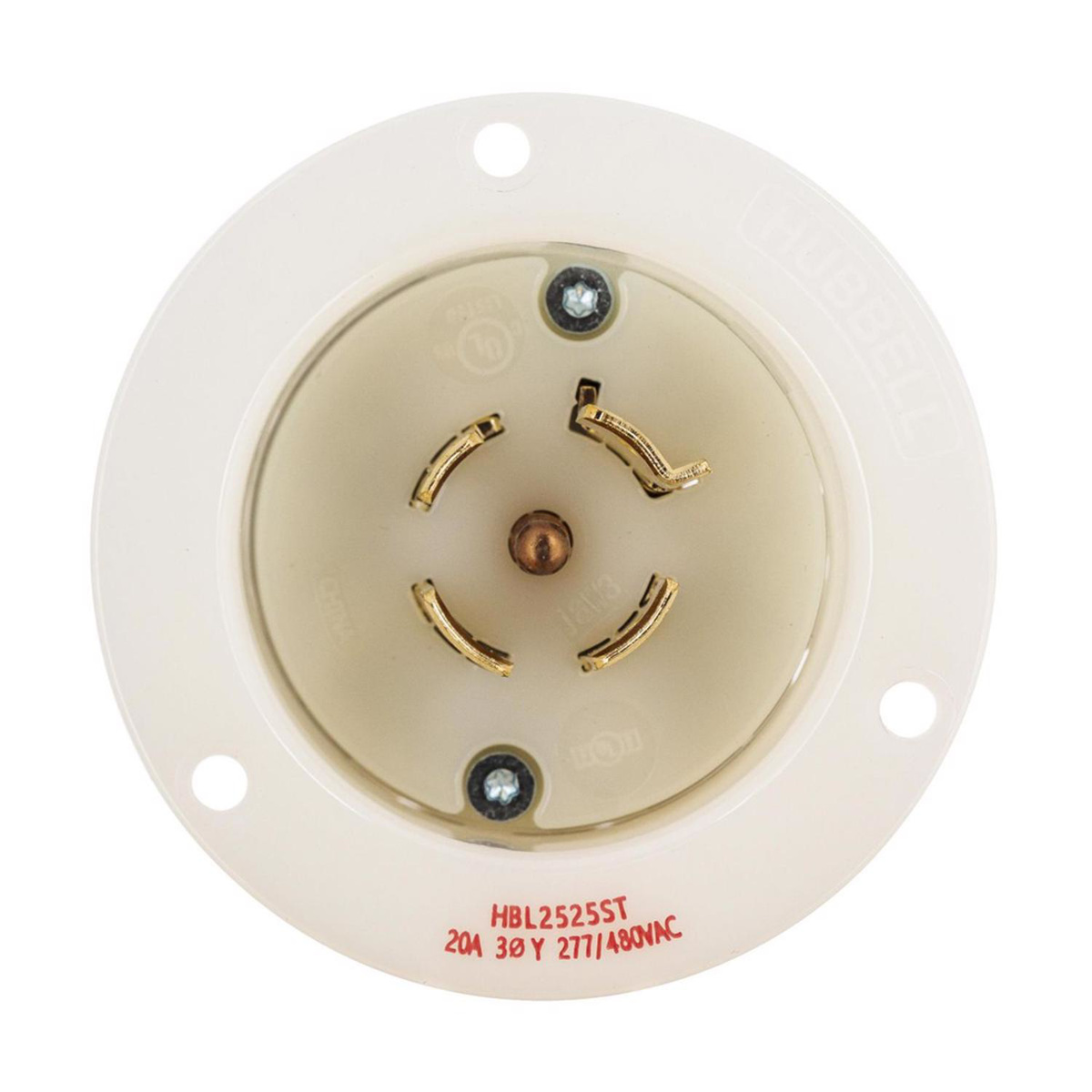

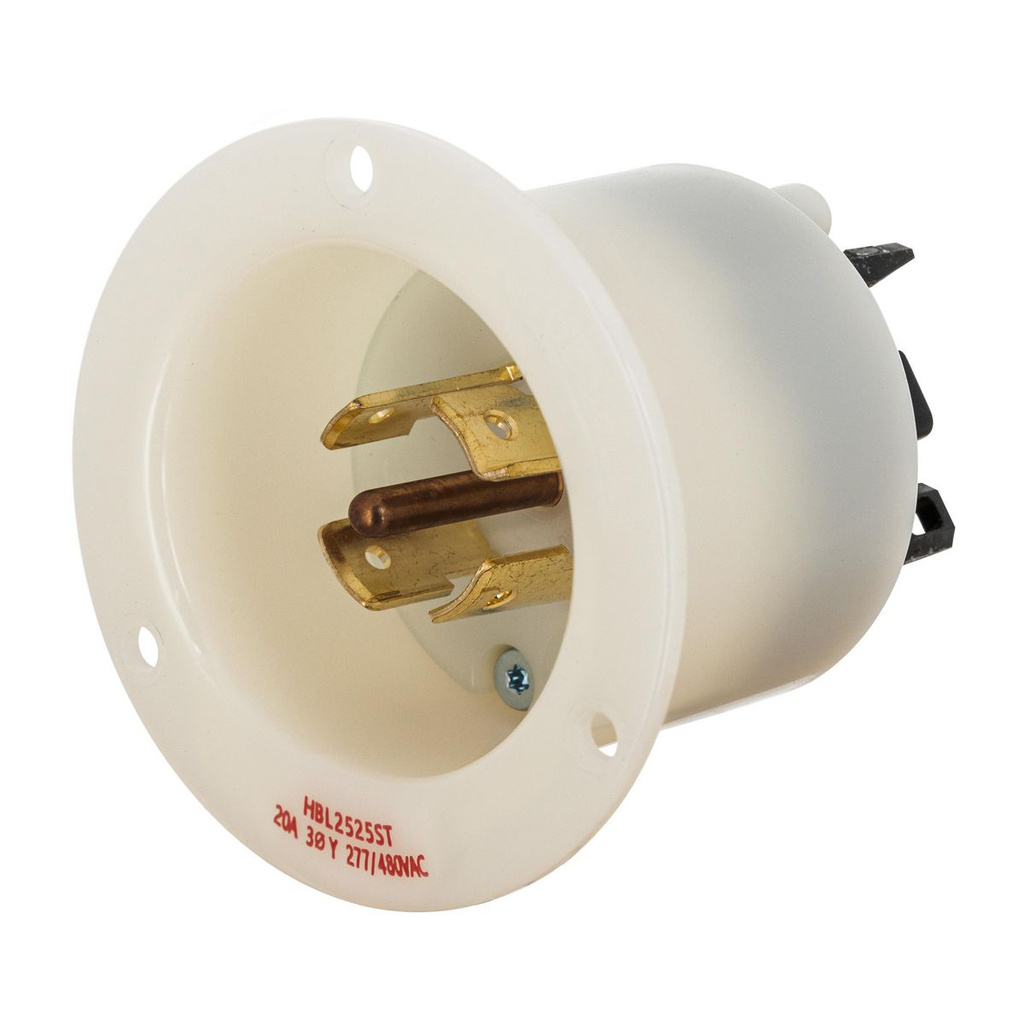

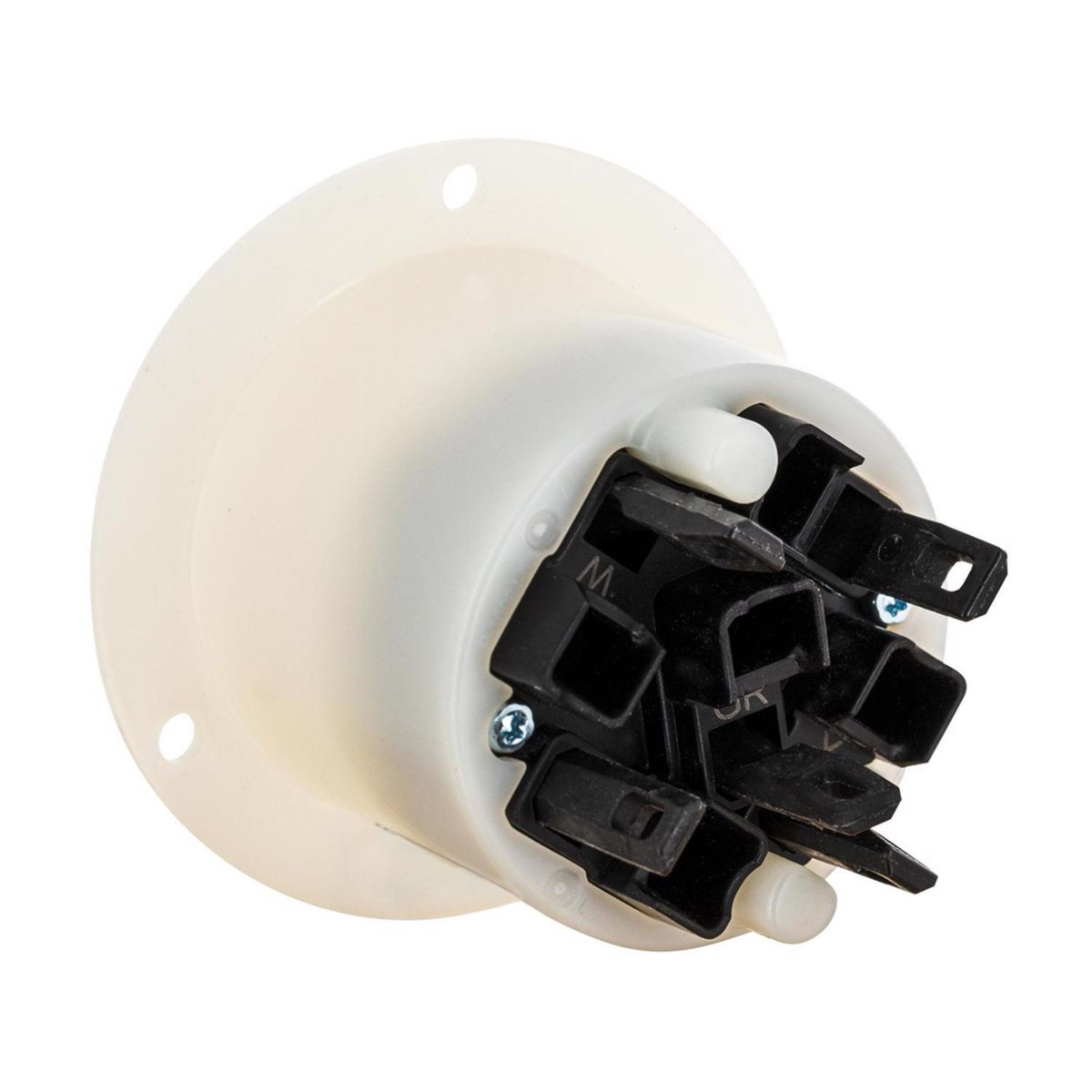

Hubbell Wiring Locking Flanged Inlets 20 A 277/480 V 4P5W L22-20P EdgeConnect™ Twist-Lock® Insulgrip®
Mfg #:
HBL2525ST
BOR #:
3572472
| Brand | Hubbell Wiring |
| NEMA Configuration | L22-20P |
| Wire Size | 14 - 6 AWG |
| Ground Type | Grounding |
| Mounting Type | Screw |
| Voltage | 277/480 V |
| Hazardous Rated | Not Hazardous Rated |
| Grade | Industrial |
| Device Configuration | Inlet |
| Wiring Method | Screwless Termination |
| Design | Flanged |
| Environmental Condition | Dry Location |
| Series | EdgeConnect™ Twist-Lock® Insulgrip® |
| Color | White |
| Amperage | 20 A |
| Device Control Style | Locking |
| Pole/Wire | 4P5W |
| Number of Phases | 3 Phase |
| IP Rating | IP20 |
| Material | Nylon |
| Insulation | Insulated |
| Number of Poles | 4 Pole |
| Catalog Full Asset Reference | Catalog |
|
| Catalog Page Asset Reference | Catalog |
|
| Installation Manuals Asset Reference | Installation and Instruction Manuals |
|
