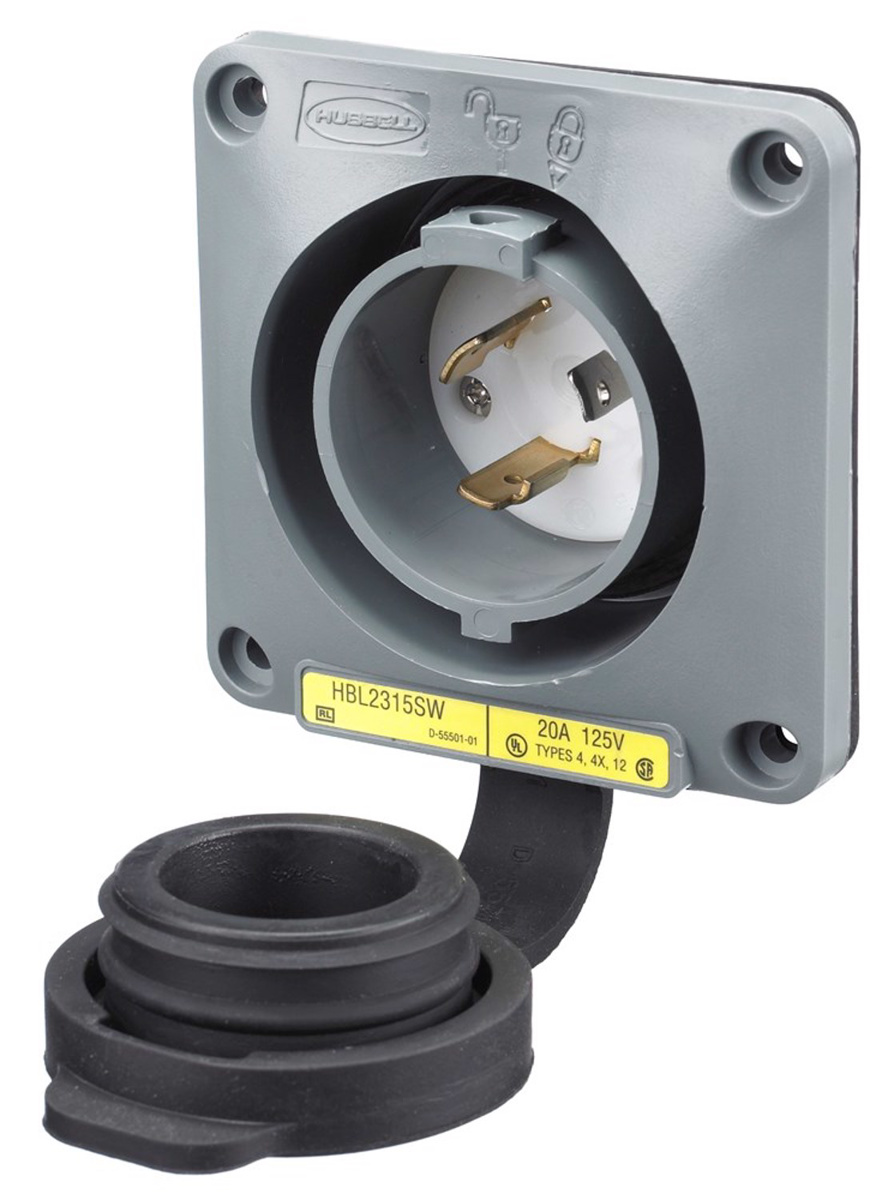

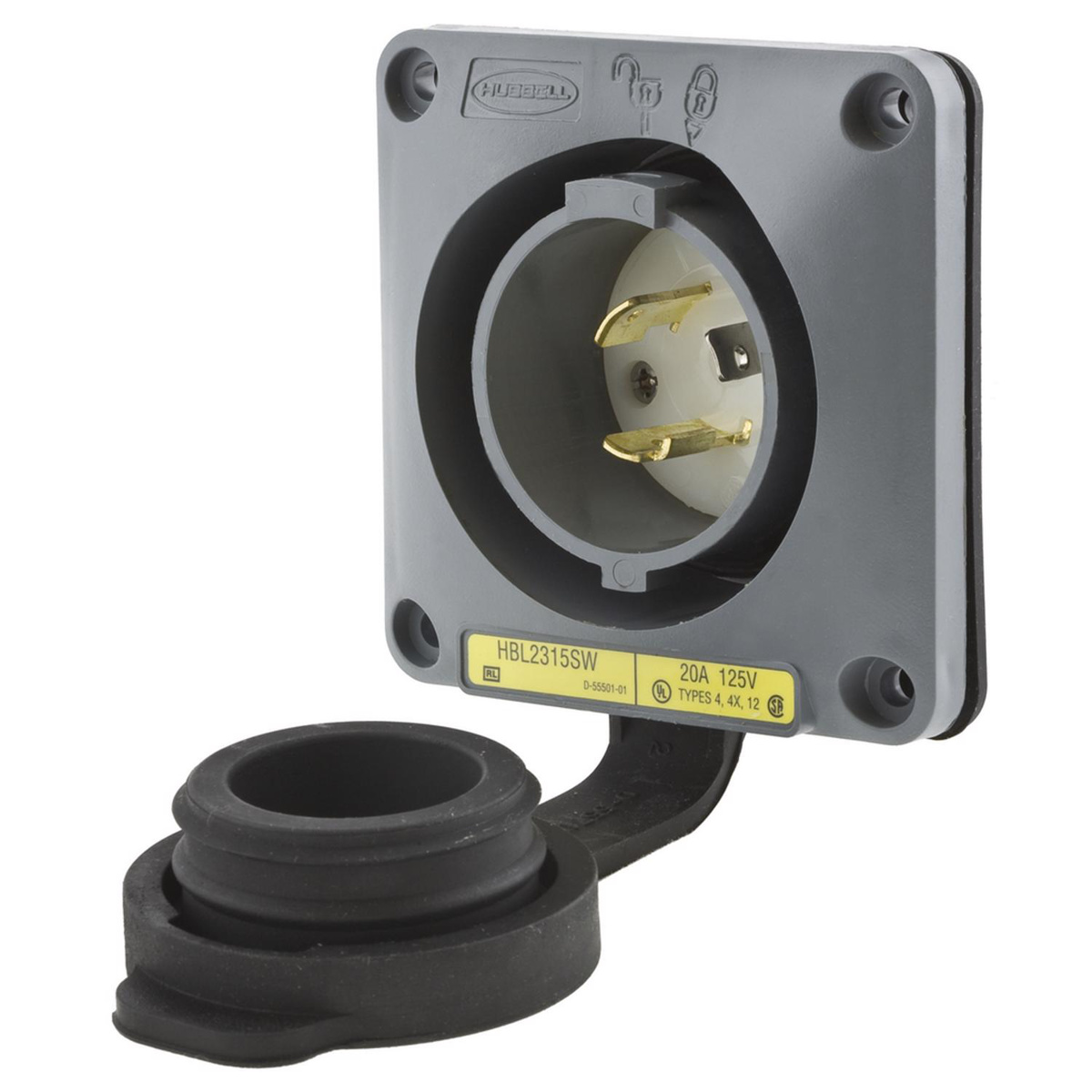

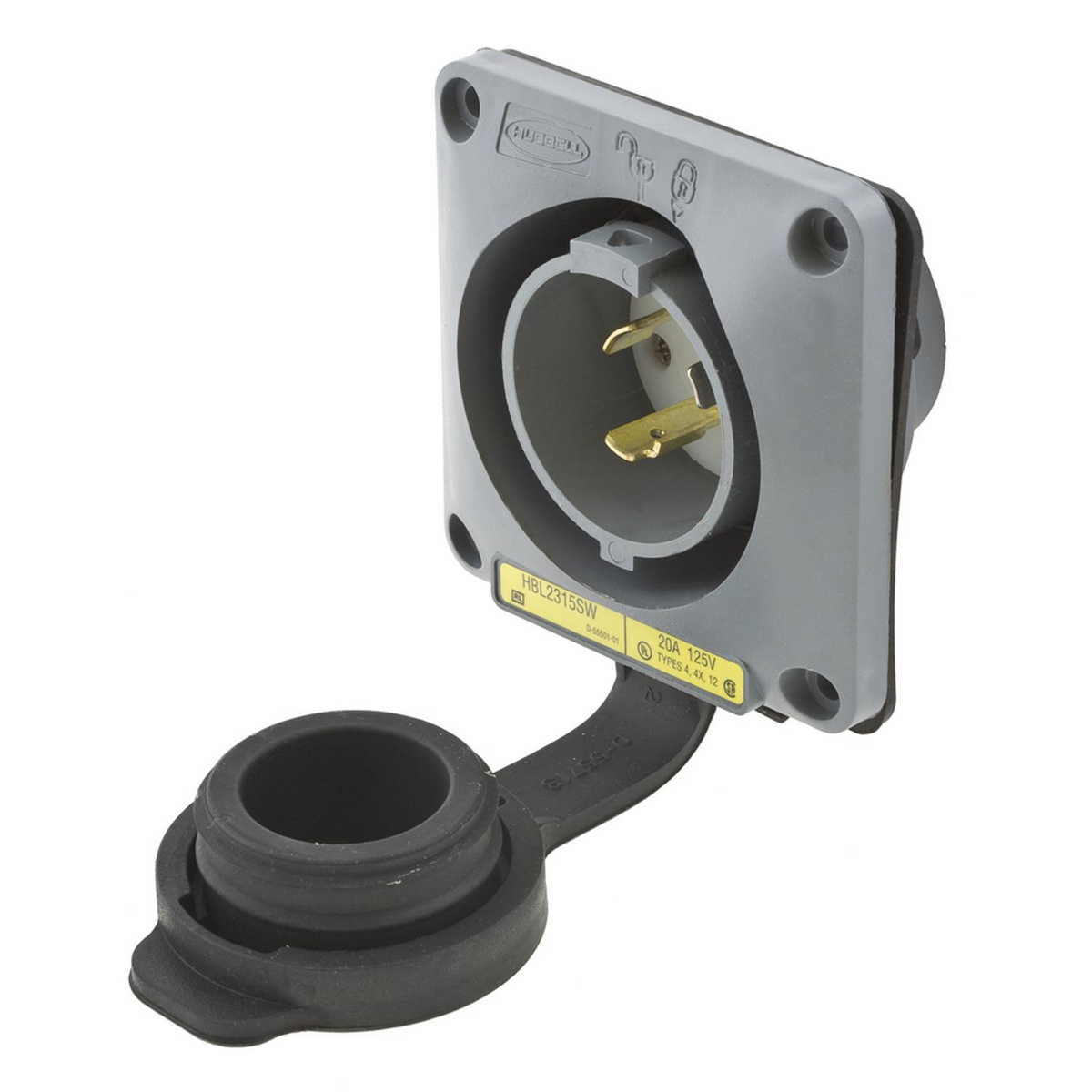

Hubbell Wiring Locking Flanged Inlets 20 A 125 V 2P3W L5-20P Twist-Lock® Safety-Shroud®
Mfg #:
HBL2315SW
BOR #:
648923
| Brand | Hubbell Wiring |
| NEMA Configuration | L5-20P |
| Wire Size | 16 - 8 AWG |
| Ground Type | Grounding |
| Mounting Type | Screw |
| Voltage | 125 V |
| Hazardous Rated | Not Hazardous Rated |
| Grade | Industrial |
| Device Configuration | Inlet |
| Wiring Method | Screw |
| Design | Flanged |
| Environmental Condition | Watertight |
| Series | Twist-Lock® Safety-Shroud® |
| Receptacle Style | Shrouded |
| Color | Gray/White |
| Amperage | 20 A |
| Device Control Style | Locking |
| Pole/Wire | 2P3W |
| NEMA Rating | NEMA 4/4X/12 |
| Number of Phases | 1 Phase |
| IP Rating | IP66 |
| Material | Thermoplastic |
| Insulation | Insulated |
| Number of Poles | 2 Pole |
| Catalog Full Asset Reference | Catalog |
|
| Catalog Page Asset Reference 1 | Catalog |
|
| Catalog Page Asset Reference 2 | Catalog |
|
| Installation Manuals Asset Reference | Installation and Instruction Manuals |
|
| Hubbell Wiring Specification Sheet | Specification Sheet |
|
