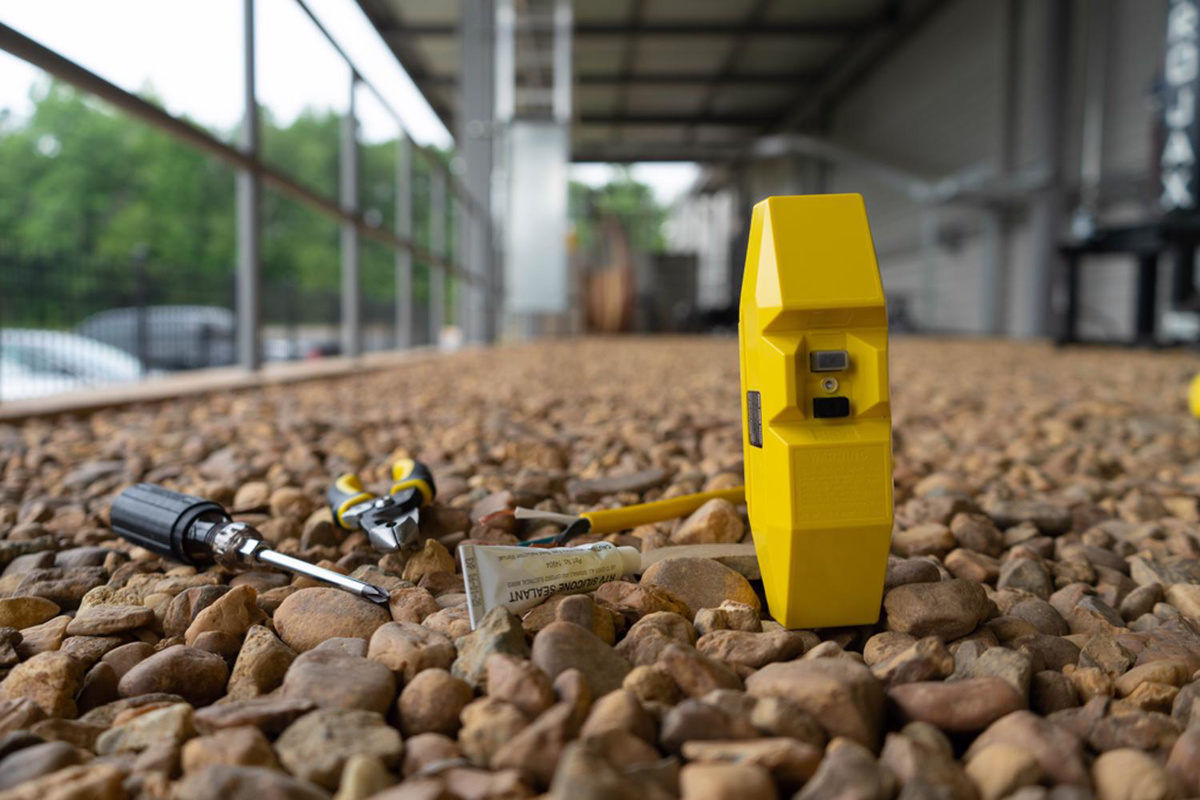

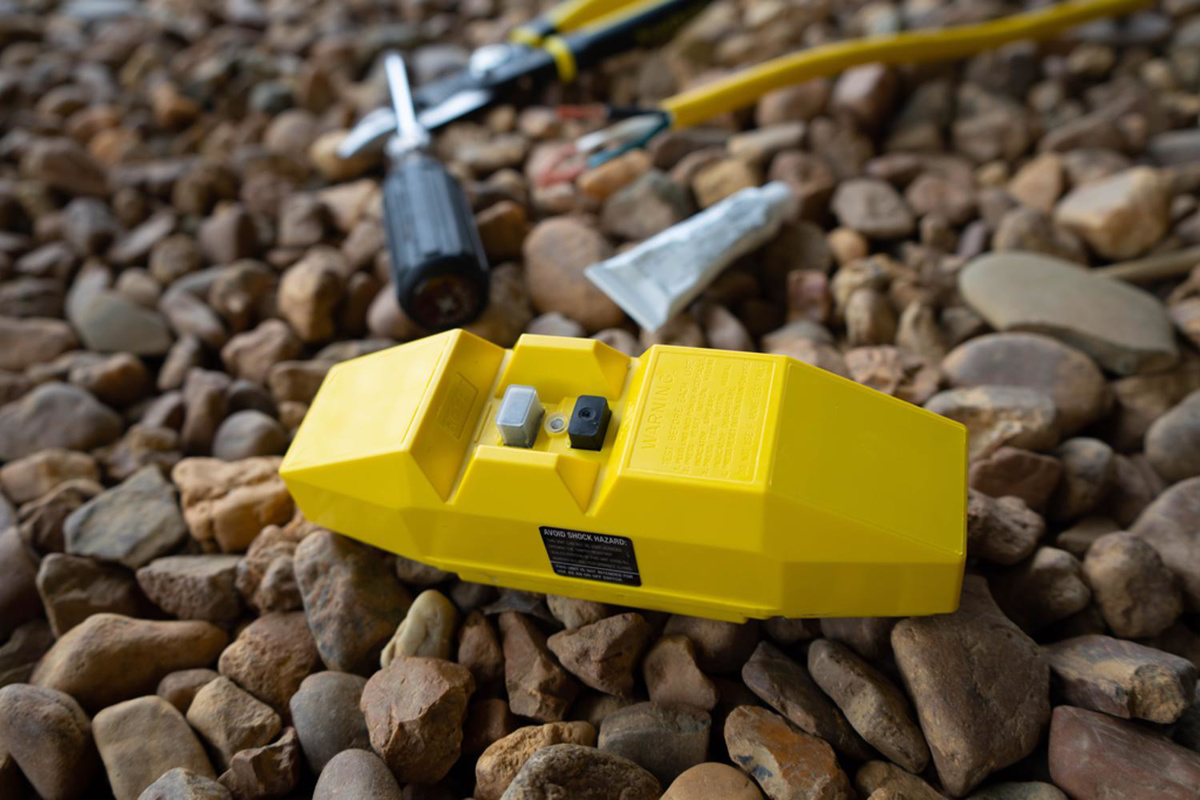

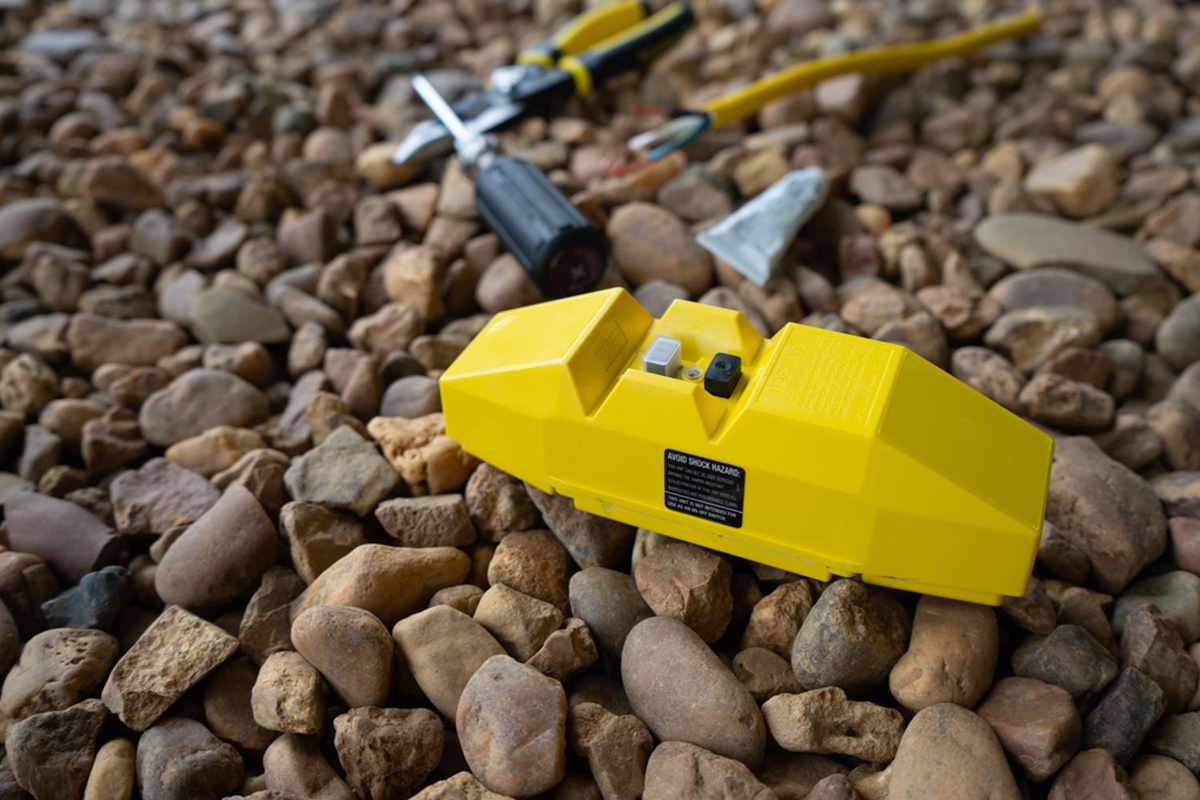

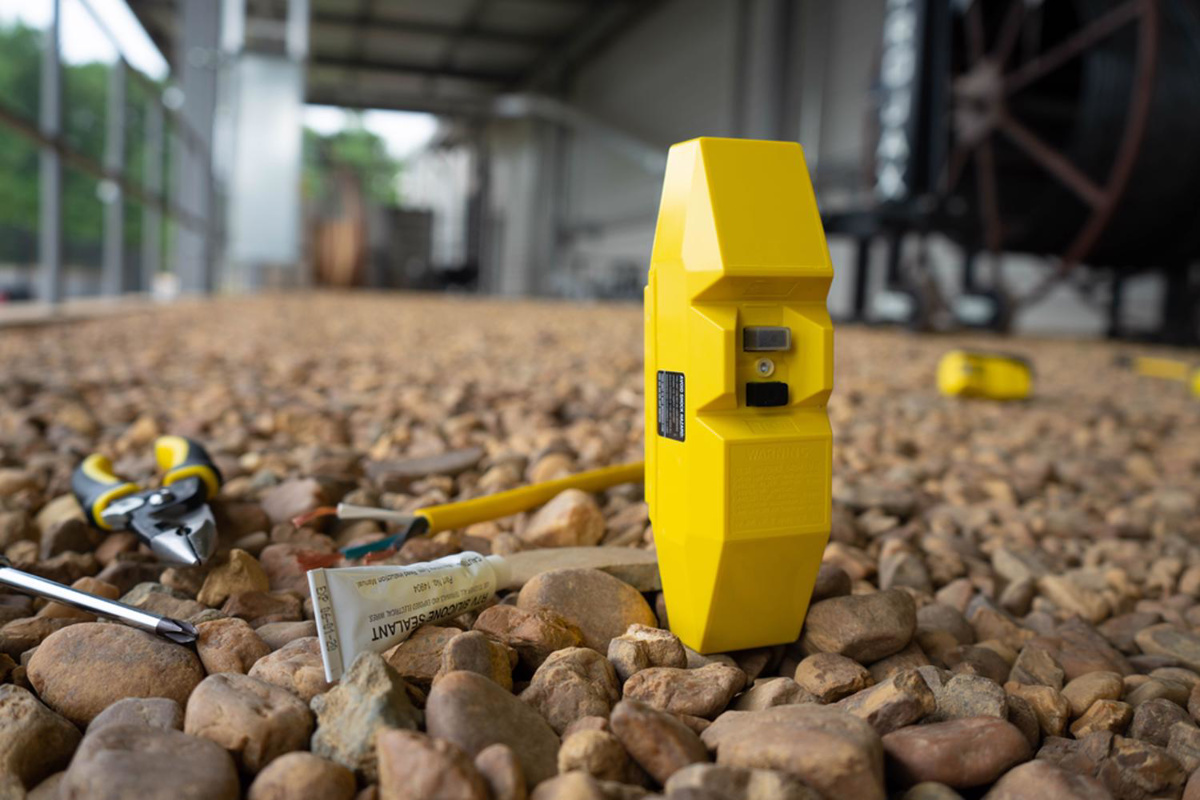

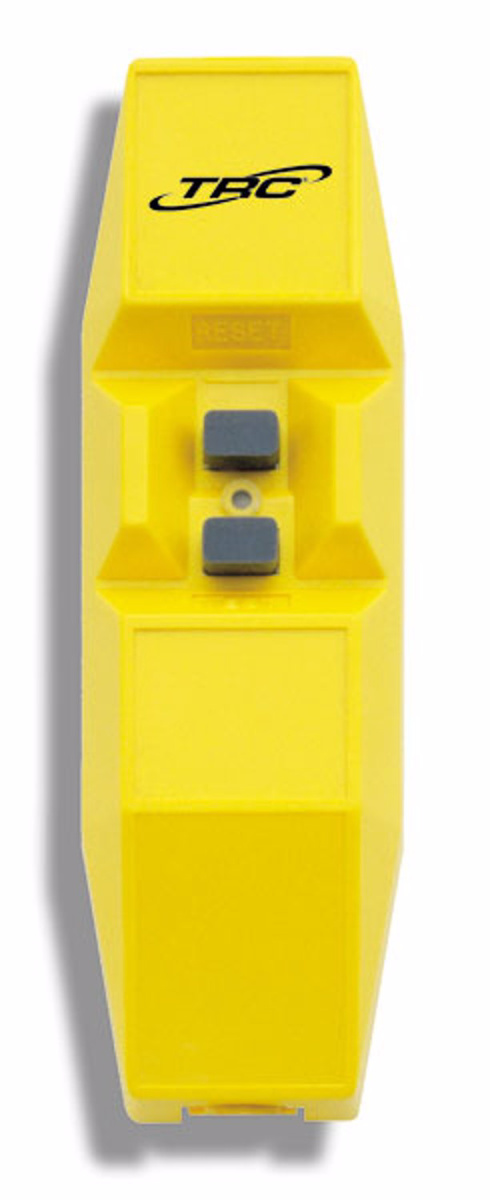

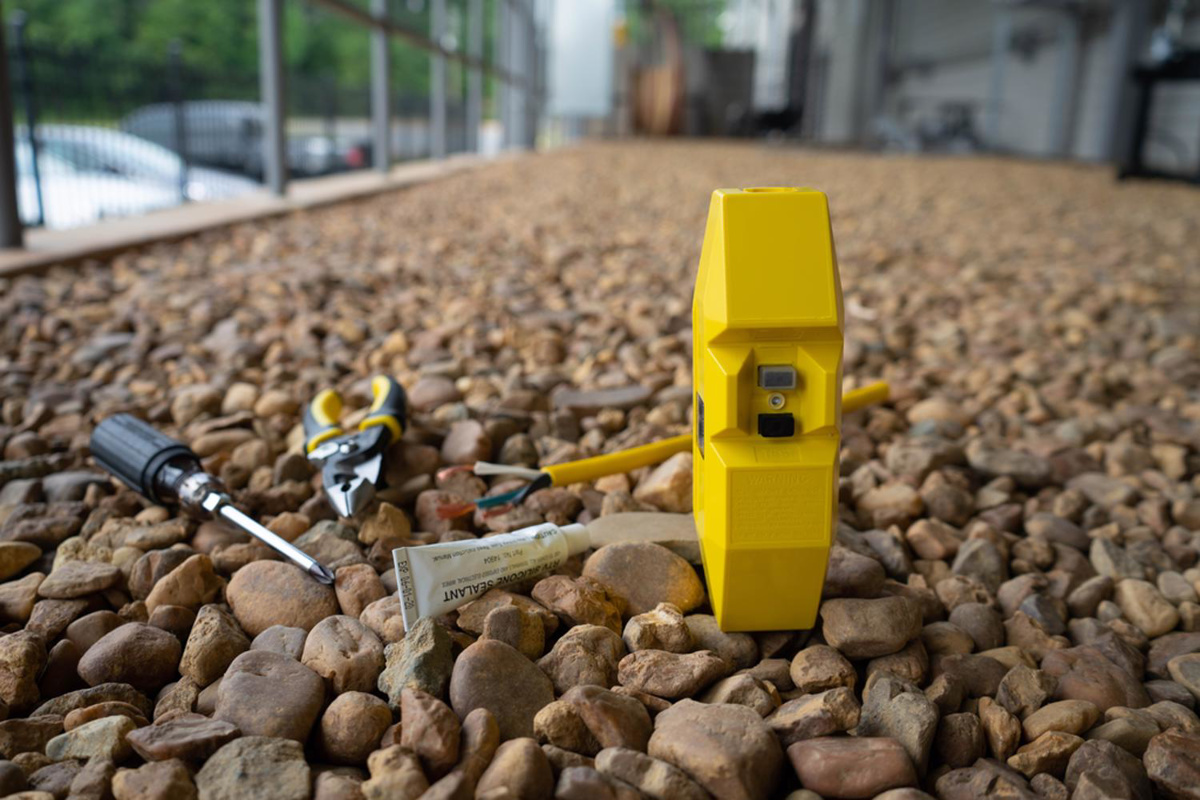

Southwire 25000016 Series GFCIs 20 A Yellow
High Power GFCI, Adjustable Heavy Duty High Power, 120/240 VAC, 20 A, 50/60 Hz, -35 to 66 deg C, 25 ms Response, Yellow, 6.4 in L x 2 in W x 1.8 in H
- Manual reset
- Dual Voltage
- 1500 VRMS to 1 min insulation voltage
- 3000 operations minimum endurance
- 4 Ohm typical grounded neutral
- 4-6 mA trip level
- Accepts 18 to 12 AWG(SJT)
- Allows compliance with NEC (NEC 2008) article 590.6 for "temporary installations" and OSHA regulation
- Effect of 10 A turn DC shock on ground fault trip 5% maximum trip level variation
- Ideal for existing equipment without GFCI protection and can be easily attached by connecting the GFCI in series with the supply cable 9 to 10 in from the plug end to provide GFCI protection
- Overload current six times rated current
- Power on indication is lighted indicator
- Radio frequency noise susceptibility operates within normal limits with 0.5 volts injected on power line 150 kHz - 230 MHz
- Rainproof rated, UL listed for outdoor use
- To prevent unmonitored equipment start up, manual reset is required after GFCI trip and power outage
- Voltage surge withstand 3kv ring wave test and 4kv/2kA surge immunity test
Brand | Southwire |
Number of Phases | 1 Phase |
Includes | Self-test |
Device Configuration | Decorator |
Voltage | 120 V |
Mounting Type | Portable |
Design | Blank, Decorator |
Color | Yellow |
Illumination | LED Indicator Light |
Amperage | 20 A |
Grade | Industrial |
Ground Type | Grounding |
Pole/Wire | 2P3W |
