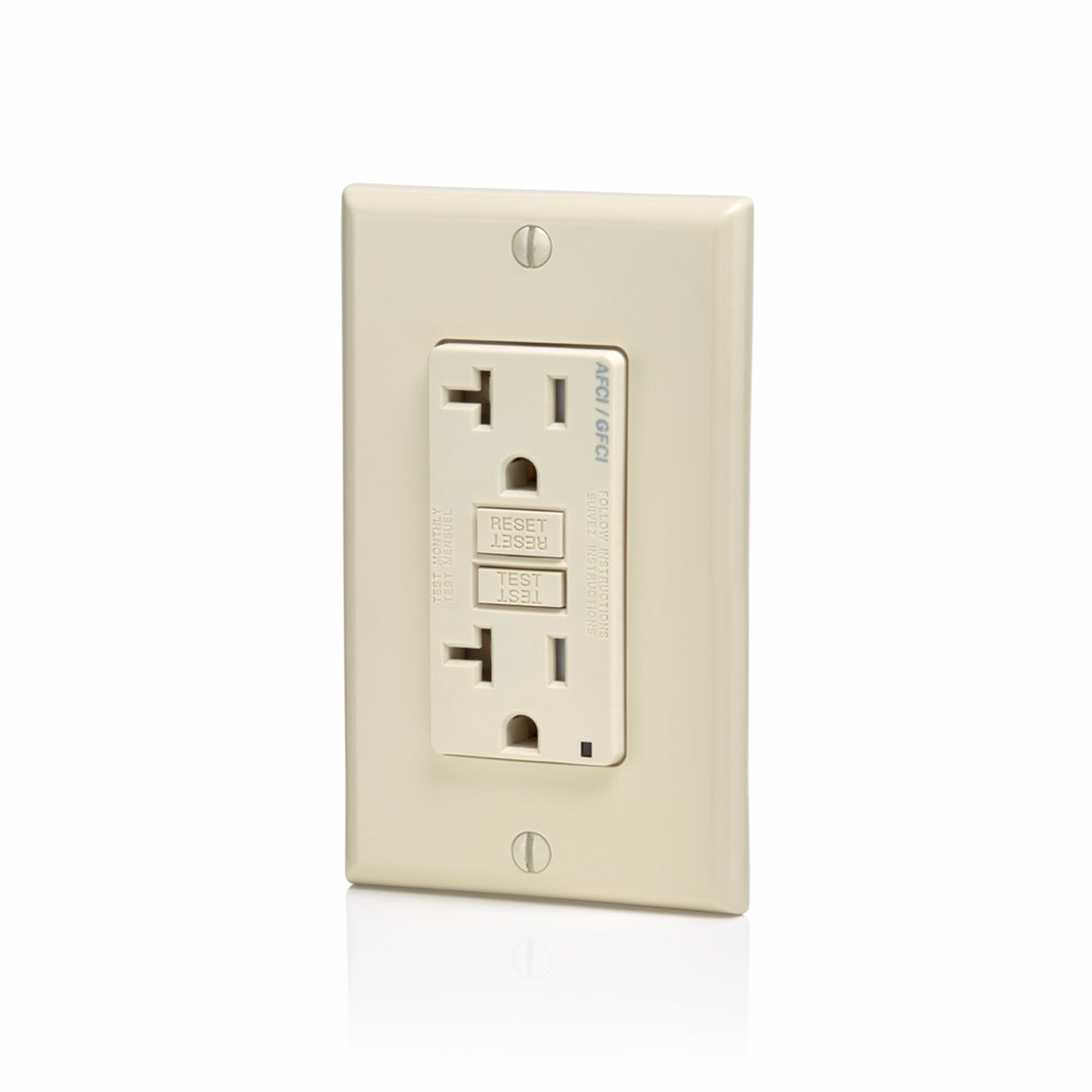

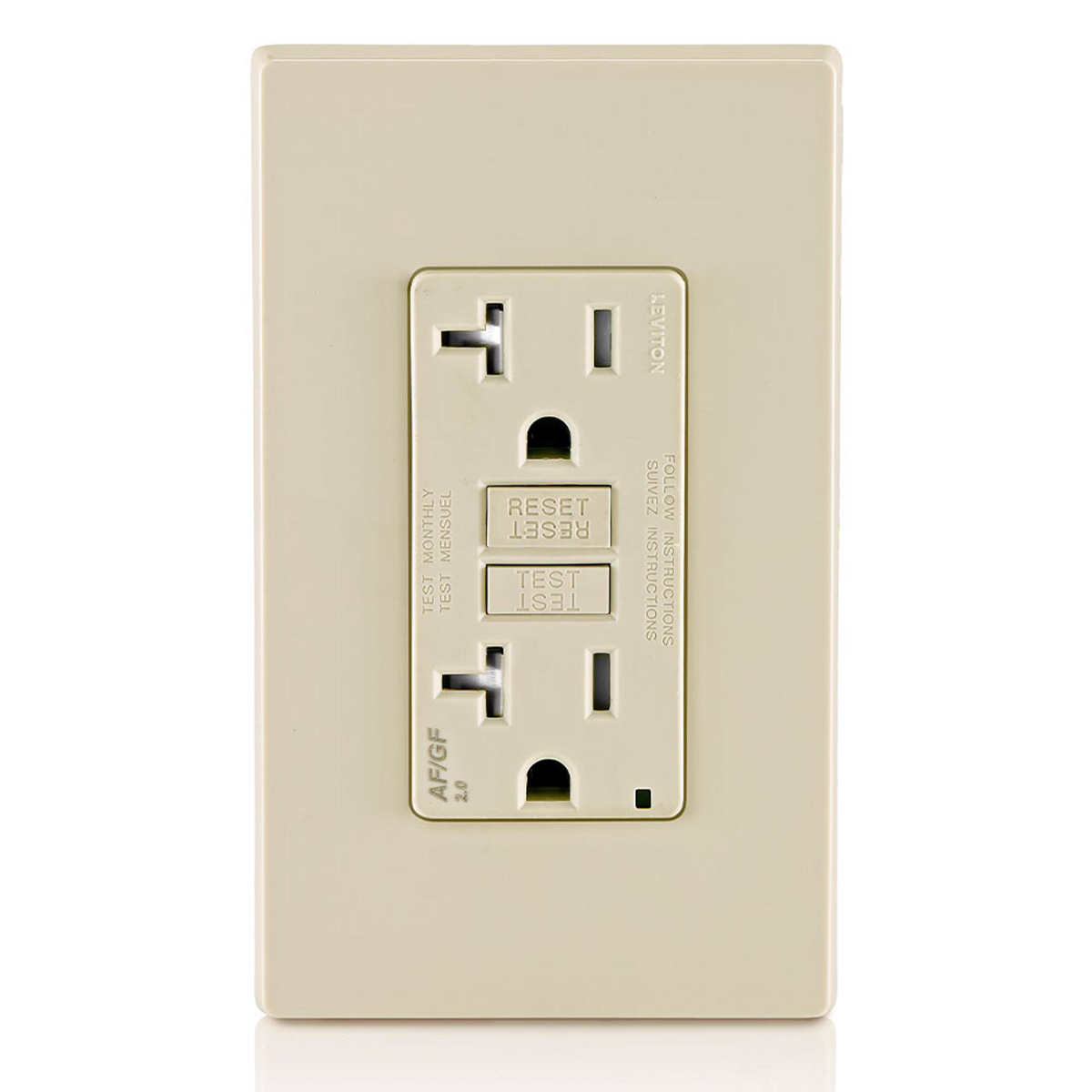

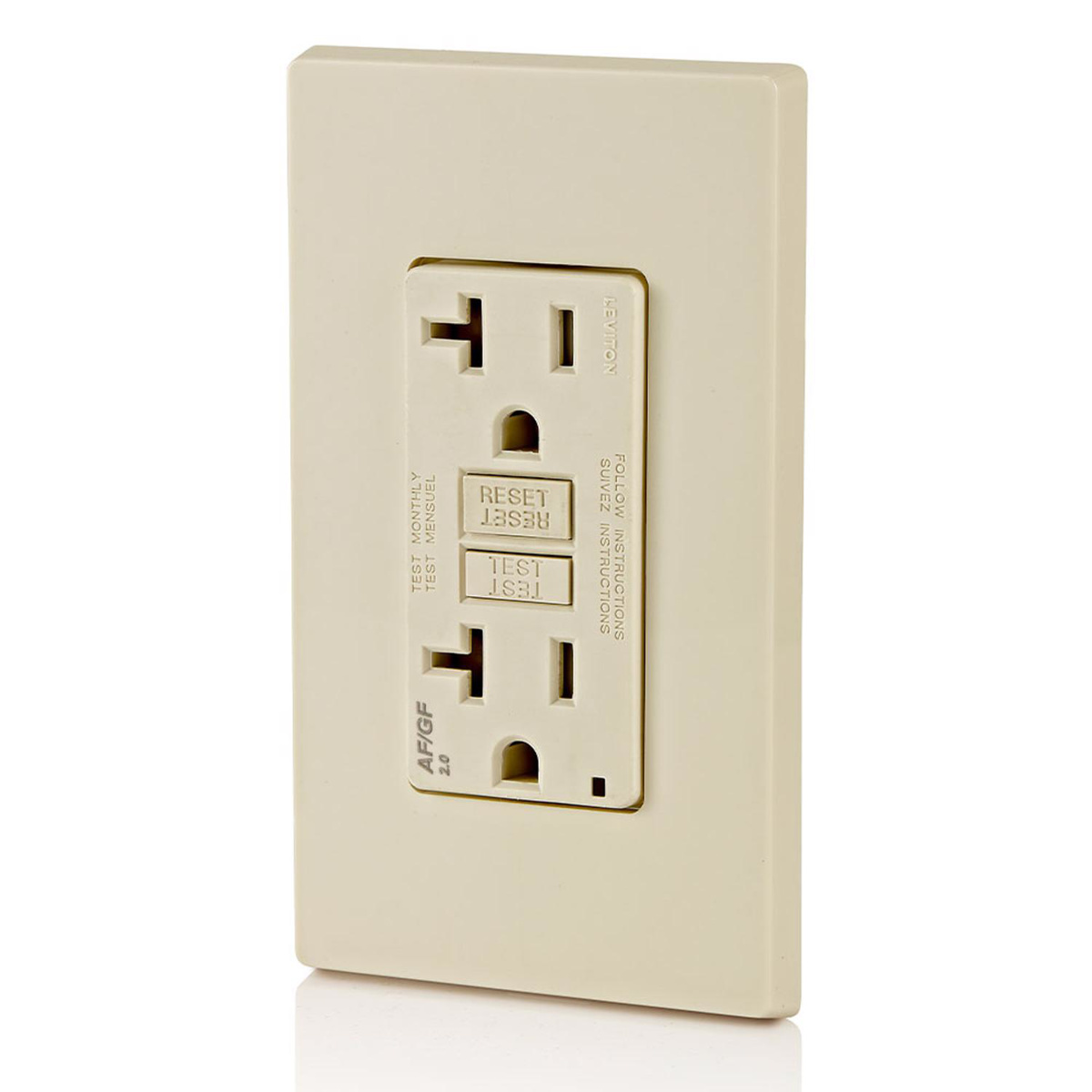

Leviton SmartlockPro® AGTR2 Series Duplex AFCI/GFCIs 20 A 5-20R Almond
Dual function AFCI/GFCI receptacles offer advanced protection for personal and home safety.
- Silver alloy contacts
- Bridge contact design provides individual sets of contacts for receptacle face and downstream receptacles
- Engineered to meet the latest UL standard for auto-monitoring (self-test)

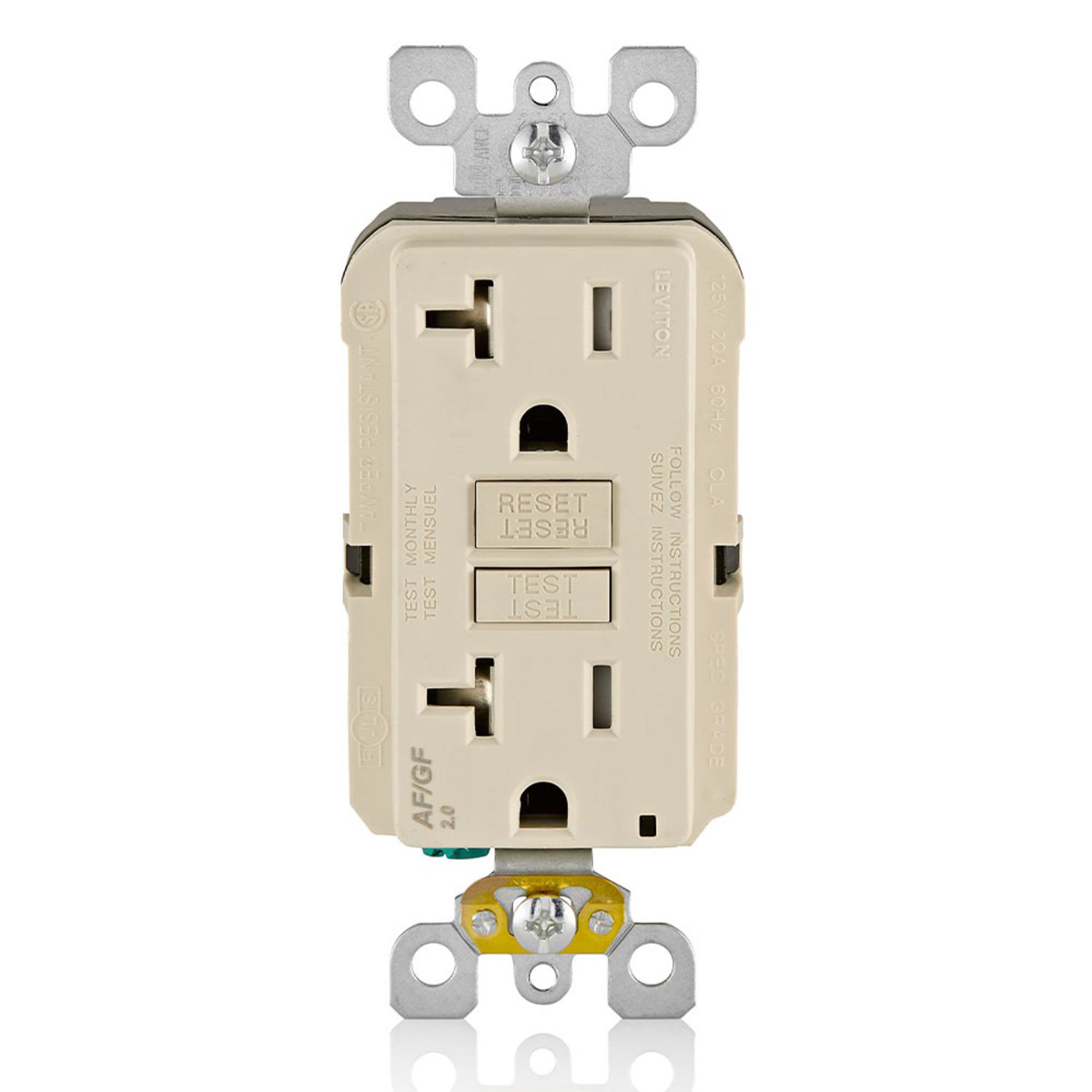

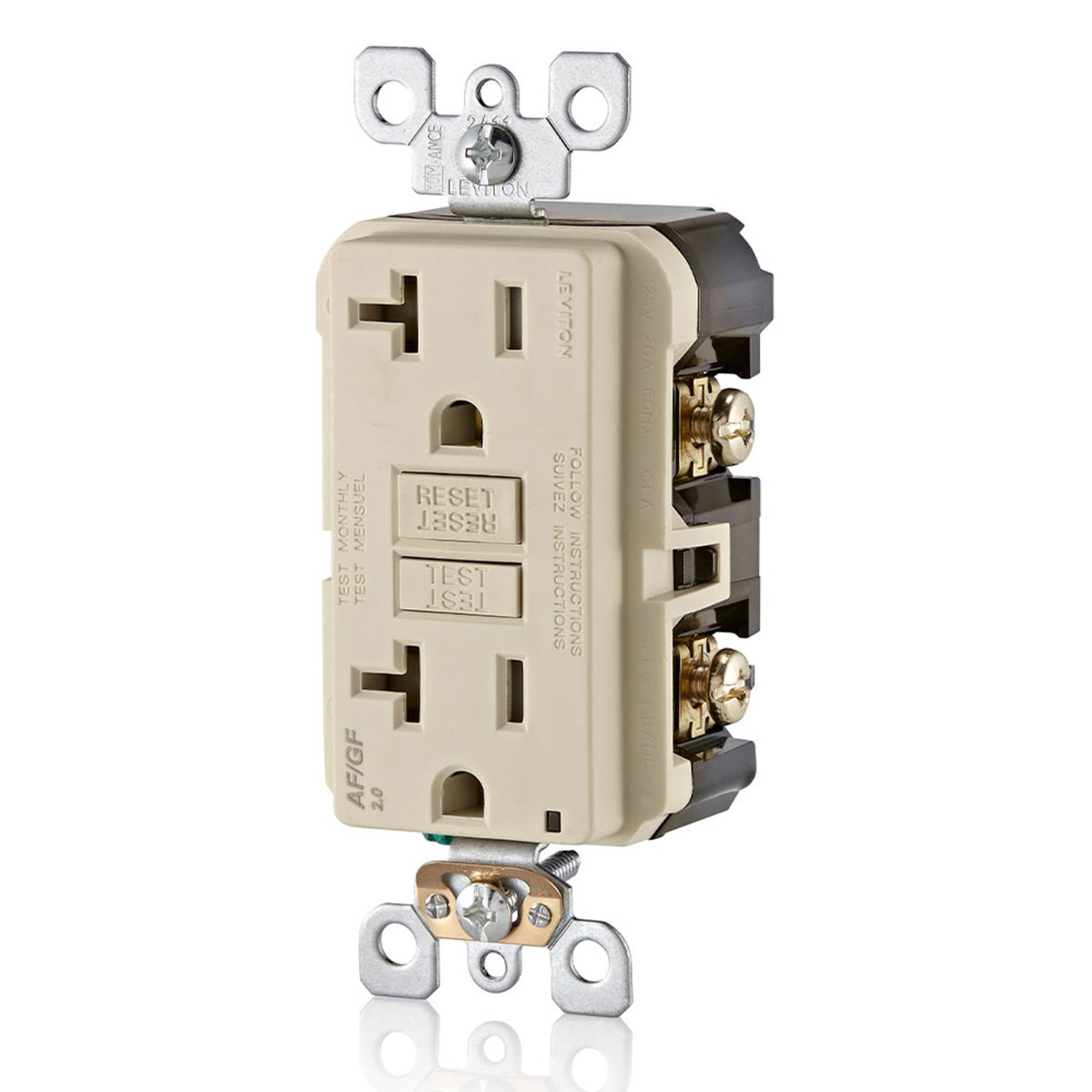

- Expanded wiring options with nine back-wire holes (two for each line and load connection plus one for ground with an internal clamp) for easy installation
- Impact-resistant thermoplastic cover and body for durability
- Improved immunity to high frequency noise reduces nuisance tripping
- One-piece T-design trip latch mechanism provides efficient operation
- Packed with coordinating wallplate for a finished look
- Patented Reset Lockout
- Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
- Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal for at-a-glance analysis
- Tamper-resistant to comply with the latest NEC requirements for tamper-resistant receptacles in residences and childcare facilities
- TEST and RESET buttons are readily accessible on the face of the device
- Trip threshold meets or exceeds UL requirements for tripping time on ground faults and on both series and parallel arcs
Brand | Leviton |
Pole/Wire | 2P3W |
Device Configuration | Decorator |
Mounting Type | Box Mounted |
Ground Type | Self-grounding |
Voltage | 125 V |
Includes | Wallplate |
NEMA Configuration | 5-20R |
Design | Decorator |
Color | Almond |
Wiring Method | Back and Side Wired |
Grade | Commercial |
Amperage | 20 A |
