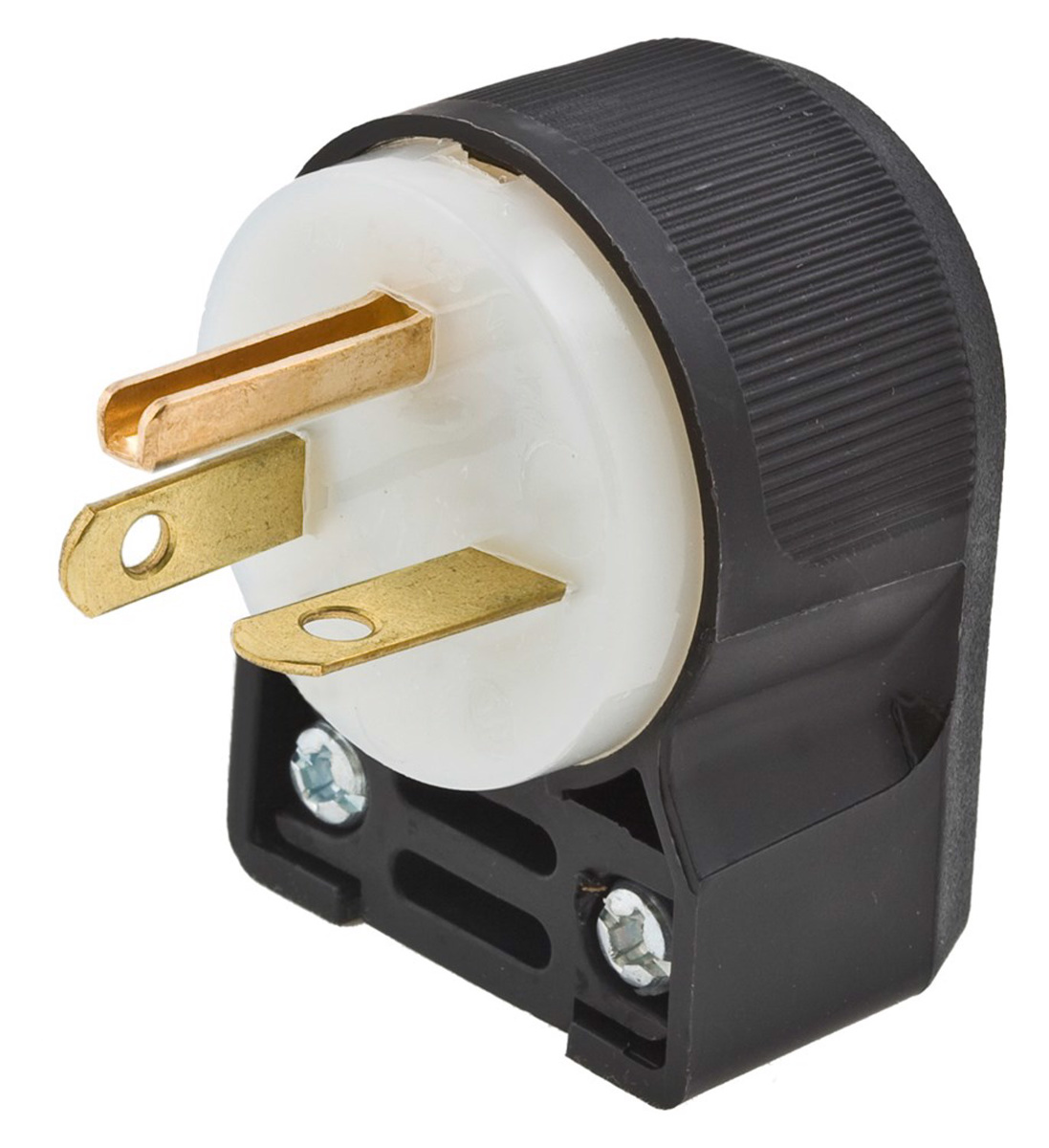

Hubbell Wiring Straight Blade 8 Position Angled Plugs 20 A 125 V 2P3W 6-20P Insulgrip® Dry Location
| Brand | Hubbell Wiring |
| Series | Insulgrip® |
| Hazardous Rated | Not Hazardous Rated |
| IP Rating | IP20 |
| Ground Type | Grounding |
| Wire Size | 18 - 10 AWG |
| NEMA Configuration | 6-20P |
| Length | 1.21 in |
| Voltage | 125 V |
| Mounting Type | Cord |
| Environmental Condition | Dry Location |
| Color | Black/White |
| Material | Nylon |
| Wiring Method | Screw |
| Amperage | 20 A |
| Grade | Commercial/Industrial |
| Pole/Wire | 2P3W |
| Plug/Connector Type | Plug |
| Plug/Connector Style | 8 Position |
| Number of Phases | 1 Phase |
| Cord Range | 0.325 - 0.655 in |
| Design | Angled |
| Device Configuration | Male |
| Insulation | Insulated |
| Hubbell Wiring Specification Sheet | Specification Sheet |
|
| Catalog Full Asset Reference | Catalog |
|
| Installation Manuals Asset Reference | Installation and Instruction Manuals |
|
| Catalog Page Asset Reference | Catalog |
|
