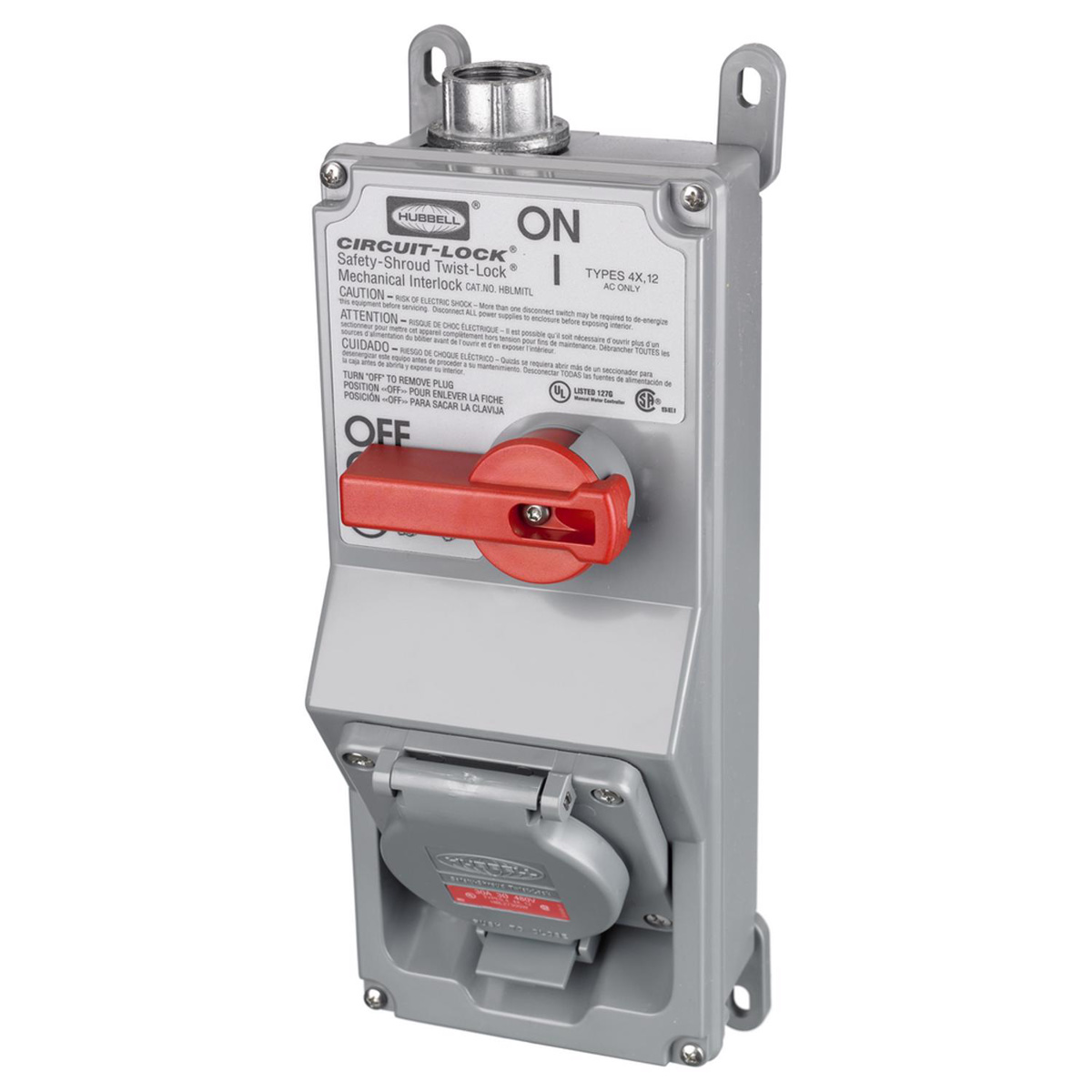

Hubbell Wiring Twist-Lock® Series Mechanical Interlock Devices 30 A NEMA 4, 4X, 12 600 V

PrimaryProductImage
PrimaryProductImage
PrimaryProductImage
PrimaryProductImage 2830_image_2.png PrimaryProductImage PrimaryProductImage
Logo
Mfg #: HBLMITL
BOR #: 670306
Looking for prices?
Sign In
Create an Account

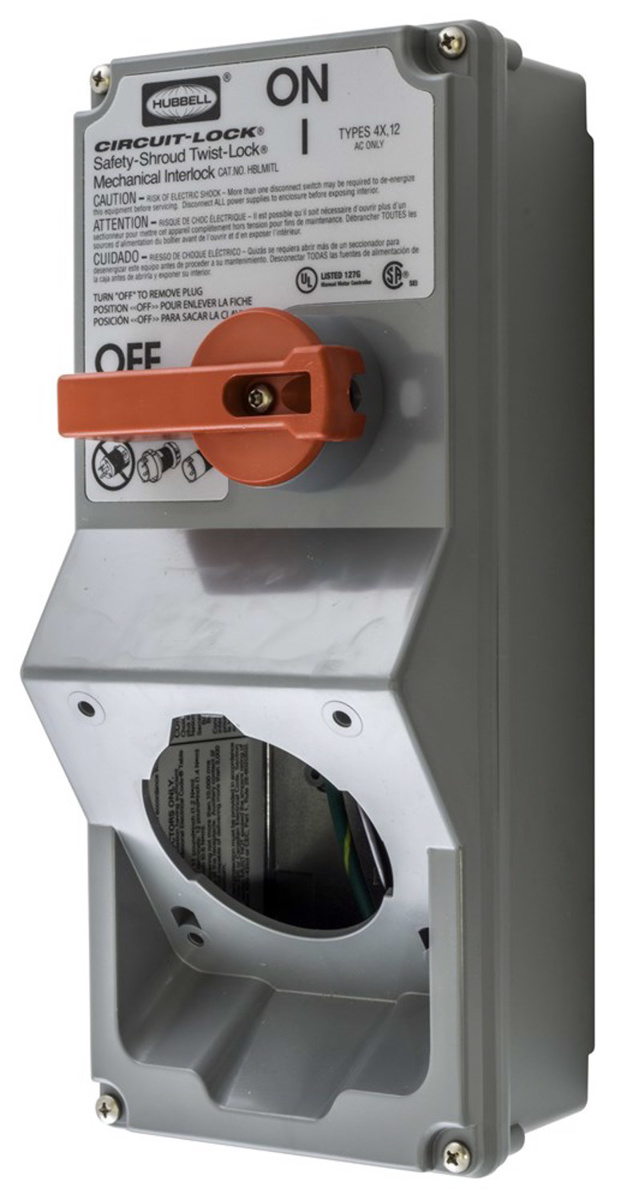

This unit is a complete enclosure ready to accept any 20 or 30A Watertight Safety-Shroud Twist-Lock Receptacle.

  • Lockable handle provides lockout protection for greater safety and complies with OSHA lockout requirements
  • Horsepower rated switch
  • Heavy-duty internal frame bonds conduit and all grounds and has a DIN rail to accommodate the switch
  • Moveable feet may be used in horizontal or vertical position
  • Enclosure back is designed for top, bottom or back feed options
  • Heavy-duty interlock linkage prevents make and break under load
See More
Product can be ordered only in multiples of
Specifications
Brand Hubbell Wiring
Wiring Method Screw
NEMA Rating NEMA 4, 4X, 12
Environmental Condition Watertight
Voltage 600 V
Design Switched
Grade Industrial
Color Gray
Amperage 30 A
Length 11.41 in
Mounting Type Wall
Plug/Connector Style Shrouded
Width 4.88 in
Related Documents
Catalog Page Asset Reference 1 Catalog
Installation Manuals Asset Reference Installation and Instruction Manuals
Catalog Page Asset Reference 3 Catalog
Catalog Full Asset Reference Catalog
Catalog Page Asset Reference 2 Catalog
Brochure Asset Reference Brochure
Hubbell Wiring Specification Sheet Specification Sheet
