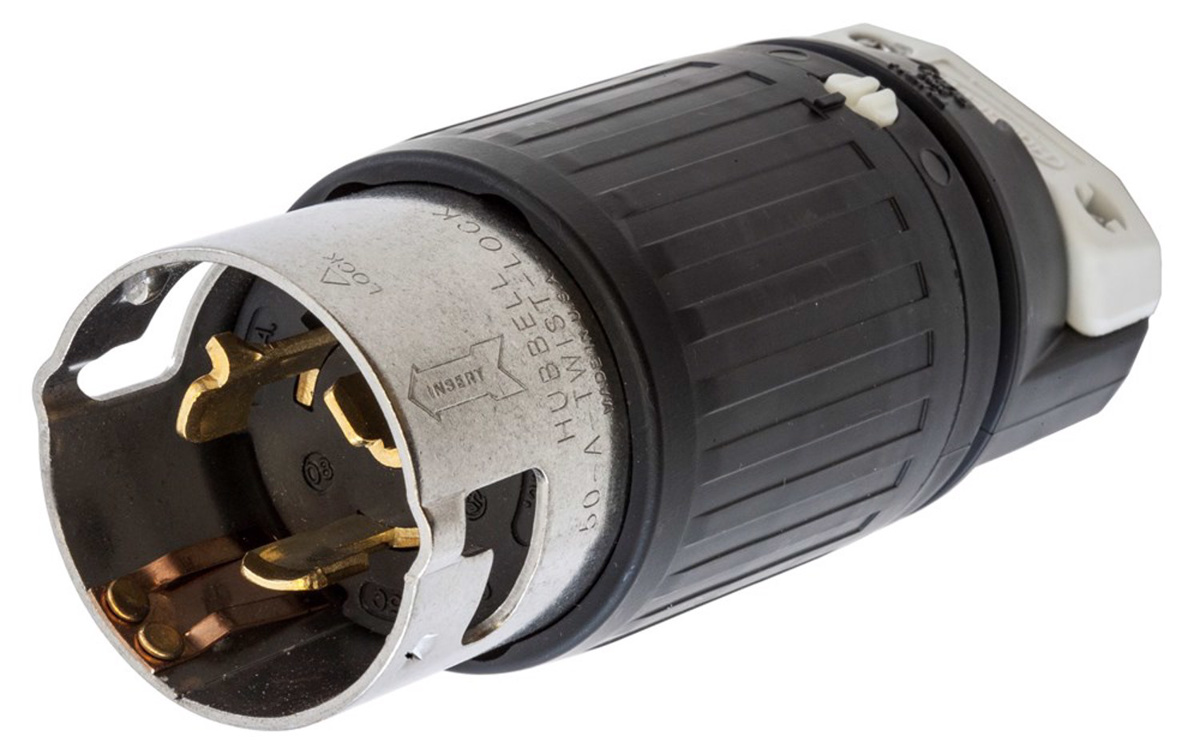

Hubbell Wiring Straight Locking Plugs 50 A 125/250 V 3P4W Non-NEMA Insulated Twist-Lock® Insulgrip® Dry Location
Mfg #:
CS6365C
BOR #:
137632
| Brand | Hubbell Wiring |
| Device Control Style | Locking |
| Ground Type | Grounding |
| Pole/Wire | 3P4W |
| NEMA Configuration | Non-NEMA |
| Plug/Connector Style | Shrouded |
| Design | Straight |
| Voltage | 125/250 V |
| IP Rating | IP20 |
| Color | Black/White |
| Insulation | Insulated |
| Device Configuration | Male |

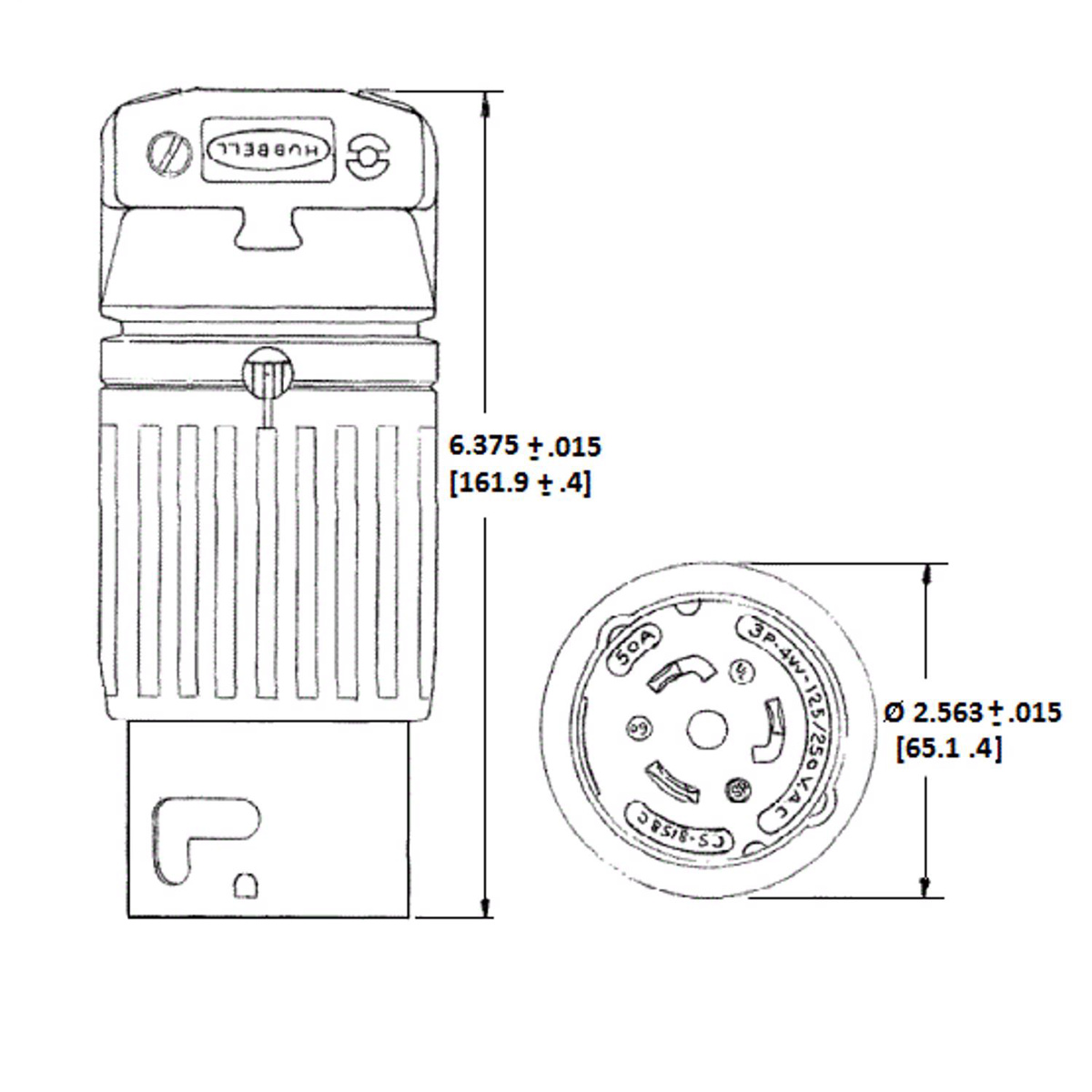

| Length | 6-3/8 in |
| Wiring Method | Screw |
| Environmental Condition | Dry Location |
| Number of Phases | 1 Phase |
| Amperage | 50 A |
| Wire Size | 10 - 6 AWG |
| Mounting Type | Cord |
| Material | Composite |
| Grade | Industrial |
| Series | Twist-Lock® Insulgrip® |
| Plug/Connector Type | Plug |
| Catalog Full Asset Reference | Catalog |
|
| Hubbell Wiring Specification Sheet | Specification Sheet |
|
| Catalog Page Asset Reference | Catalog |
|
| Installation Manuals Asset Reference | Installation and Instruction Manuals |
|
