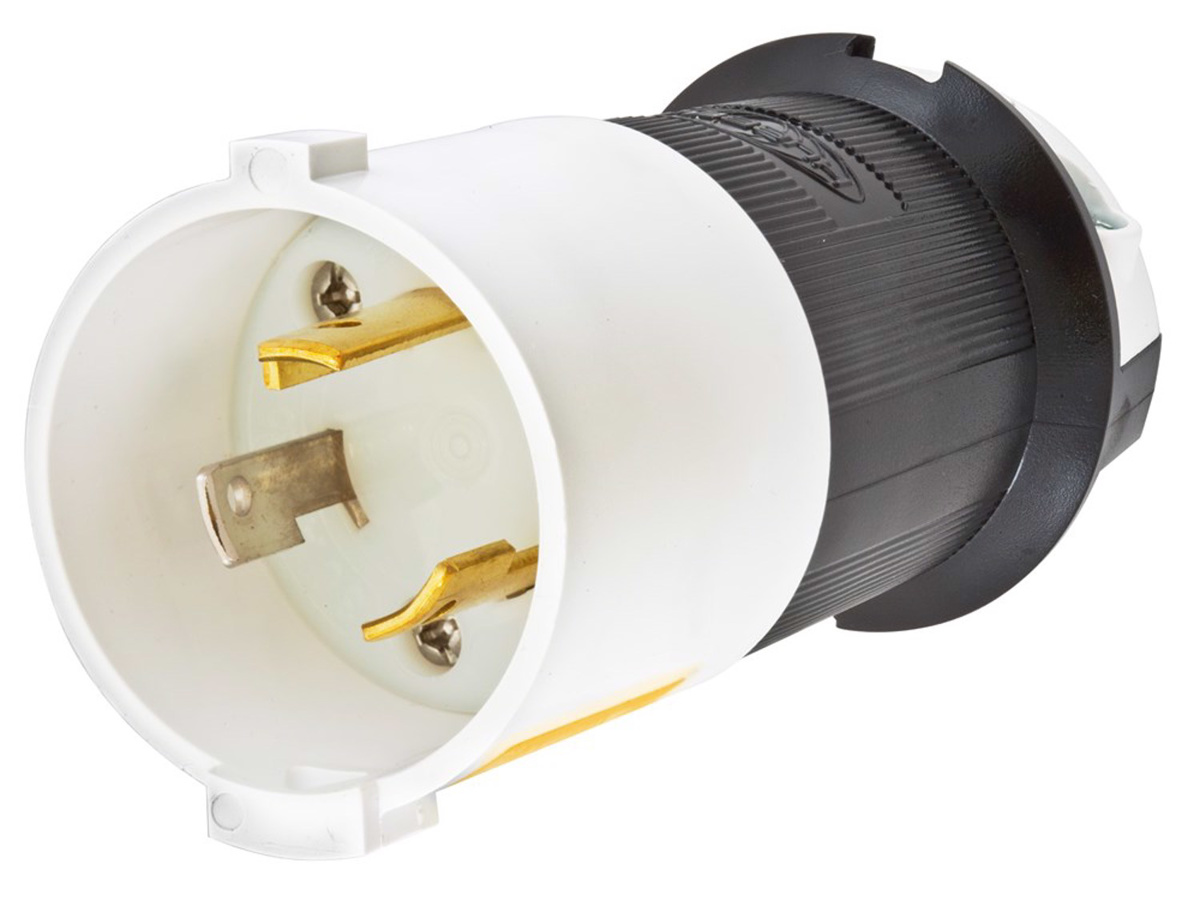

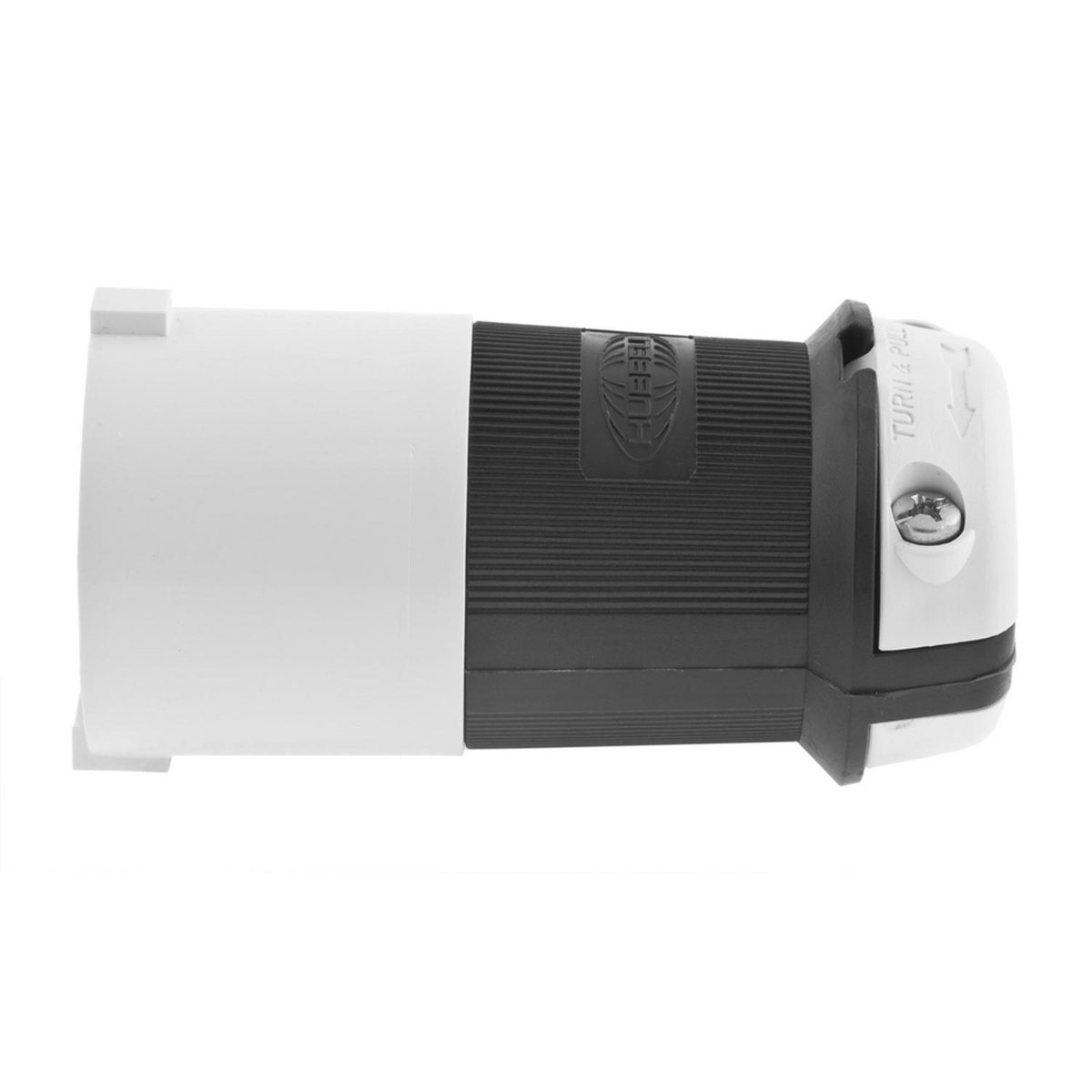

Hubbell Wiring Straight Locking Plugs 30 A 125 V 2P3W L5-30P Uninsulated Twist-Lock® Safety-Shroud® Dry Location
Mfg #:
HBL2611S
BOR #:
649058
| Brand | Hubbell Wiring |
| Device Control Style | Locking |
| Ground Type | Grounding |
| Pole/Wire | 2P3W |
| NEMA Configuration | L5-30P |
| Plug/Connector Style | Shrouded |
| Design | Straight |
| Voltage | 125 V |
| IP Rating | IP20 |
| Color | Black/White |
| Insulation | Uninsulated |
| Device Configuration | Male |
| Length | 4.21 in |
| Wiring Method | Screw |
| Environmental Condition | Dry Location |
| Number of Phases | 1 Phase |
| Amperage | 30 A |
| Wire Size | 16 - 8 AWG |
| Mounting Type | Cord |
| Material | Composite |
| Grade | Industrial |
| Series | Twist-Lock® Safety-Shroud® |
| Plug/Connector Type | Plug |
| Hubbell Wiring Specification Sheet | Specification Sheet |
|
| Catalog Full Asset Reference | Catalog |
|
| Catalog Page Asset Reference | Catalog |
|
| Installation Manuals Asset Reference | Installation and Instruction Manuals |
|
