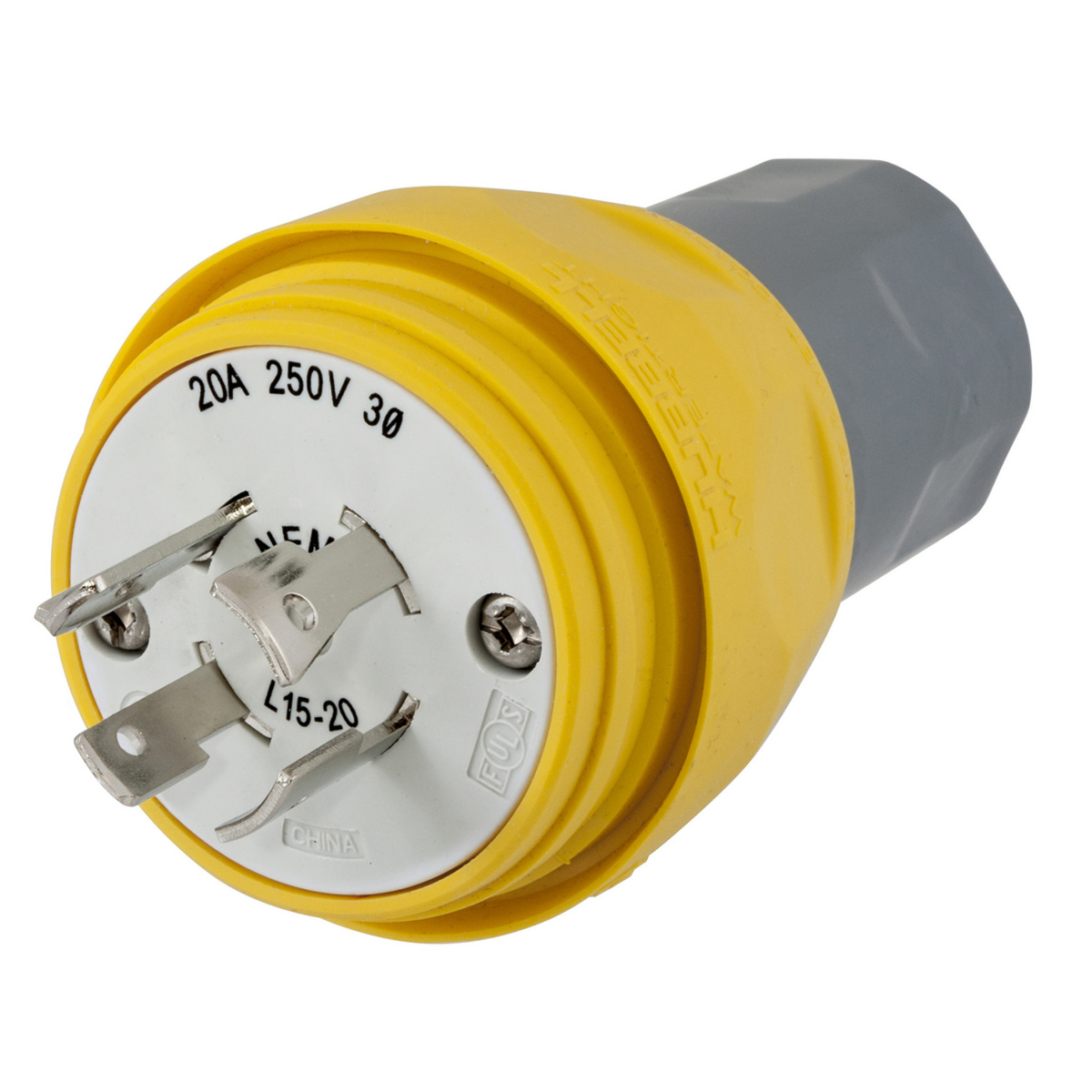

Hubbell Wiring Straight Locking Plugs 20 A 250 V 3P4W L15-20P Uninsulated Twist-Lock® Watertight
Mfg #:
HBL26W75
BOR #:
3221308
| Brand | Hubbell Wiring |
| Device Control Style | Locking |
| Ground Type | Non-grounding |
| Pole/Wire | 3P4W |

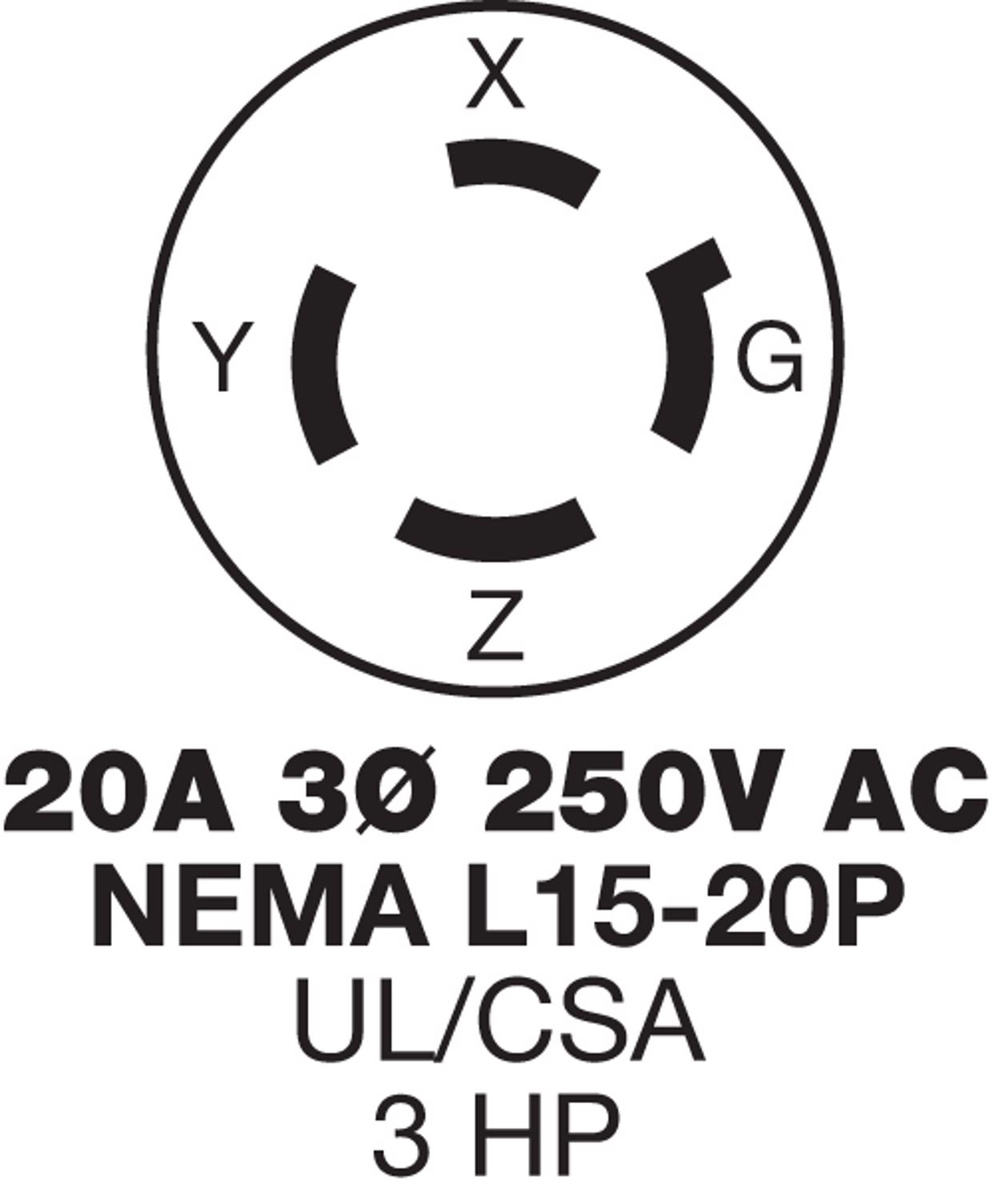

| NEMA Configuration | L15-20P |
| Plug/Connector Style | Non-shrouded |
| Design | Straight |
| Voltage | 250 V |
| IP Rating | IP69k |
| Color | Yellow |
| Insulation | Uninsulated |
| Device Configuration | Male |

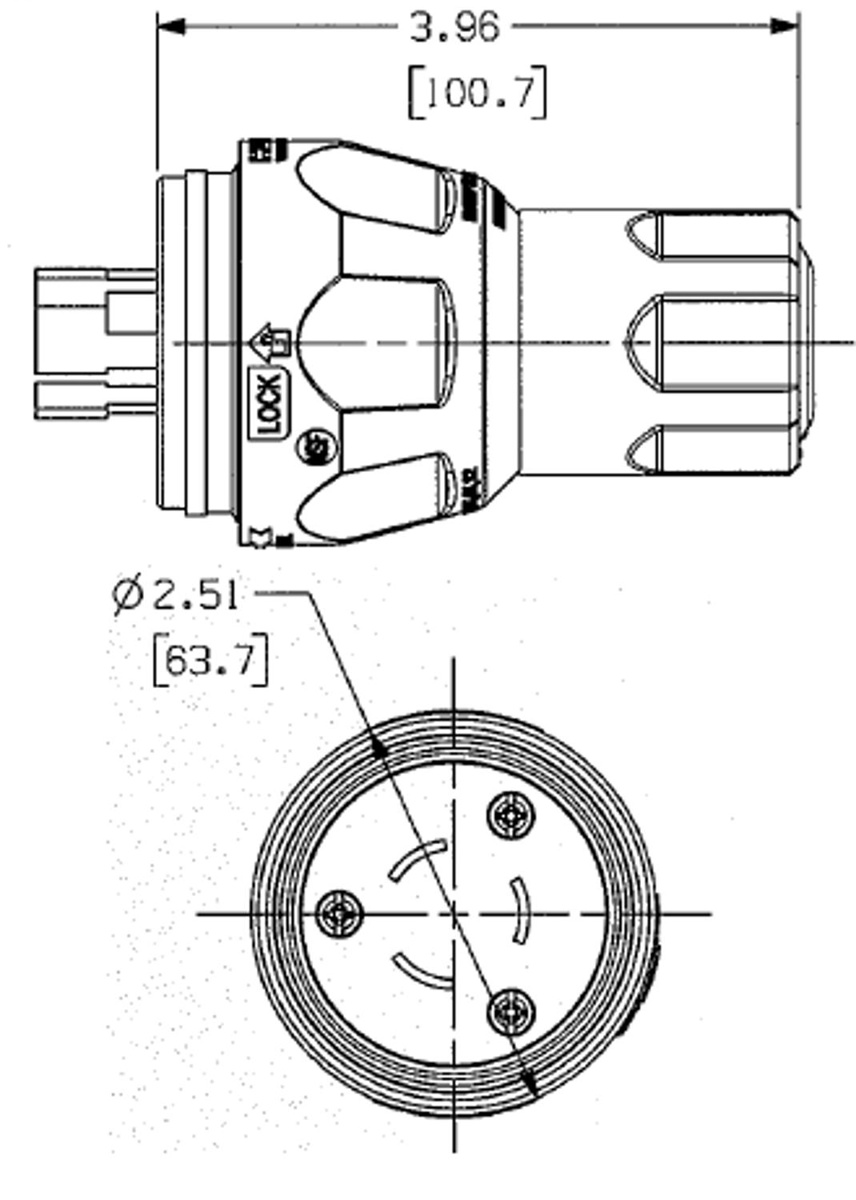

| Length | 3.96 in |
| Wiring Method | Screw |
| Environmental Condition | Watertight |
| NEMA Rating | NEMA 4/4X/6/6P/12 |
| Number of Phases | 3 Phase |
| Amperage | 20 A |
| Wire Size | 18 - 10 AWG |
| Mounting Type | Cord |
| Material | Composite |
| Grade | Industrial |
| Series | Twist-Lock® |
| Plug/Connector Type | Plug |
| Catalog Full Asset Reference | Catalog |
|
| Catalog Page Asset Reference | Catalog |
|
| Hubbell Wiring Specification Sheet | Specification Sheet |
|
Watertight Plugs and Connectors
