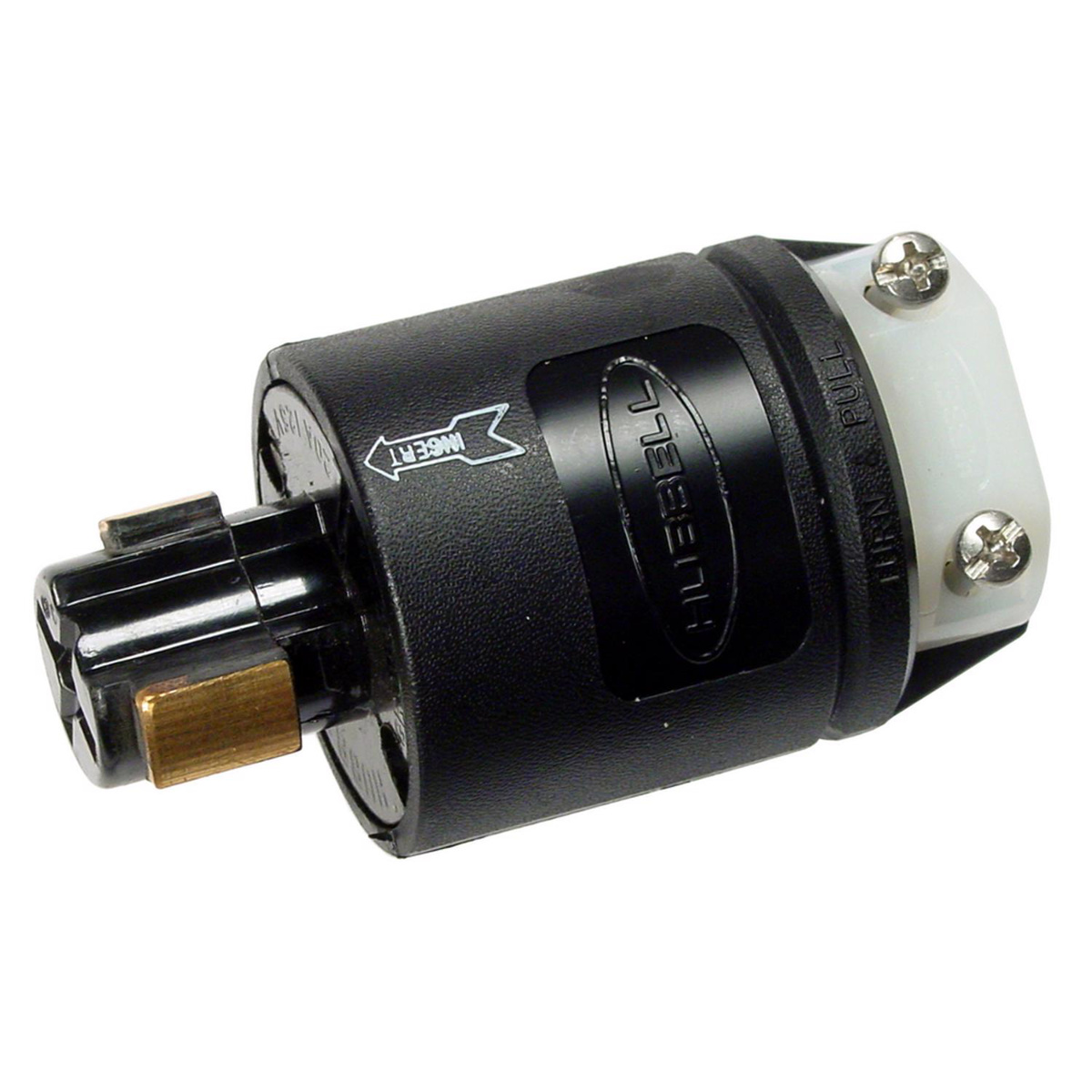

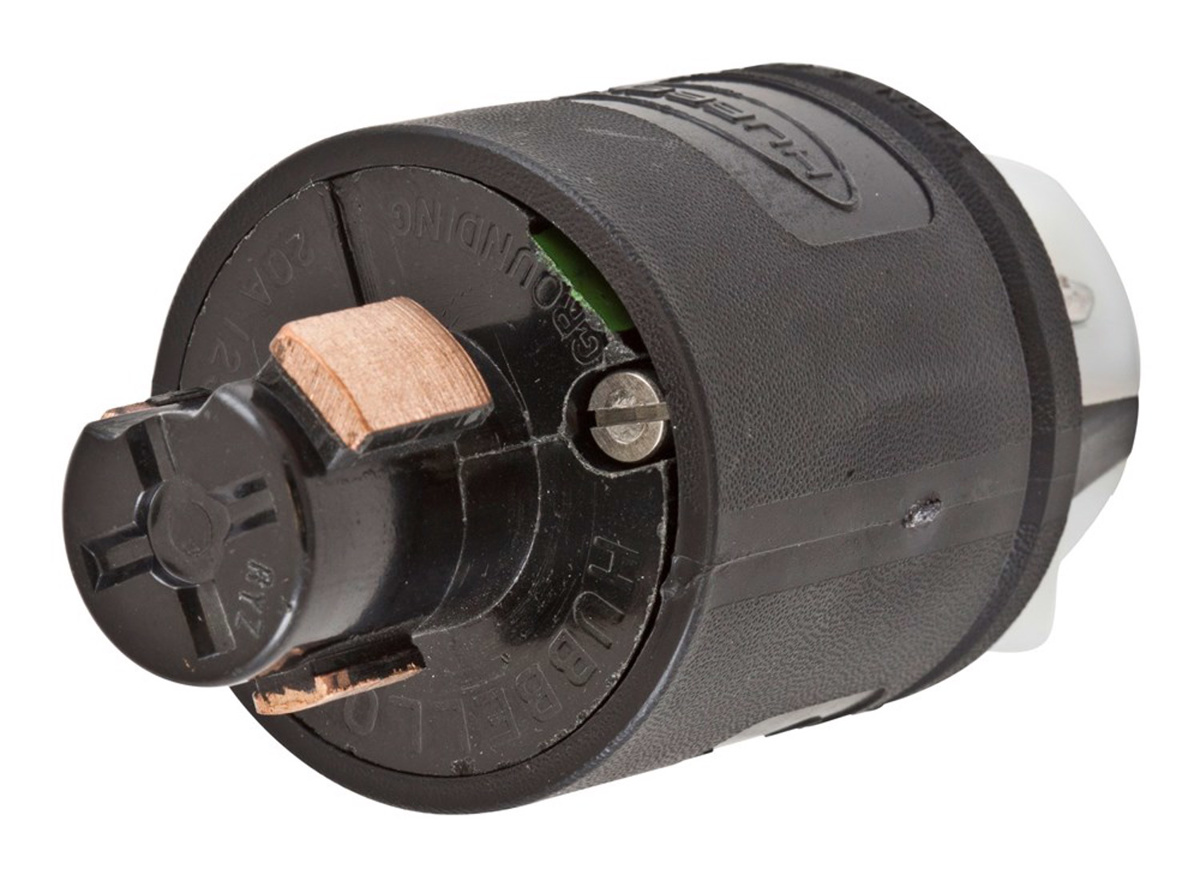

Hubbell Wiring Straight Locking Plugs 20 A 125 V 2P3W Non-NEMA Insulated Hubbellock® Twist-Lock® Dry Location
Mfg #:
HBL23035B
BOR #:
604197
| Brand | Hubbell Wiring |
| Device Control Style | Locking |
| Ground Type | Grounding |
| Pole/Wire | 2P3W |
| NEMA Configuration | Non-NEMA |
| Plug/Connector Style | Non-shrouded |
| Design | Straight |
| Voltage | 125 V |
| IP Rating | IP30 |
| Color | Black/White |
| Insulation | Insulated |
| Device Configuration | Male |
| Length | 3.21 in |
| Wiring Method | Screw |
| Environmental Condition | Dry Location |
| Amperage | 20 A |
| Wire Size | 16 - 12 AWG |
| Mounting Type | Cord |
| Material | Composite |
| Grade | Industrial |
| Series | Hubbellock® Twist-Lock® |
| Plug/Connector Type | Plug |
| Hubbell Wiring Specification Sheet | Specification Sheet |
|
| Catalog Page Asset Reference 1 | Catalog |
|
| Catalog Page Asset Reference 2 | Catalog |
|
| Catalog Full Asset Reference | Catalog |
|
| Installation Manuals Asset Reference | Installation and Instruction Manuals |
|
