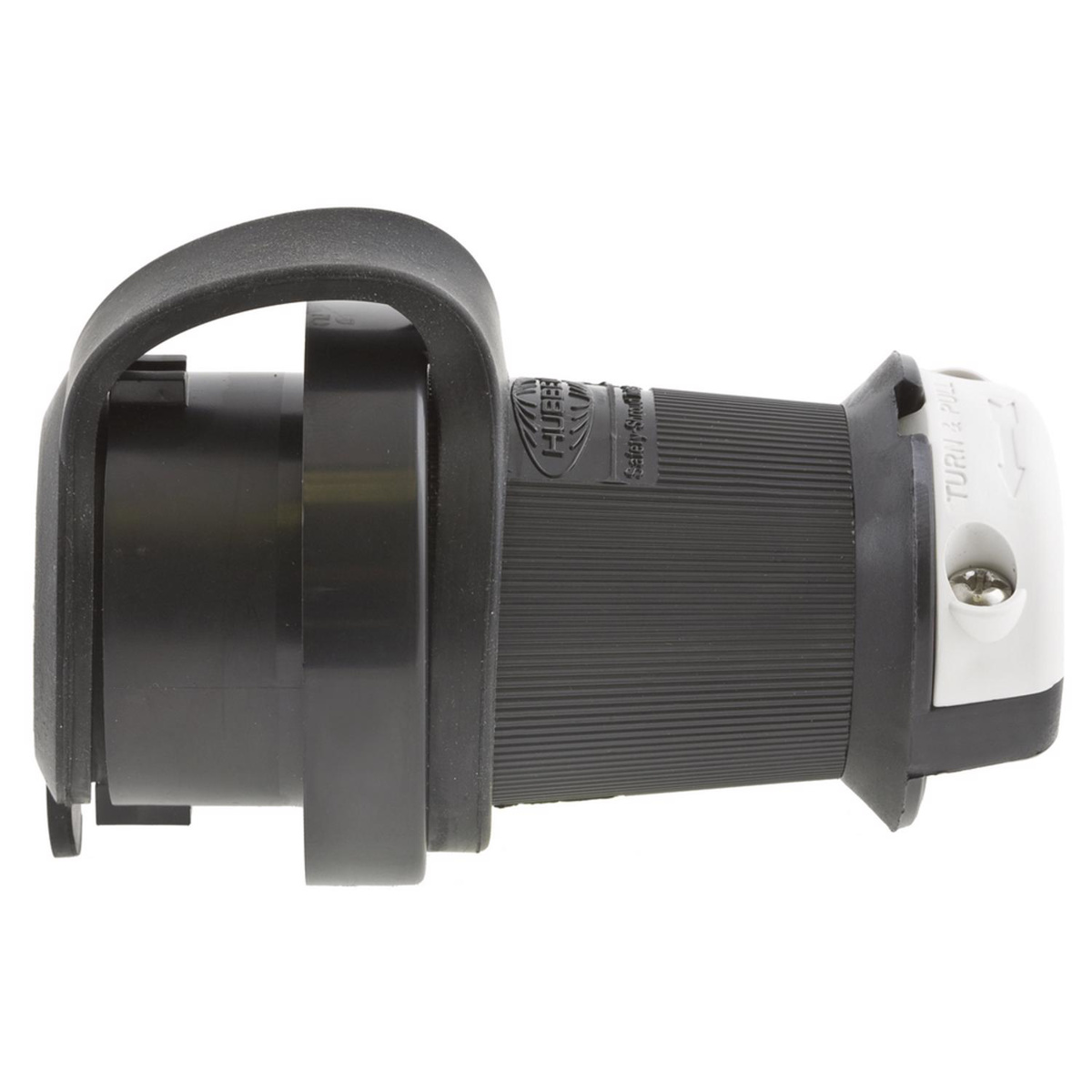

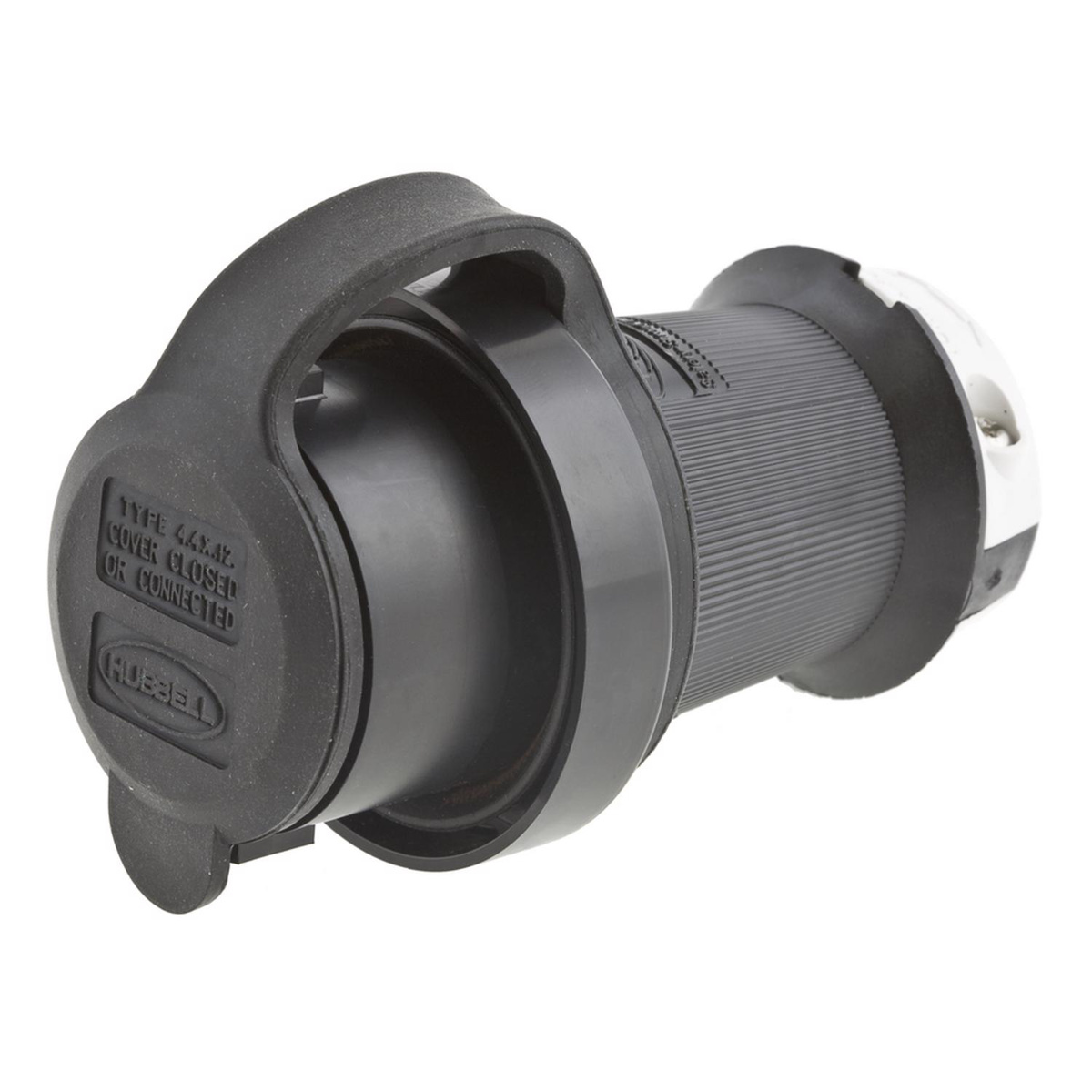

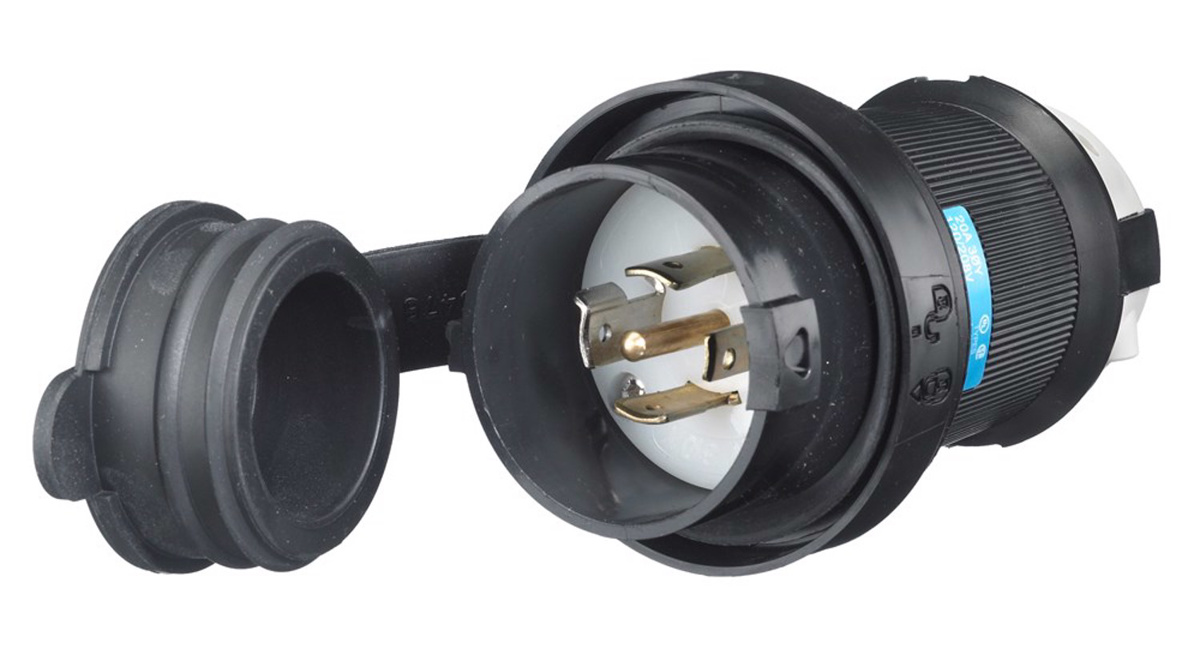

Hubbell Wiring Straight Locking Plugs 20 A 120/208 V 4P5W L21-20P Uninsulated Twist-Lock® Safety-Shroud® Watertight
Mfg #:
HBL2511SW
BOR #:
648716
| Brand | Hubbell Wiring |
| Device Control Style | Locking |
| Ground Type | Grounding |
| Pole/Wire | 4P5W |
| NEMA Configuration | L21-20P |
| Plug/Connector Style | Shrouded |
| Design | Straight |
| Voltage | 120/208 V |
| IP Rating | IP66 |
| Color | Black/White |
| Insulation | Uninsulated |
| Device Configuration | Male |
| Length | 4.4 in |
| Wiring Method | Screw |
| Environmental Condition | Watertight |
| NEMA Rating | NEMA 4/4X/12 |
| Number of Phases | 3 Phase |
| Amperage | 20 A |
| Wire Size | 16 - 8 AWG |
| Mounting Type | Cord |
| Material | Composite |
| Grade | Industrial |
| Series | Twist-Lock® Safety-Shroud® |
| Plug/Connector Type | Plug |
| Installation Manuals Asset Reference | Installation and Instruction Manuals |
|
| Brochure Asset Reference | Brochure |
|
| Catalog Full Asset Reference | Catalog |
|
| Hubbell Wiring Specification Sheet | Specification Sheet |
|
| Catalog Page Asset Reference 2 | Catalog |
|
| Catalog Page Asset Reference 3 | Catalog |
|
| Catalog Page Asset Reference 1 | Catalog |
|
Twist Lock Devices
Hubbell Insulgrip® Twist-Lock’s rugged construction features highly engineered materials, roomy...
