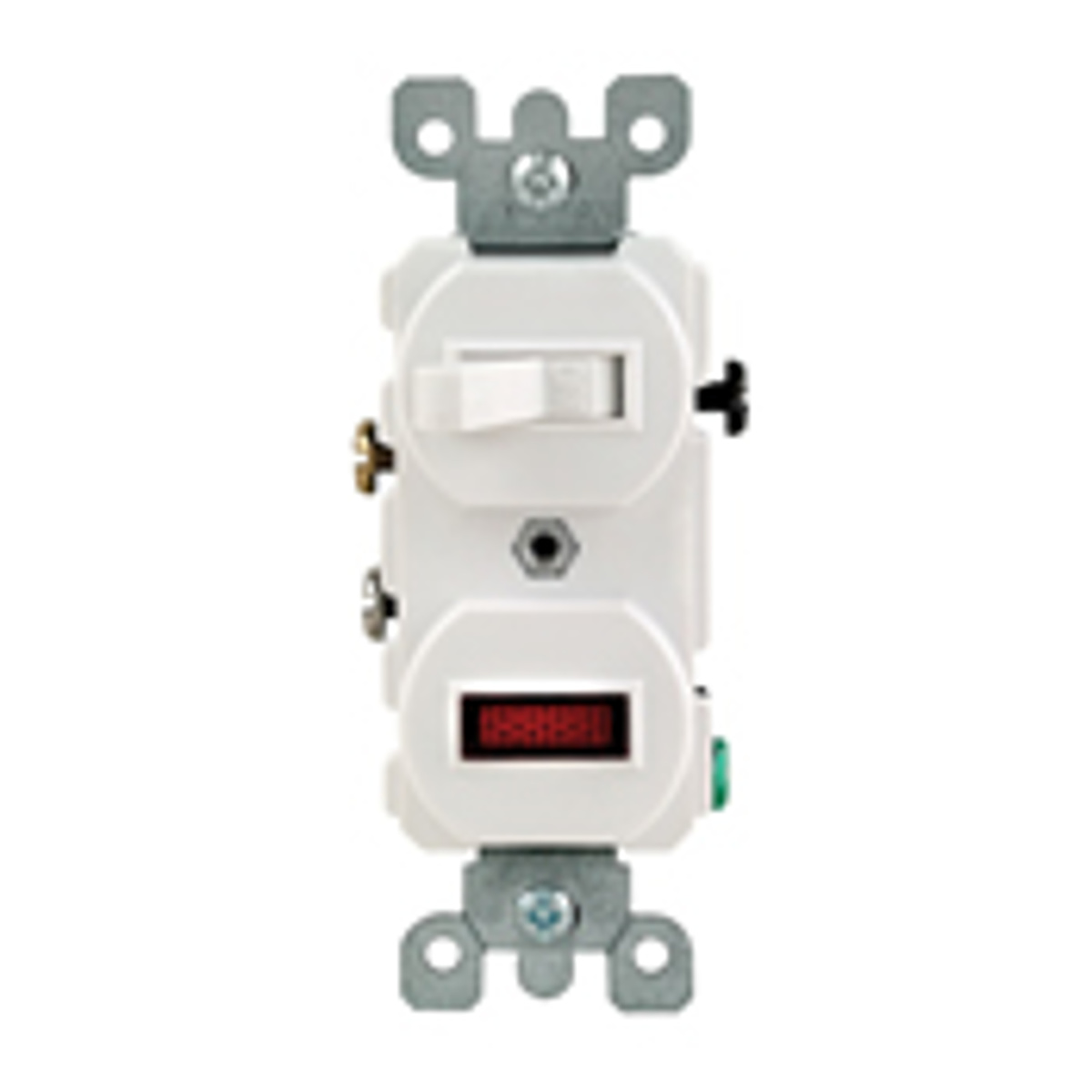

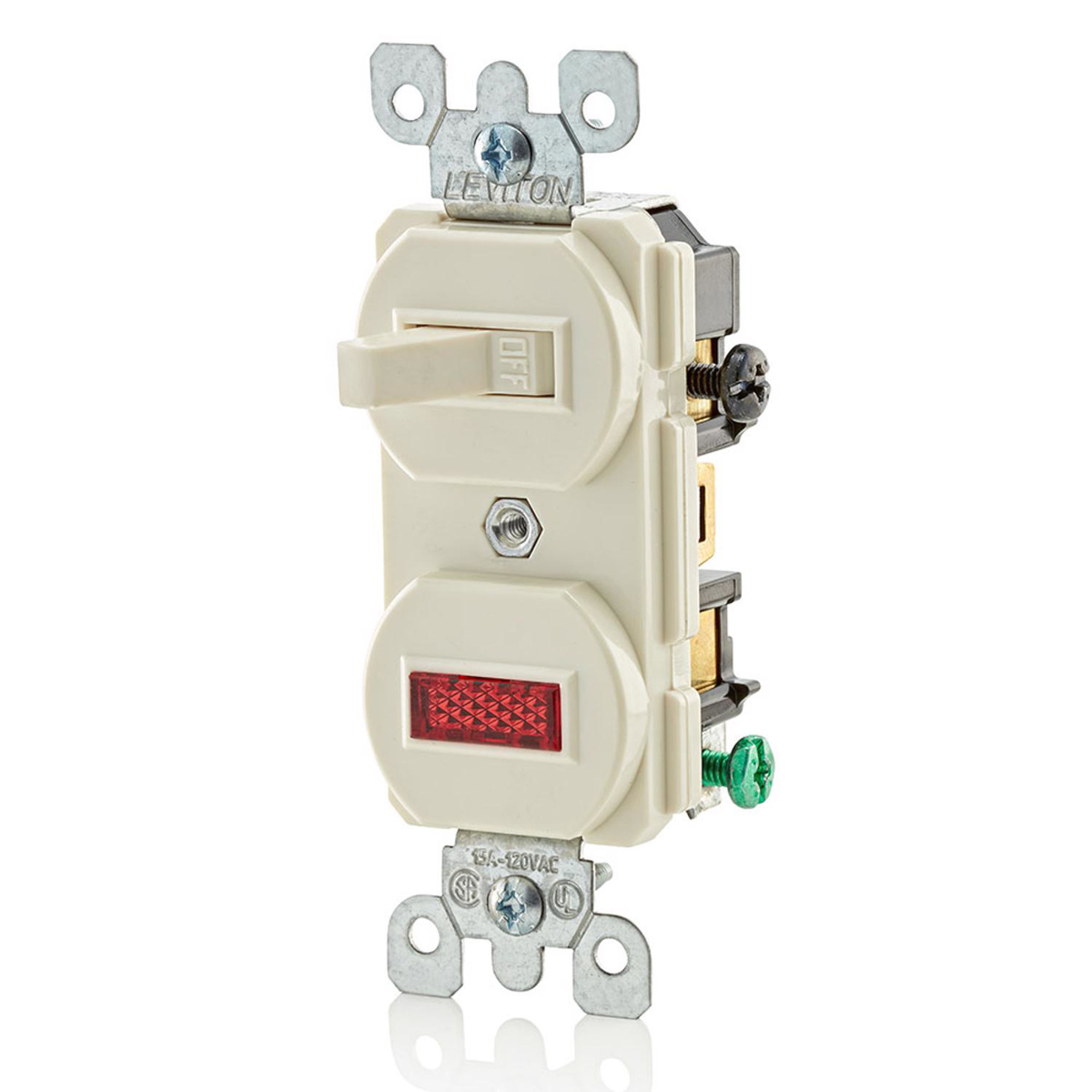

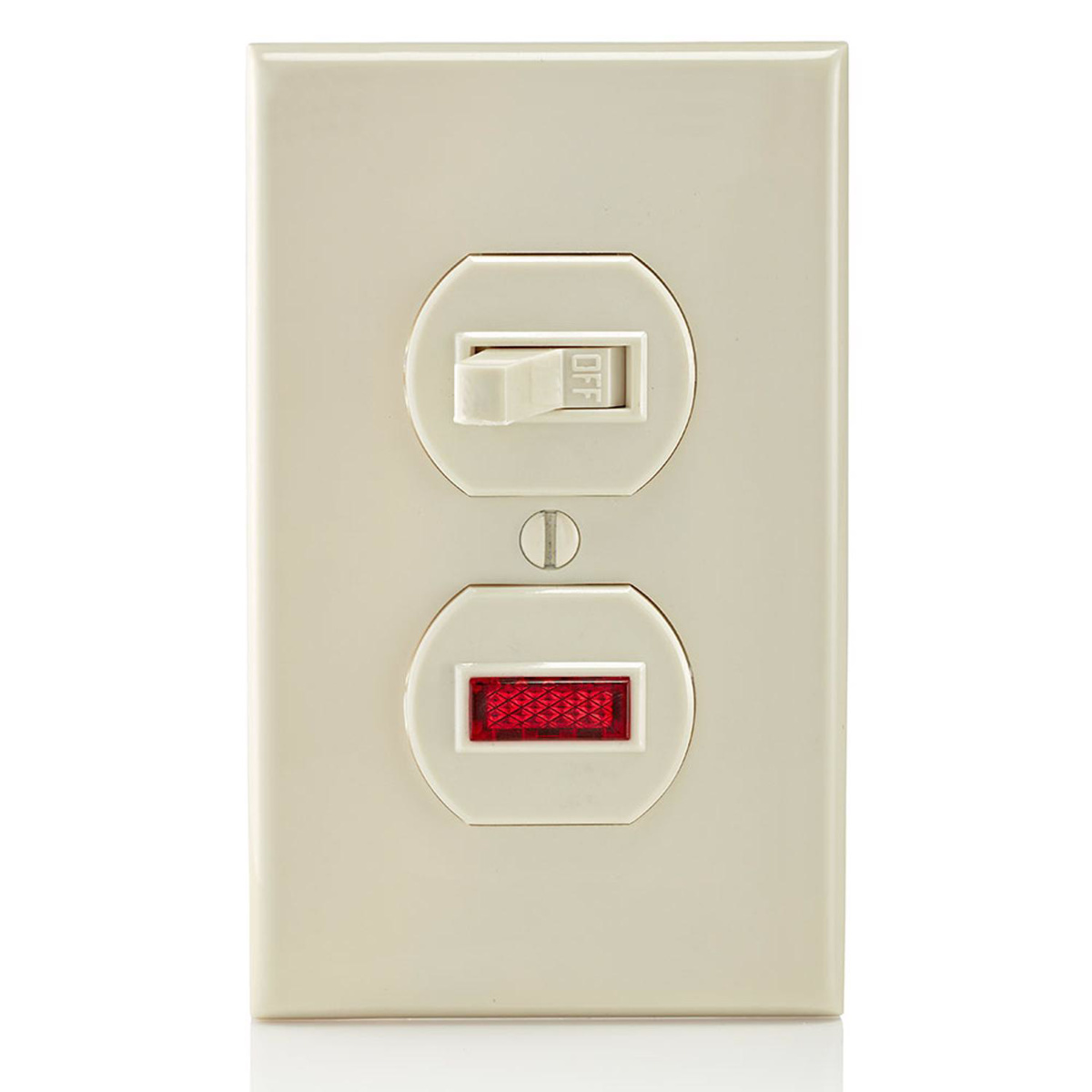

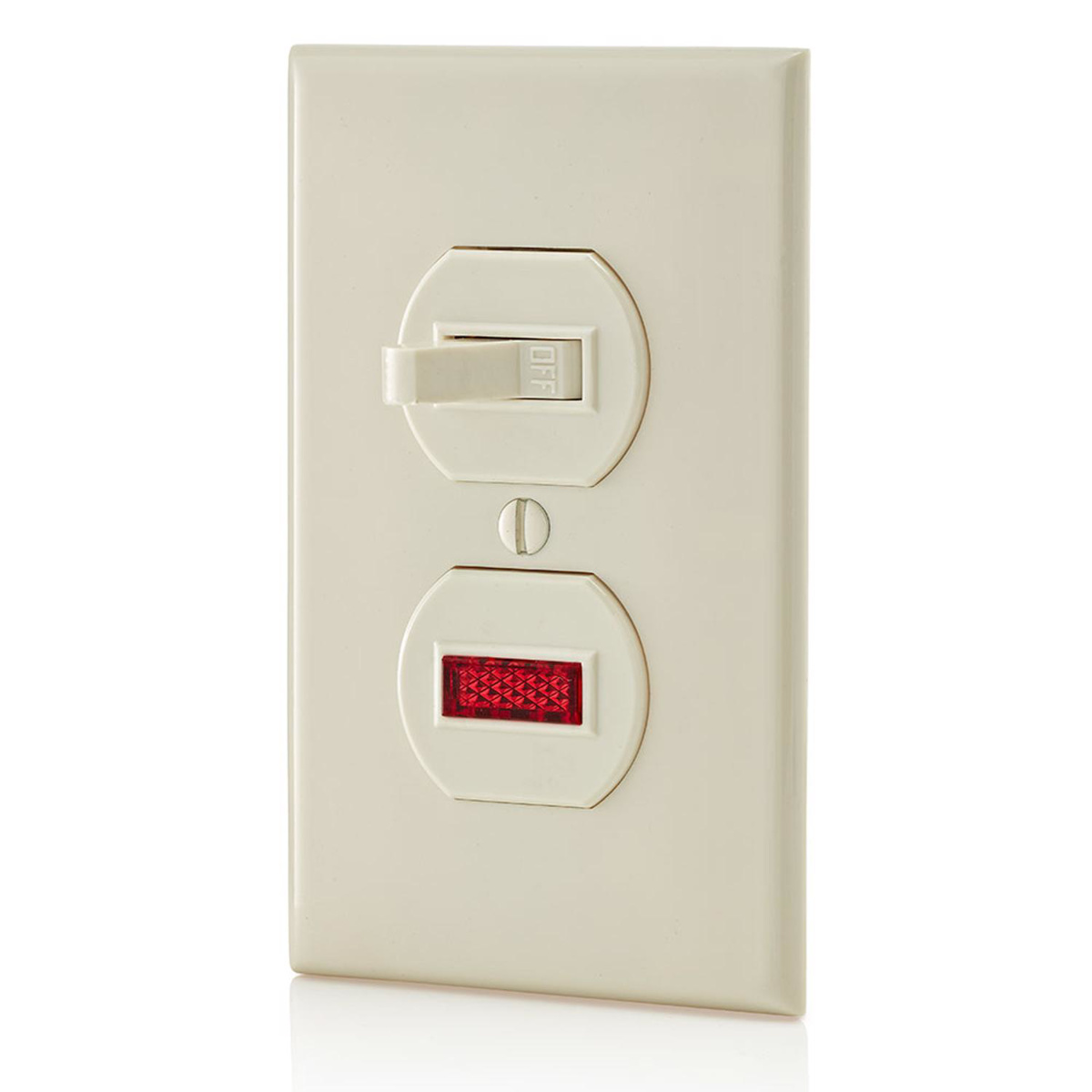

Leviton 5226 Series Combination Devices 15 A 120 V Toggle/Pilot Light 5-15R

Mfg #: 5226T

BOR #: 1764312

View all 5 in product family

Looking for prices?

Create an Account

AC Combination Devices have silver-cadmium oxide contacts and receptacles have double-wipe contacts for maximum conductivity

Side wired with terminal screws that accept up to No. 12 AWG copper or copper-clad
All devices have grounding screw
Fits standard wall boxes
Horse Power: 1/2 @ 120 V, 2 @ 240 V
Operating Temperature: -40°C to 120°C
Rating: Switch - 15 A - 120 V AC, Receptacle - 15 A - 125 V
Environmental: Flammability UL-94, V2 rating
CSA (file #LR-3413)
NOM certified (#057)
Break-off tabs on devices with AC quiet switches permit conversion to separate feeds

Product can be ordered only in multiples of

With Leviton’s extensive assortment of combination devices, you can fill a one-gang space with two...
