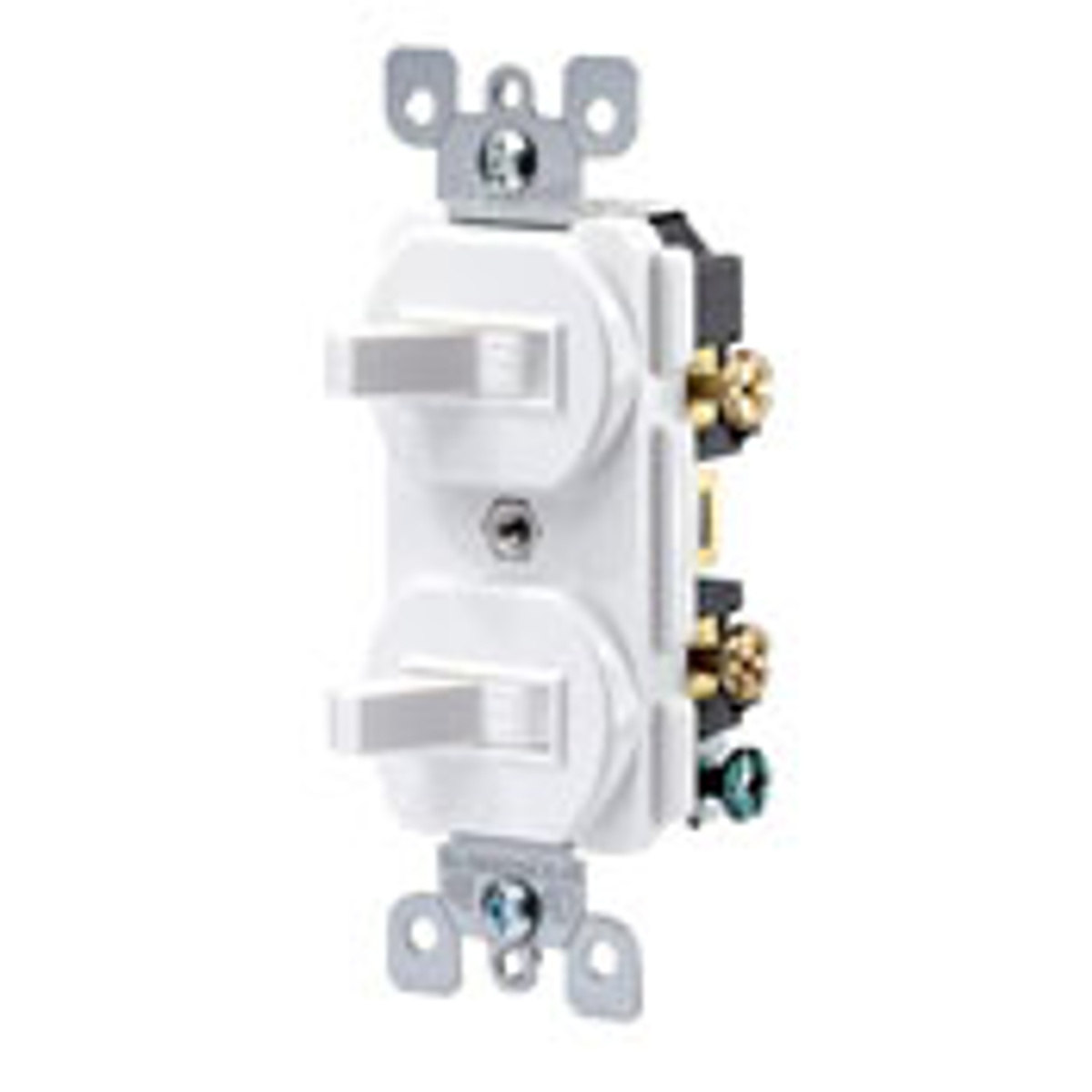

Leviton 5224-2 Series Combination Devices 15 A 120/277 V 2 Toggle

Mfg #: 52242T

BOR #: 1764315

View all 5 in product family

Looking for prices?

Create an Account

AC Combination Devices have silver-cadmium oxide contacts and receptacles have double-wipe contacts for maximum conductivity

Side wired with terminal screws that accept up to No. 12 AWG copper or copper-clad
All devices have grounding screw
Fits standard wall boxes
Horse Power: 1/2 @ 120 V, 2 @ 240 V
Operating Temperature: -40°C to 120°C
Rating: Switch - 15 A - 120 V AC, Receptacle - 15 A - 125 V
Environmental: Flammability UL-94, V2 rating
CSA (file #LR-3413)
NOM certified (#057)
Break-off tabs on devices with AC quiet switches permit conversion to separate feeds

Product can be ordered only in multiples of

With Leviton’s extensive assortment of combination devices, you can fill a one-gang space with two...

Leviton's award-winning line of designer styled devices enhances every interior, from traditional ...
