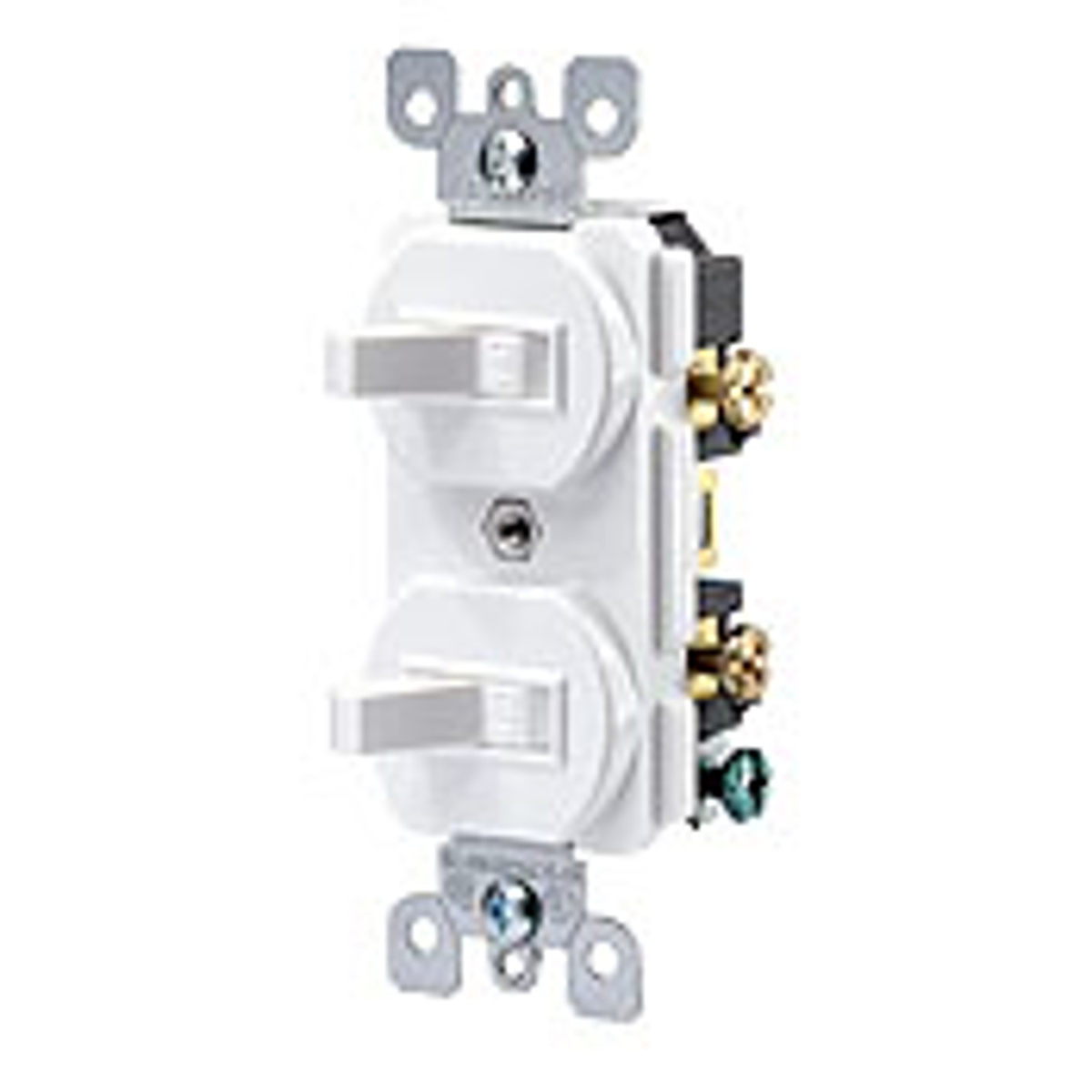

Leviton 5224-2 Series Combination Devices 15 A 120/277 V 2 Toggle
AC Combination Devices have silver-cadmium oxide contacts and receptacles have double-wipe contacts for maximum conductivity
- Side wired with terminal screws that accept up to No. 12 AWG copper or copper-clad
- All devices have grounding screw
- Fits standard wall boxes
- Horse Power: 1/2 @ 120 V, 2 @ 240 V
- Operating Temperature: -40°C to 120°C
- Rating: Switch - 15 A - 120 V AC, Receptacle - 15 A - 125 V
- Environmental: Flammability UL-94, V2 rating
- CSA (file #LR-3413)
- NOM certified (#057)
- Break-off tabs on devices with AC quiet switches permit conversion to separate feeds
| Brand | Leviton |
| Pole/Wire | SP + SP |
| Device Configuration | 2 Toggle |
| Voltage | 120/277 V |
| Color | Brown |
| Grade | Commercial |
| Wiring Method | Side Wired |
| Contact Configuration | SP + SP |
| Design | Duplex |
| Control | Toggle |
| Amperage | 15 A |
| Leviton Specification Sheet | Specification Sheet |
|
How to Install a Combination Device with Two Single Pole Switches | Leviton
With Leviton’s extensive assortment of combination devices, you can fill a one-gang space with two...
Leviton Decora® Devices
Leviton's award-winning line of designer styled devices enhances every interior, from traditional ...
