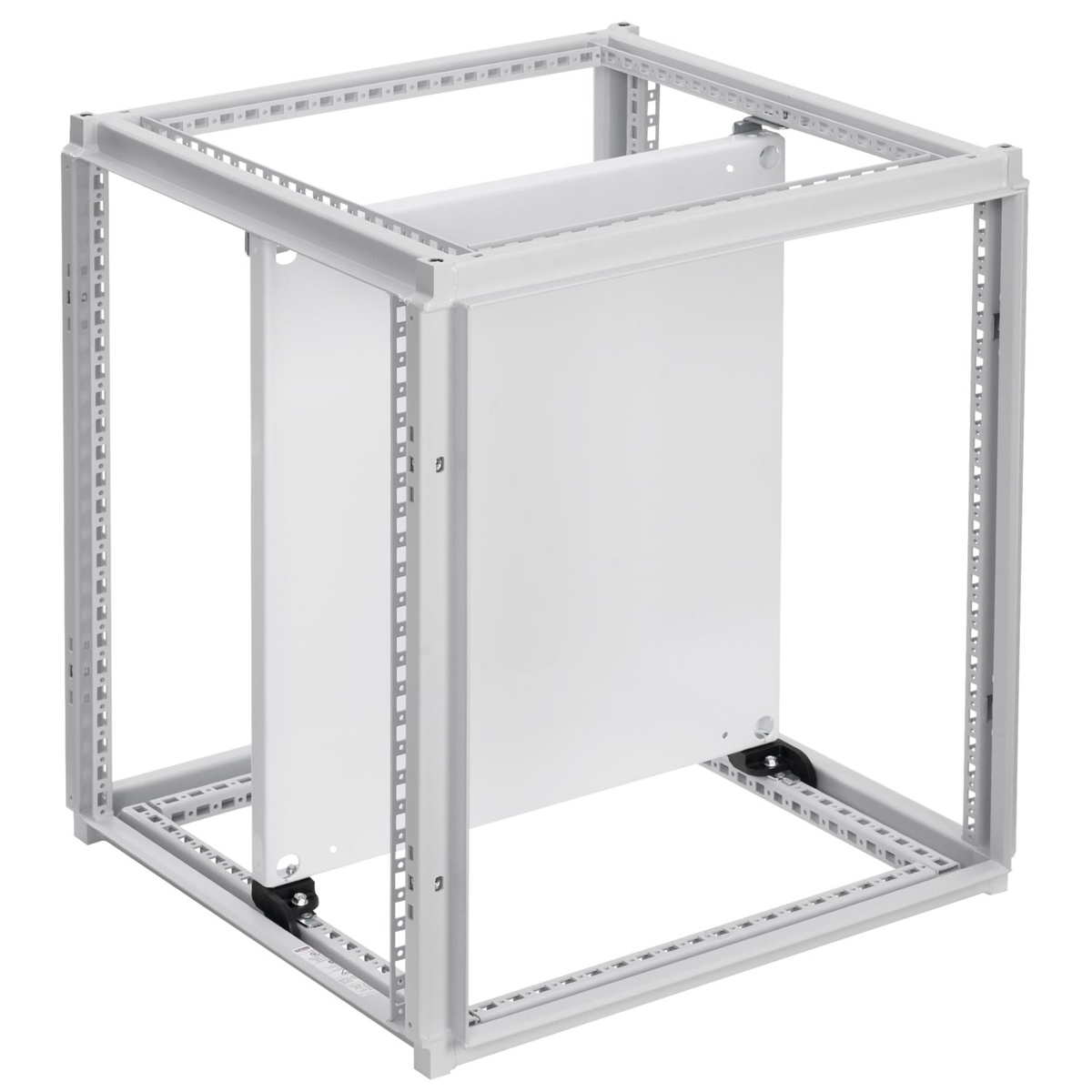

nVent HOFFMAN P20 ProLine® Enclosure Full Subpanels 585 mm x 113 mm 700 x 1200 mm Steel 12 ga

Mfg #: PPF712

BOR #: 610603

View all 4 in product family

Looking for prices?

Create an Account

PROLINE subpanels are designed to provide maximum panel depth, panel size and ease of installation.

All necessary mounting hardware is included
Full subpanels slide into the frame on nylon glide blocks, which supports the entire weight of the subpanel.
Mounting hardware attaches to the top or the sides of the frame
Panels installed in the rearmost position in joined (ganged) enclosure provide a continuous mounting surface without requiring joining panels
Subpanels are 12 gauge steel (subpanels for double-bay enclosure 1400 mm tall or taller are 10 gauge steel), have flanges on all sides, and are painted white
Subpanels can be mounted at nearly any depth in 25 mm increments
Conductive subpanels are unpainted galvanized steel

Product can be ordered only in multiples of

nVent HOFFMAN Specification Sheet	Specification Sheet
Certificate - Cert-00229 - NAM-US	Compliance
Certificate - CE-UKCA-00003_Accy-Enclosure - NAM-US	Compliance
