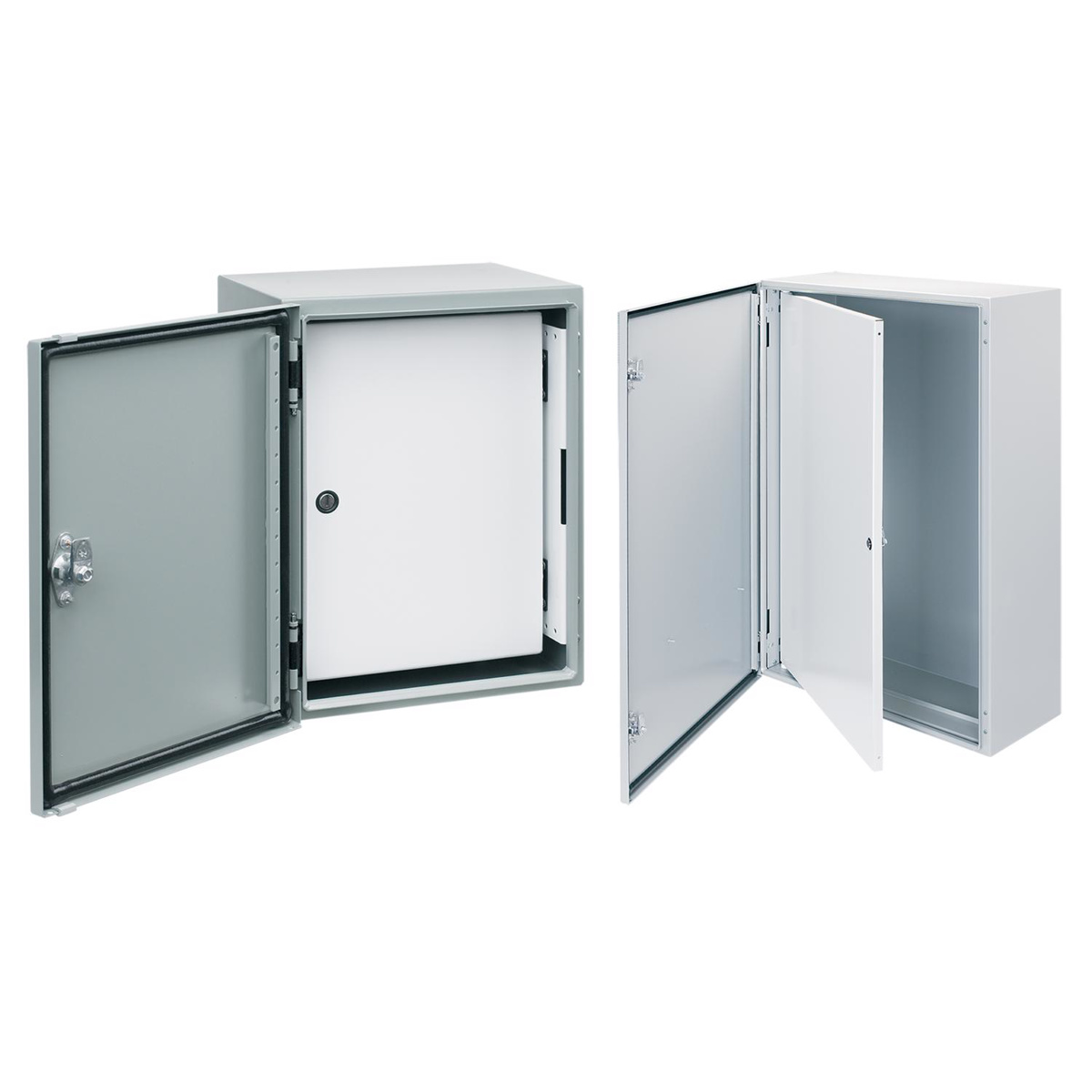

nVent HOFFMAN CWY CONCEPT® CSP Swing-out Panel Kits 27.78 x 27.84 in 30 x 30 in Steel 12 ga
Mfg #:
CSP3030
BOR #:
129804
Panels swing clear from the front of the enclosure to provide access to mounted internal equipment.
- Swing-out panels also can be mounted on front-to-back adjustable rails
- Maximum panel swing is 106 degrees
- Kits include panel, brackets and hardware to mount to the front flange
- Distance from panel surface to door when in the latched position is 1.71 in. (43 mm) for solid doors and 1.45 in. (37 mm) for window doors.
| Brand | nVent HOFFMAN |
| Height | 27.78 in |
| NEMA Rating | NEMA 1 |
| Width | 27.84 in |
| Panel Gauge | 12 ga |
| Compatible With | nVent Hoffman Concept |
| Panel_Size | 27.78 x 27.84 in |
| Enclosure Size | 30 x 30 in |
| Color | White |
| Material | Steel |
| nVent HOFFMAN Specification Sheet | Specification Sheet |
|
| Certificate - CE-UKCA-00068_Enclosure-Panels - NAM-US | Compliance |
|
