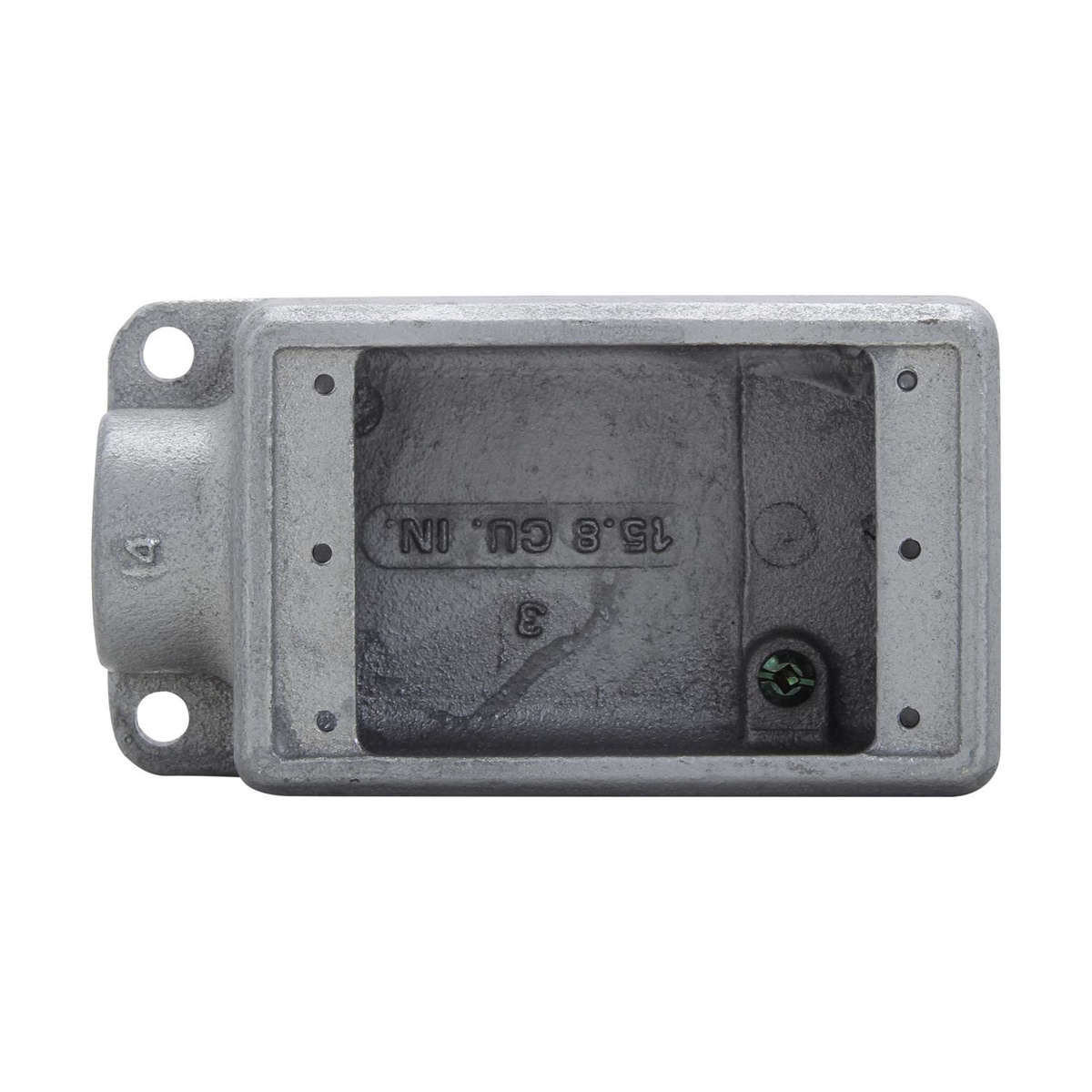

Eaton Crouse-Hinds Condulet® FS Cast Device Boxes Cast Iron FS Box 17.34 in³
Mfg #:
FS2
BOR #:
125588
Cast device boxes are installed in conduit and cable systems.
- With and without mounting lugs for threaded rigid and IMC conduit
- Accommodate wiring devices
- Act as pull boxes for conductors in a conduit system
- Provides access to conductors for maintenance and future system changes
- Connect conduit sections
- Covers for flush mounting extend to conceal the rough plaster line
- Internal green ground screw standard on boxes
- Tapered threaded hubs (NPT) with integral bushing
- Standard material and finish is Feraloy® iron alloy with electrogalvanized and aluminum acrylic paint
- Suitable for use in wet locations when used with gasketed covers
- Single-gang configuration with hubs and as blank bodies for drilled and tapped openings
- Use FD if device to be enclosed exceeds 1-5/8 in depth
Related Items
Select Options
| Brand | Eaton Crouse-Hinds |
| Width | 4-5/16 in |
| Number of Hubs | 1 Hub |
| Height | 5-5/32 in |
| Number of Gangs | 1 Gang |
| Cubic Capacity | 17.34 in³ |
| Depth | 1-7/8 in |
| Device Box Type | FS Box |
| Box Mounting Type | Nail-on/Screw-on |
| Knockouts | Without Knockouts |
| Material | Cast Iron |
| Hub Size | 3/4 in |
| Series | Condulet® FS |
| Eaton Crouse-Hinds Specification Sheet | Specification Sheet |
|
