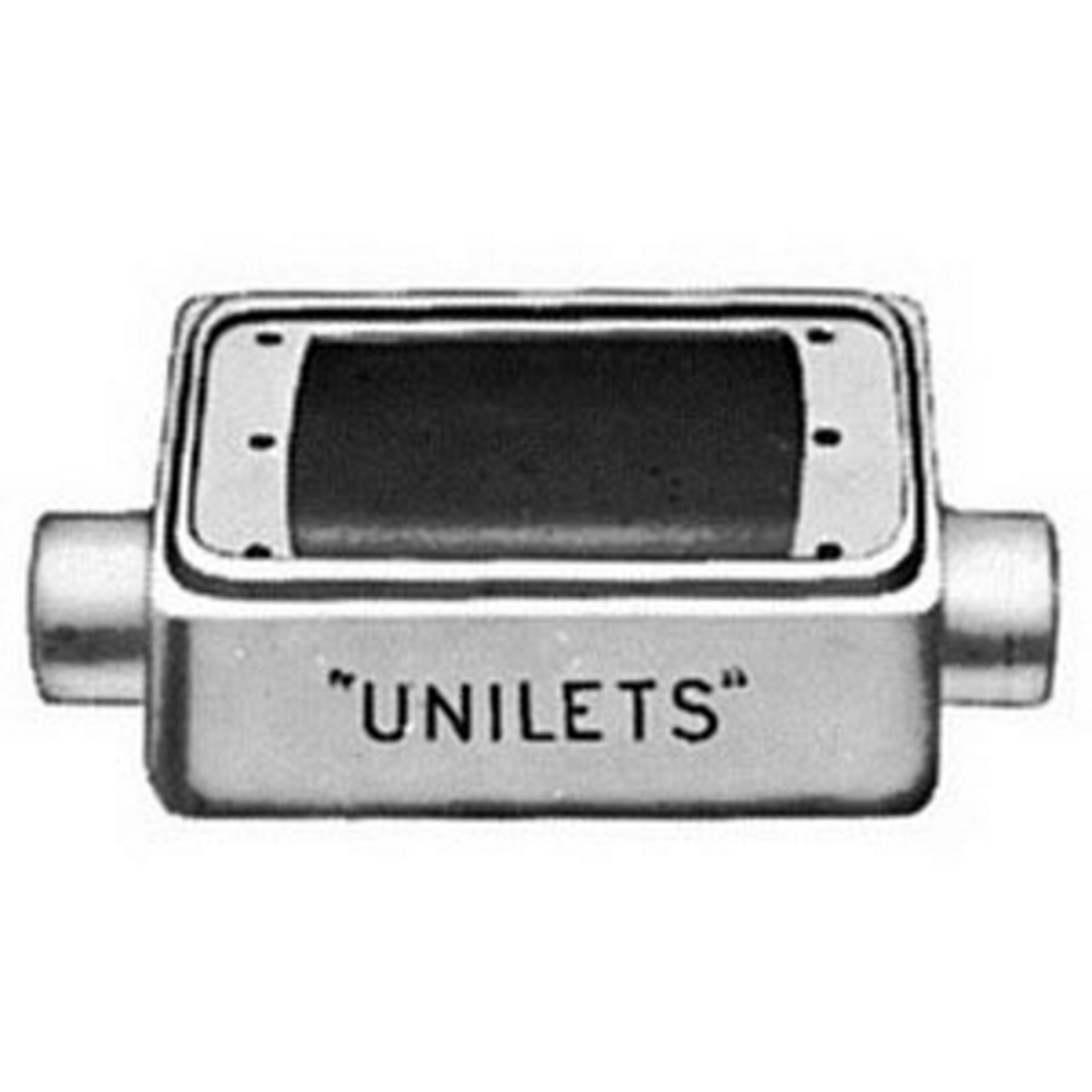

Appleton Emerson FSC Device Boxes Malleable Iron FSC Box 18.00 in³
Mfg #:
FSC150
BOR #:
127500
Type FSC Cast Device Boxes - Single Gang with mounting feet
- Accommodates wiring devices and provides opening to splice, tap or pull conductors
- Tapered threaded hubs (NPT) with integral bushings.
- Both FS and FD styles are deeper than similar boxes, providing greater internal volume.
- Internal grounding screw standard on all boxes
- Mounting feet standard on FS, FD, FSC, FDC, FSA and FDA styles. FS/FD boxes without mounting lugs may be supported by the attached conduits per NEC Section 314-23(E).
- Available single gang, two gang and tandem styles
- Suitable for use in wet locations when used with gasketed covers
- Gray Iron is suitable for concrete use.
Related Items
Select Options
| Brand | Appleton Emerson |
| Width | 2-13/16 in |
| Number of Hubs | 2 Hub |
| Height | 4-9/16 in |
| Number of Gangs | 1 Gang |
| Cubic Capacity | 18.00 in³ |
| Depth | 2 in |
| Device Box Type | FSC Box |
| Box Mounting Type | Nail-on/Screw-on |
| Knockouts | Without Knockouts |
| Material | Malleable Iron |
| Hub Size | 1/2 in |
| Series | UNILETS™ FSC |
