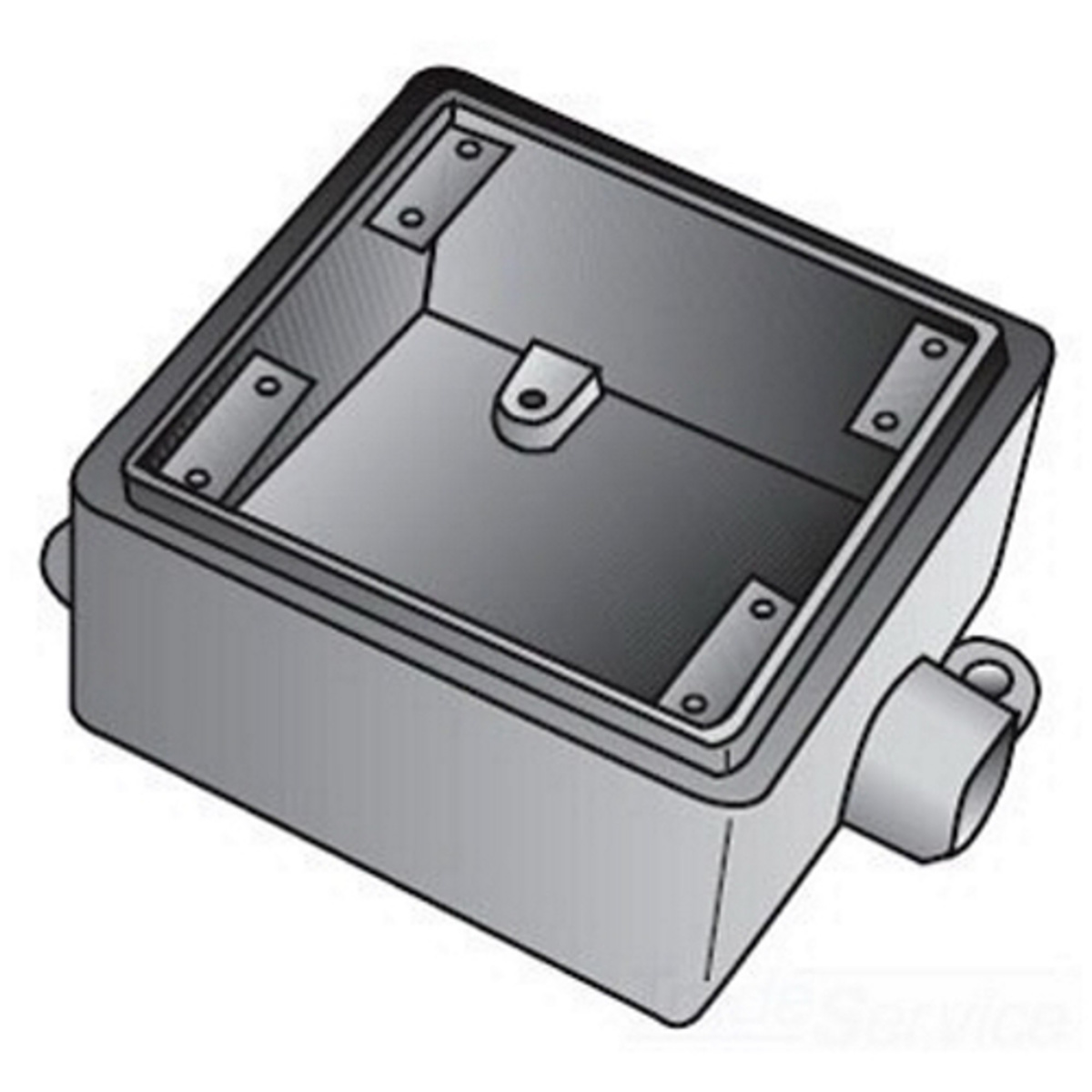

Appleton Emerson FD-2 Device Boxes Malleable Iron FD Box 45.00 in³
Mfg #:
FD275
BOR #:
1734227
Type FD Deep Cast Device Boxes - Single Gang with mounting feet
- Accommodates wiring devices and provides opening to splice, tap or pull conductors
- Tapered threaded hubs (NPT) with integral bushings.
- Both FS and FD styles are deeper than similar boxes, providing greater internal volume.
- Internal grounding screw standard on all boxes
- Mounting feet standard on FS, FD, FSC, FDC, FSA and FDA styles. FS/FD boxes without mounting lugs may be supported by the attached conduits per NEC Section 314-23(E).
- Available single gang, two gang and tandem styles
- Suitable for use in wet locations when used with gasketed covers
- Gray Iron is suitable for concrete use.
Related Items
Select Options
| Brand | Appleton Emerson |
| Width | 4-5/8 in |
| Number of Hubs | 1 Hub |
| Number of Gangs | 2 Gang |
| Cubic Capacity | 45.00 in³ |
| Depth | 2-11/16 in |
| Device Box Type | FD Box |
| Box Mounting Type | Nail-on/Screw-on |
| Knockouts | Without Knockouts |
| Material | Malleable Iron |
| Hub Size | 3/4 in |
| Series | UNILETS™ FD |
| Appleton Emerson Specification Sheet | Specification Sheet |
|
