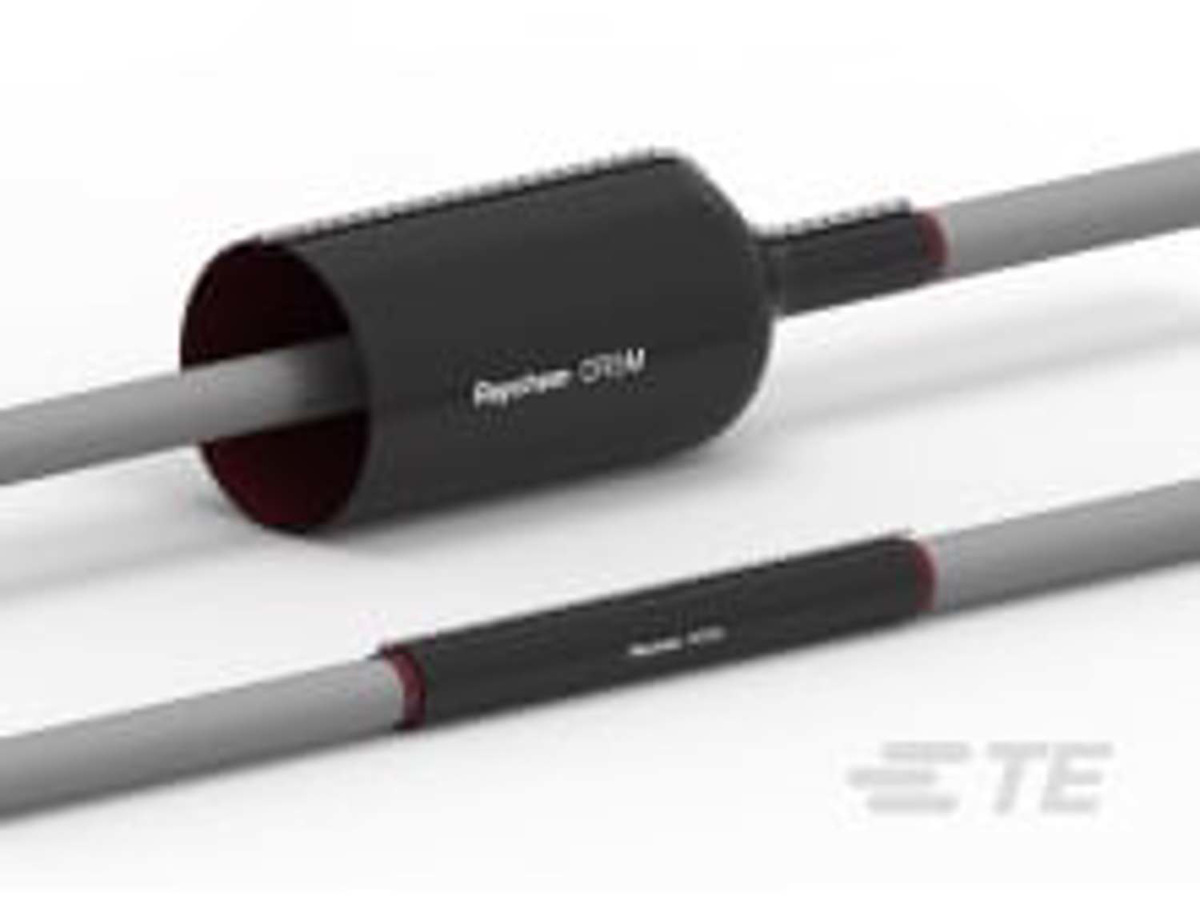

TE Connectivity CRSM Series Warparound Heat Shrink Sleeves 150 mm Black

Mfg #: 196146000
BOR #: 2475624
Looking for prices?

CRSM sleeves close easily with a permanent locking system that consists of a raised rail profile and a stainless steel channel. Sleeves are made from crosslinked polyolefin, which equals or exceeds the material properties of the original cable jacket. Fit

  • For use on standard poly- or elastomeric-insulated/jacketed cables or lead-jacketed cables, which may include aluminum or steel armoring
  • Qualified to ANSI C119.1-1986, rated to ICEA electrical withstand test for 1000 volts, and RUS accepted for use as jacket restoration materials on JCN cable
  • Use as insulation for 1/C low-voltage power cable up to 1000 volts, and for jacket repair up to 35 kV or for general sealing applications
See More
Product can be ordered only in multiples of
Brand TE Connectivity
Voltage 1000 V
Maximum Cable Insulation Diameter 27.00 mm
Type Wraparound Heat Shrink Sleeves
Series CRSM
Material Polyolefin (PO)
Length 150 mm
Color Black
Minimum Cable Insulation Diameter 11.00 mm
TE Connectivity Specification Sheet Specification Sheet
