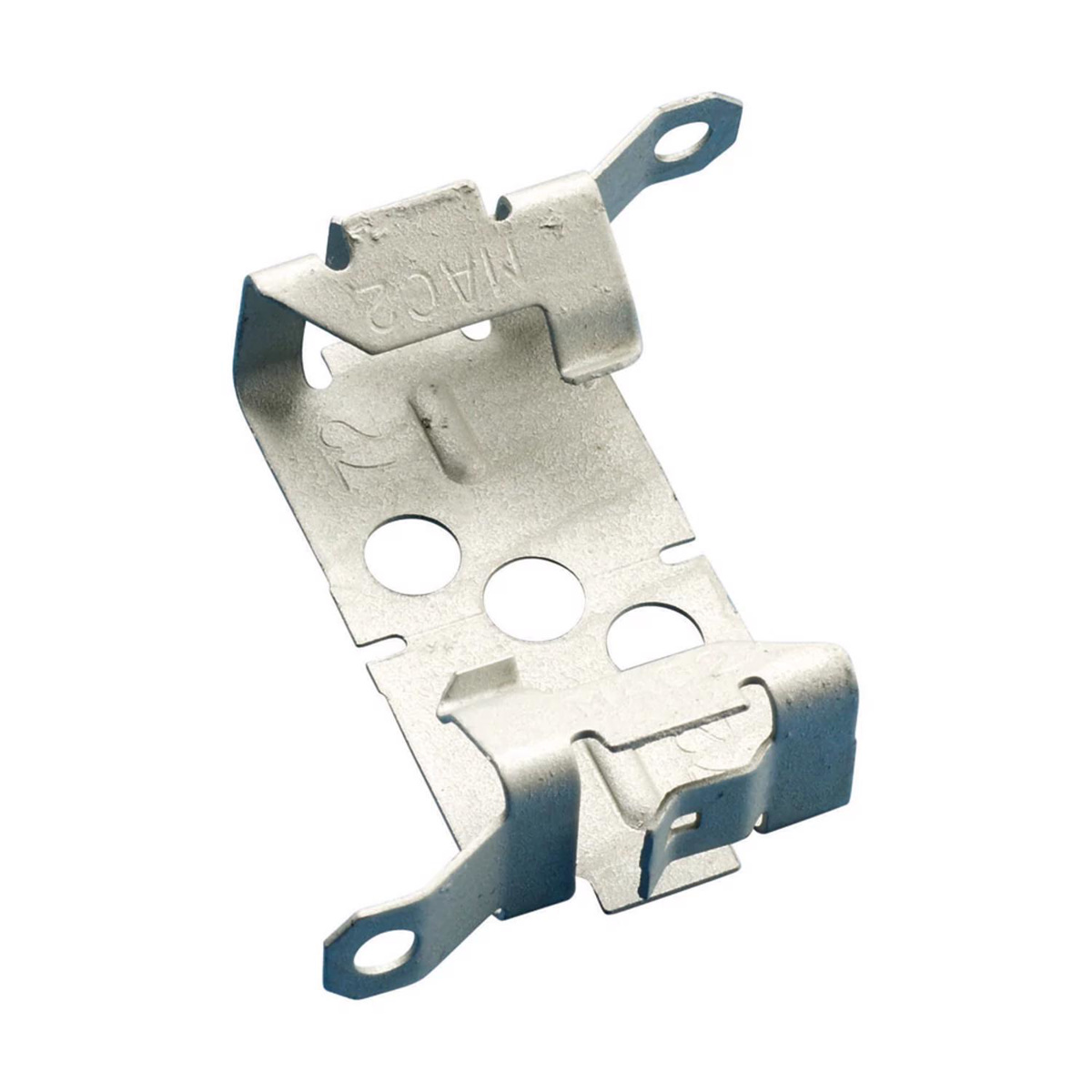

nVent Caddy MAC2 Series MC / AC Cable-to-Stud Purlin Clips 0.607 in Stud Mounted

PrimaryProductImage
PrimaryProductImage
Logo
Mfg #: MAC2
BOR #: 181664
View all 3 in product family
Looking for prices?
Sign In
Create an Account

MC/AC Cable to Stud Clips

  • Manufactured with stabilizer legs for virtually "wobble-free" support

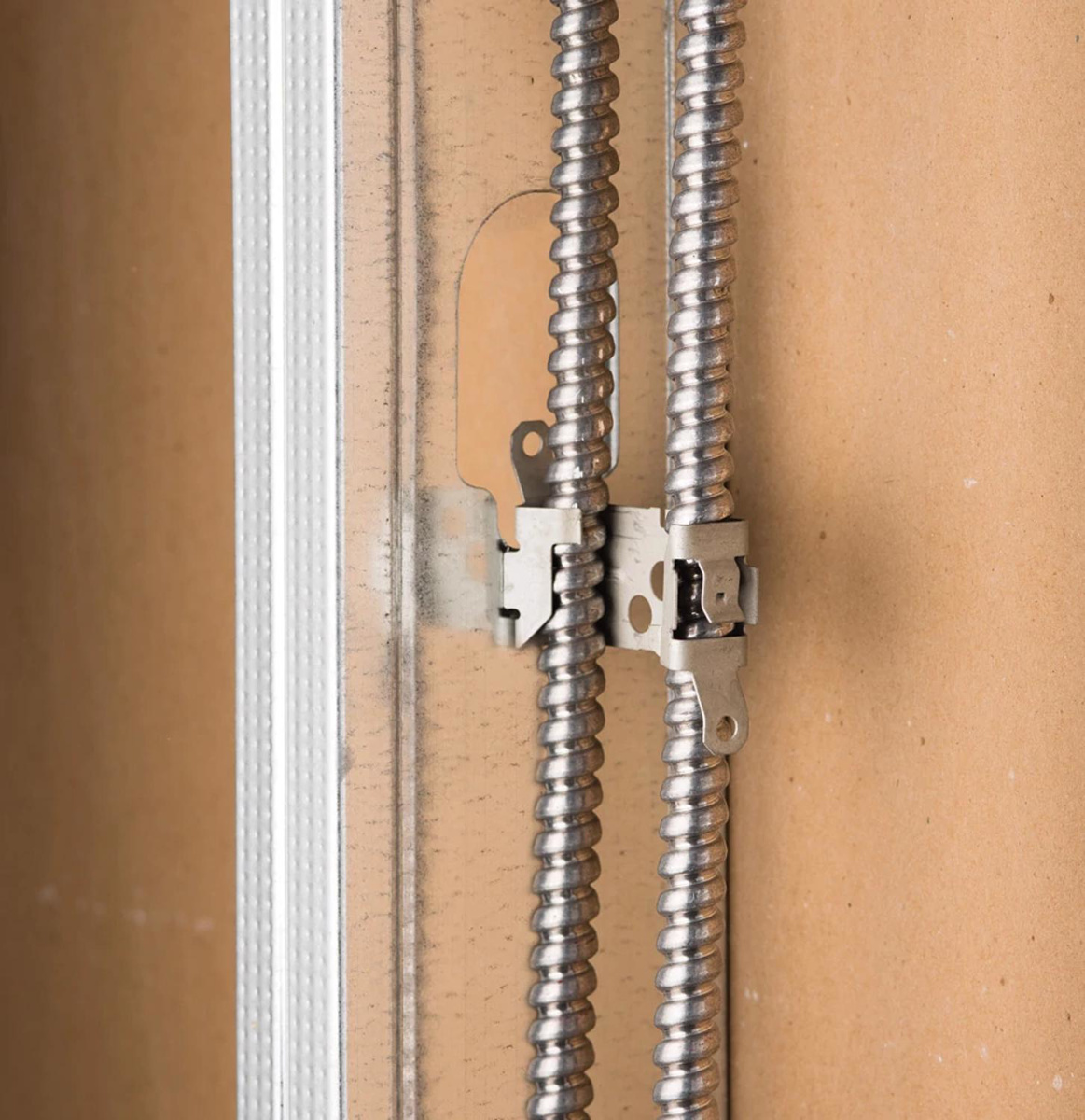

  • Snaps into place on metal stud and beam flange
  • No tools required for installation
  • Pre-punched holes in clip allow it to be screwed to wood stud, concrete or block
  • Compliant with NEC® Article 300.4(d), allowing cable to be positioned a minimum of 1-1/4" from face of stud
  • Compliant with CEC Rule 12-618 for support of MC/AC cable
  • Factory riveted assemblies are available for installation on flange, purlin, acoustical tee, drop wire, concrete, block or wood and metal stud
  • MAC2 snaps in half to accommodate single run of cable effectively making two clips from one
See More
Product can be ordered only in multiples of
Specifications
Brand nVent
Flange Size 1/8 in
Material Steel (Spring)
Capacity MC/AC 14/2 - 10/3
Cable Diameter 0.607 in
For Use With AC/MC Cable
Mounting Type Stud Mounted
