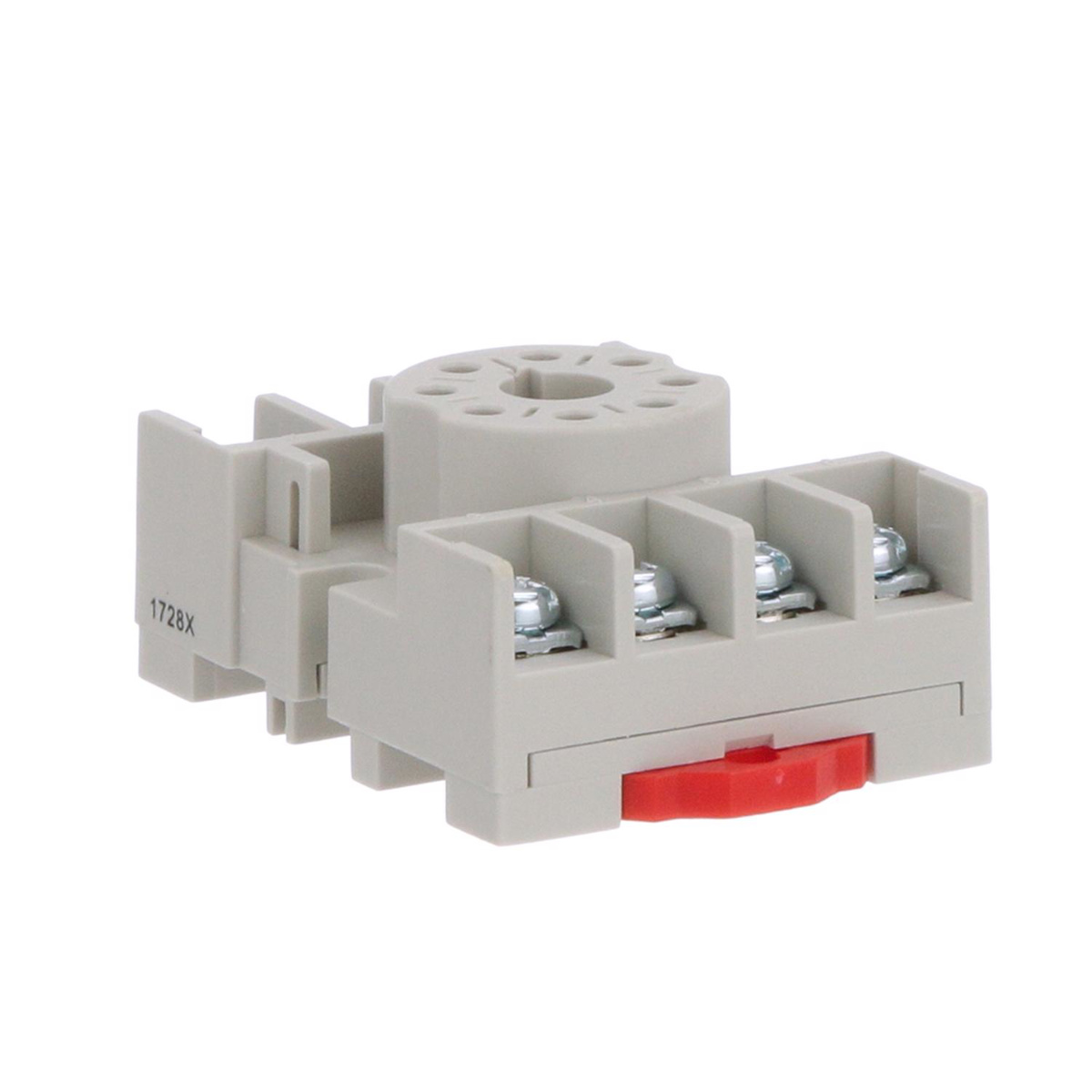

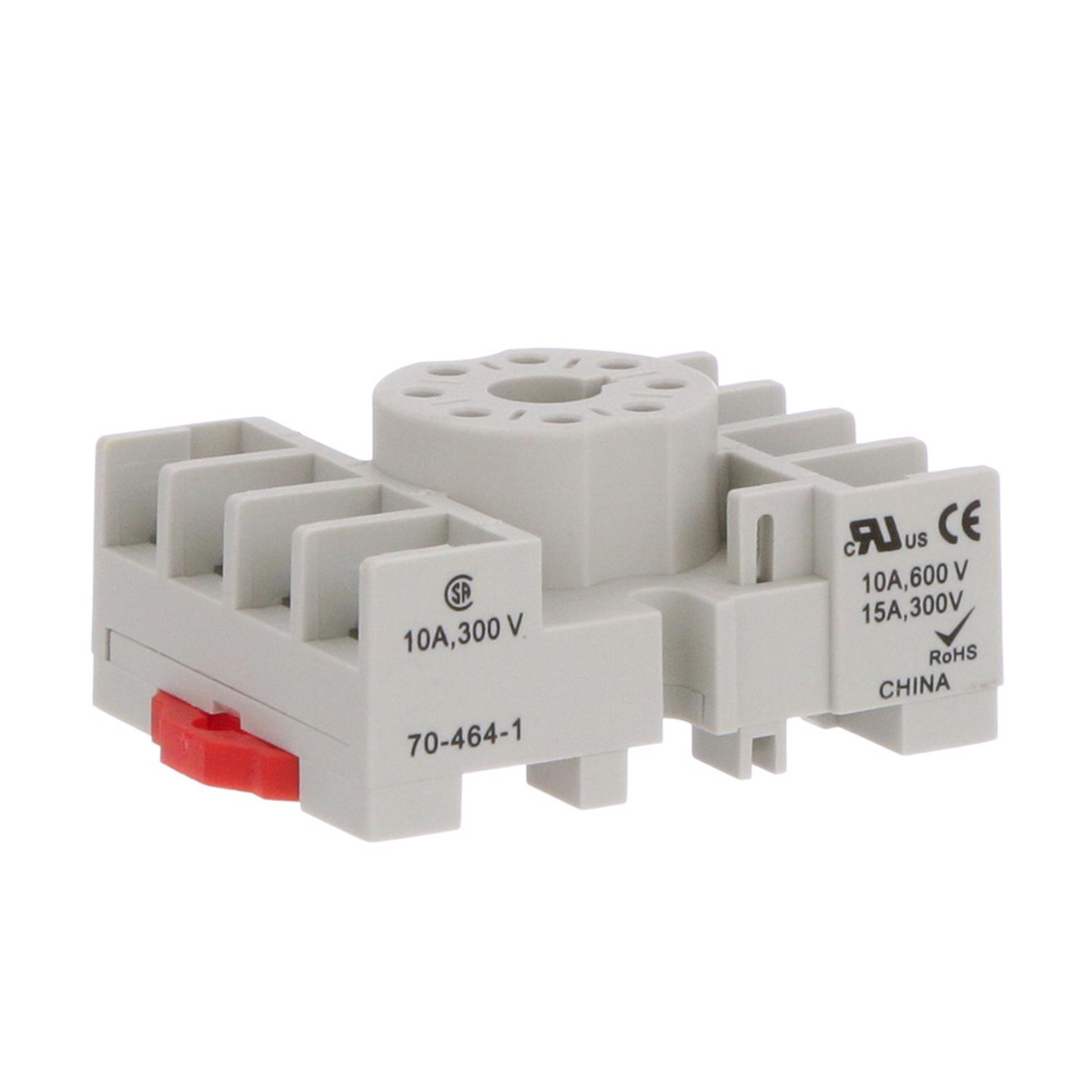

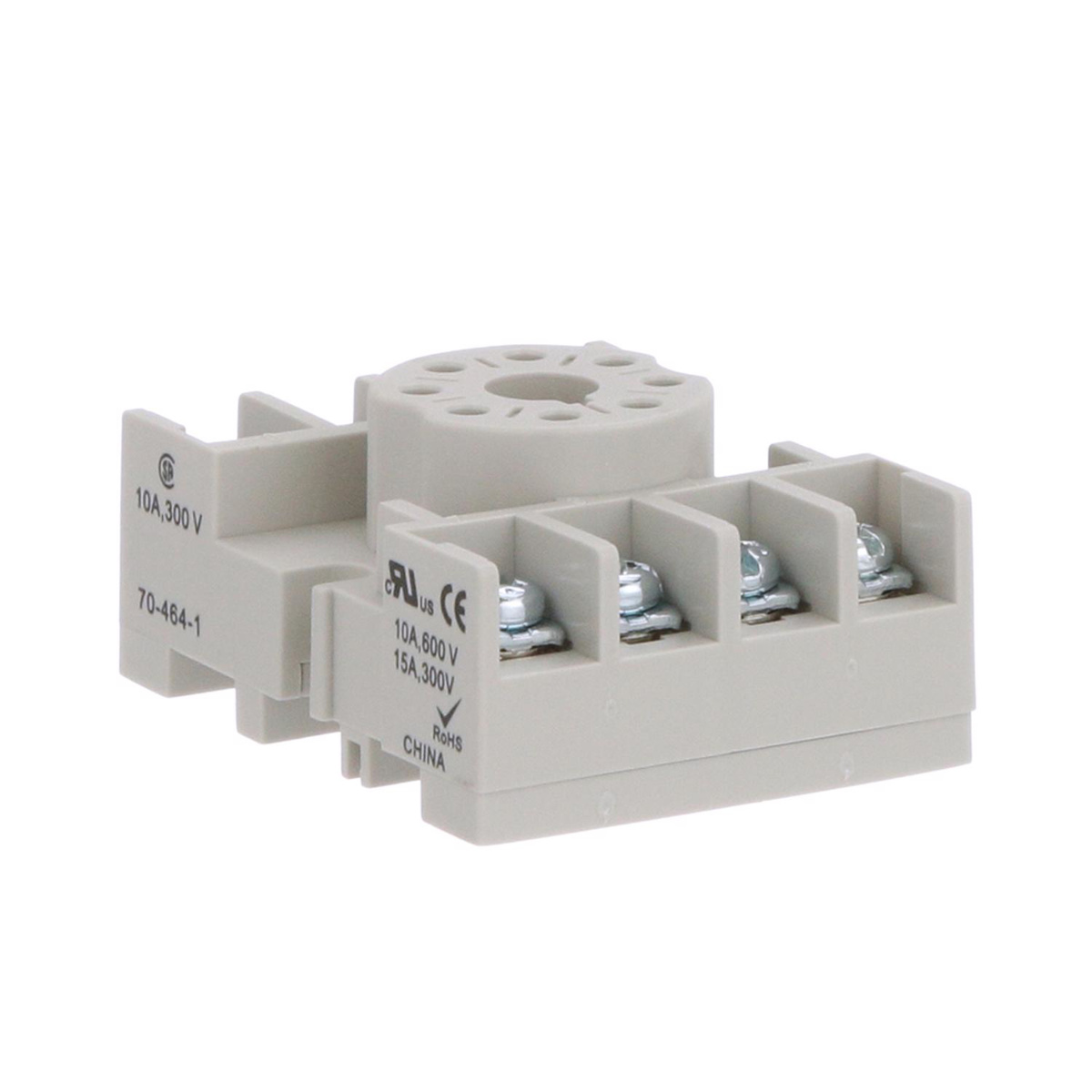

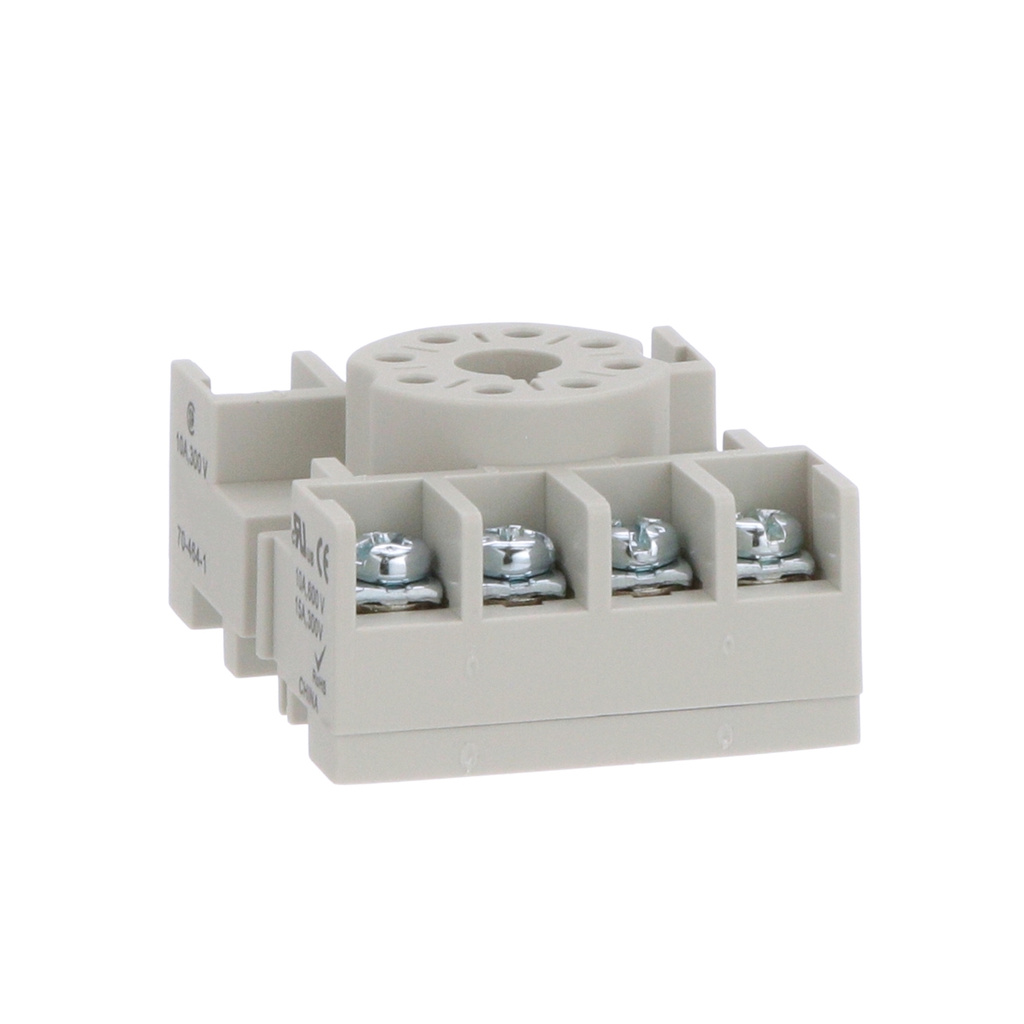

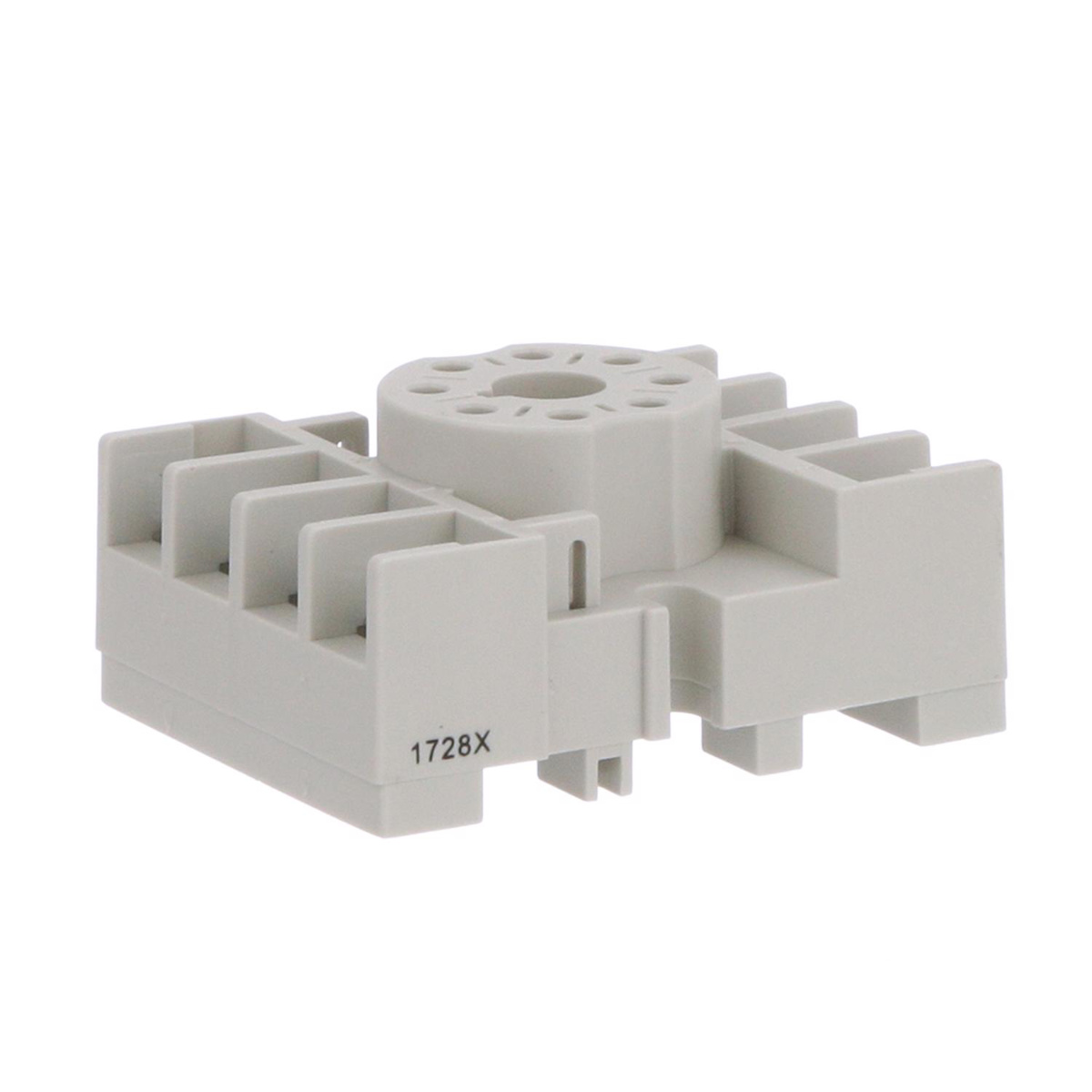

Square D SE General Purpose Relay Sockets General Purpose Relay 8 Pin
Mfg #:
704641
BOR #:
3485028
SE Relays general purpose relay accessory
- Socket
- DPDT
- 16A
- 300 V
- 8 pins
- Screw clamp terminal
- 750/750H series
- Compatibility: Relay 750XCXR, relay 750XCXH, suppressor module 70-ASMM, diode 70-ASMD, signalling device 70-ASMLG, suppressor module 70-ASMR, jumper wire 16-750CBJ-1
| Brand | Square D |
| Mounting Type | DIN Rail/Panel |
| Relay Type | General Purpose Relay |
| Contact Rating | 10 A/15 A |
| Compatible With | Schneider 750XBXR, 750XBXH |
| Voltage | 300 - 600 V |
| Base Type | Octal Base |
| Amperage | 15 A |
| Contact Configuration | DPDT, 2 NO 2 NC |
| Configuration | 8 Pin |
| Series | SE |
| Socket Type | Screw Terminal Socket |
| SE Relays General Purpose Relays Catalog - 8501CT1105 (pdf) | Catalog |
|
