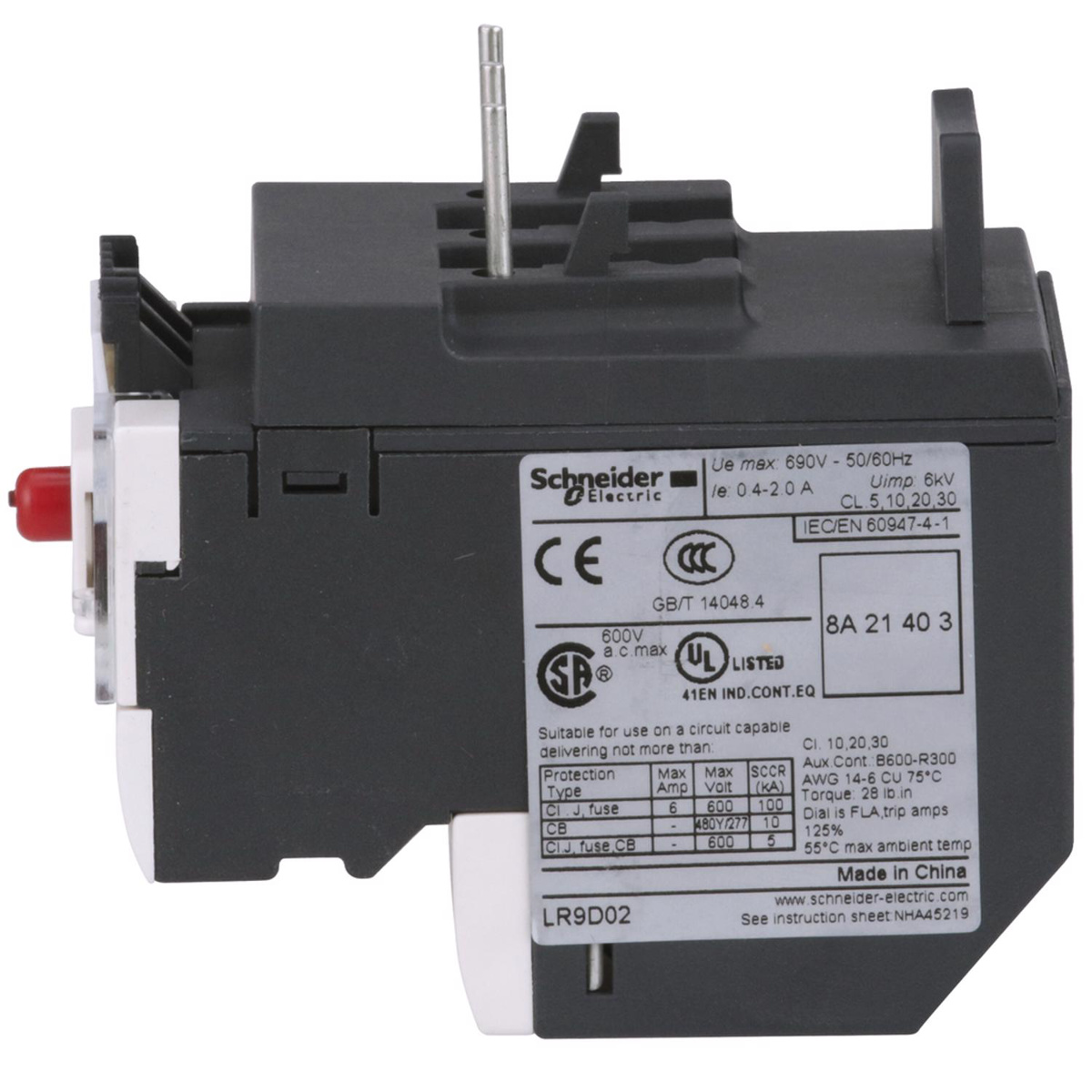

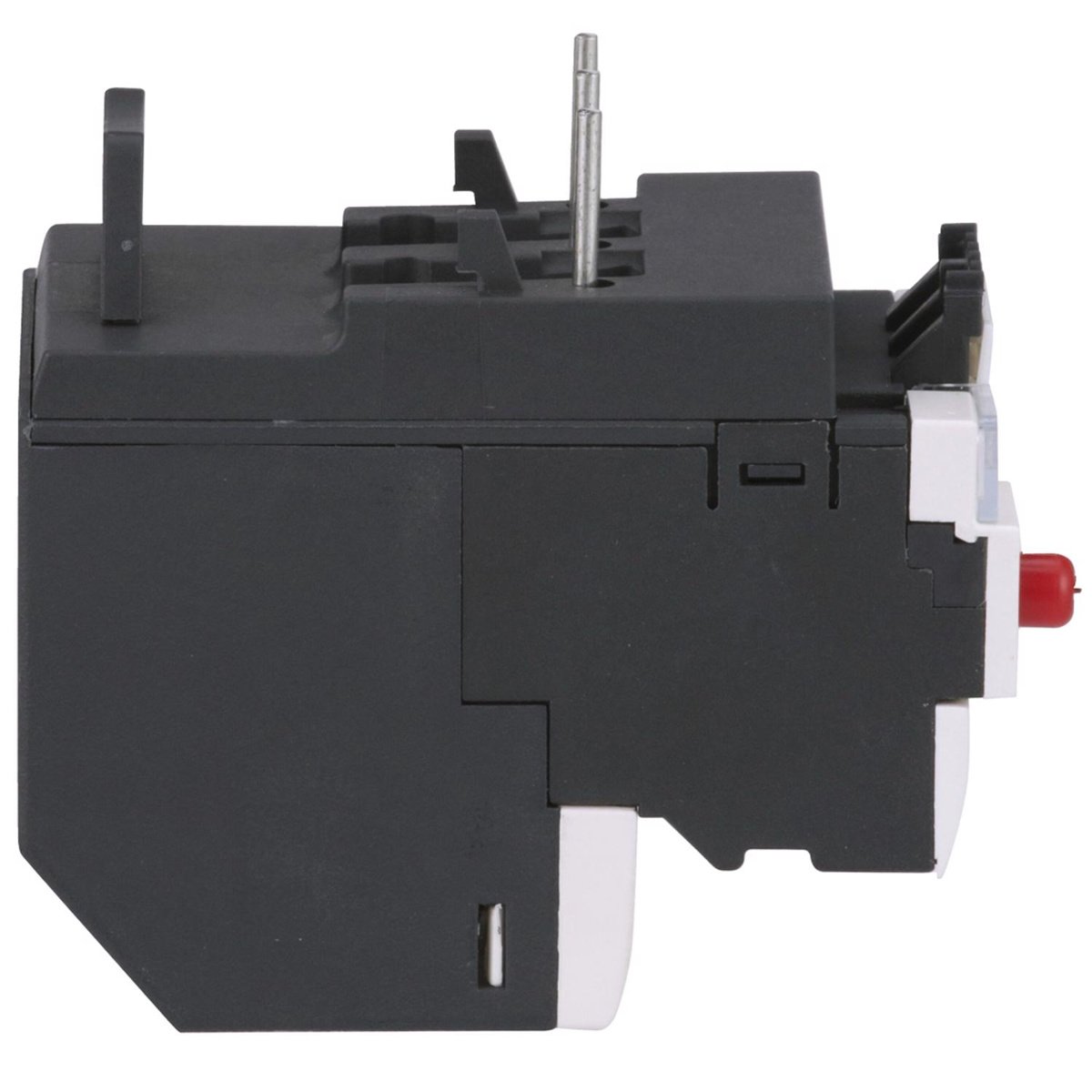

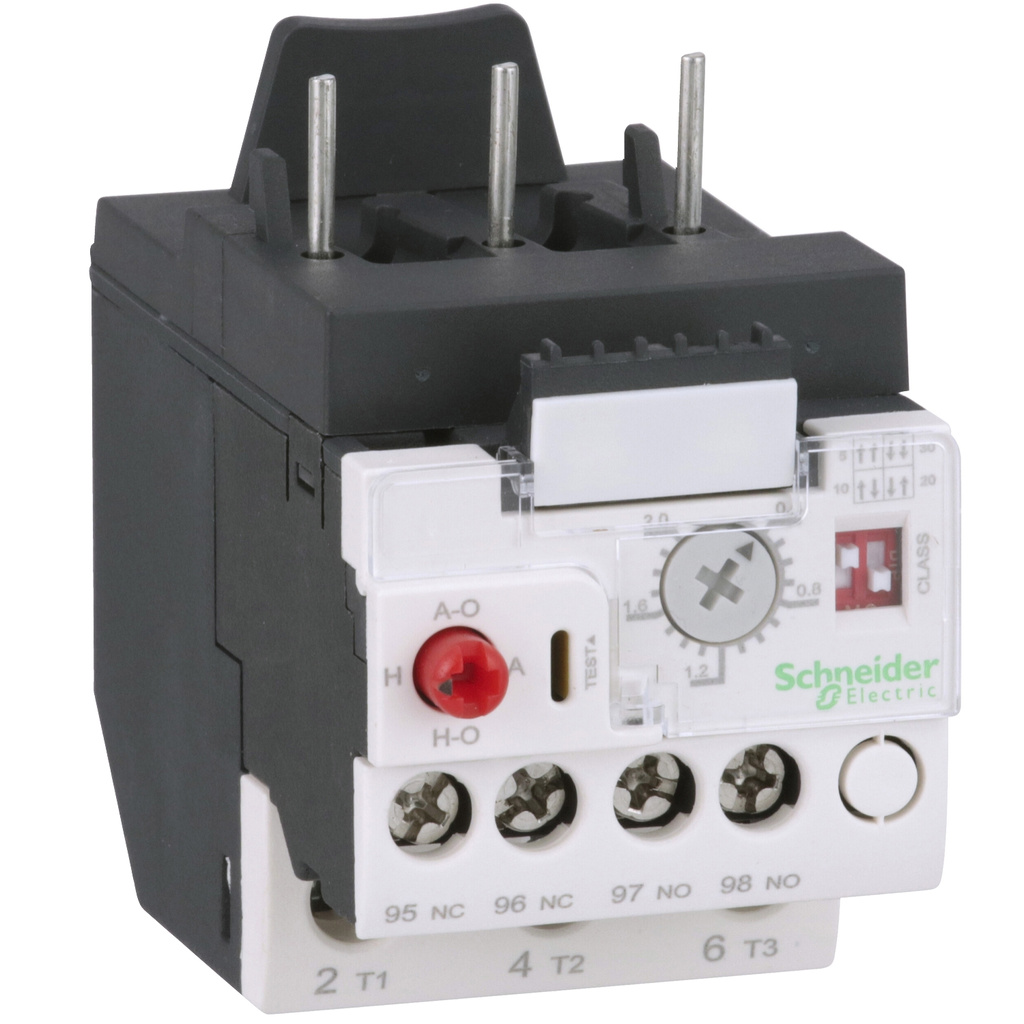

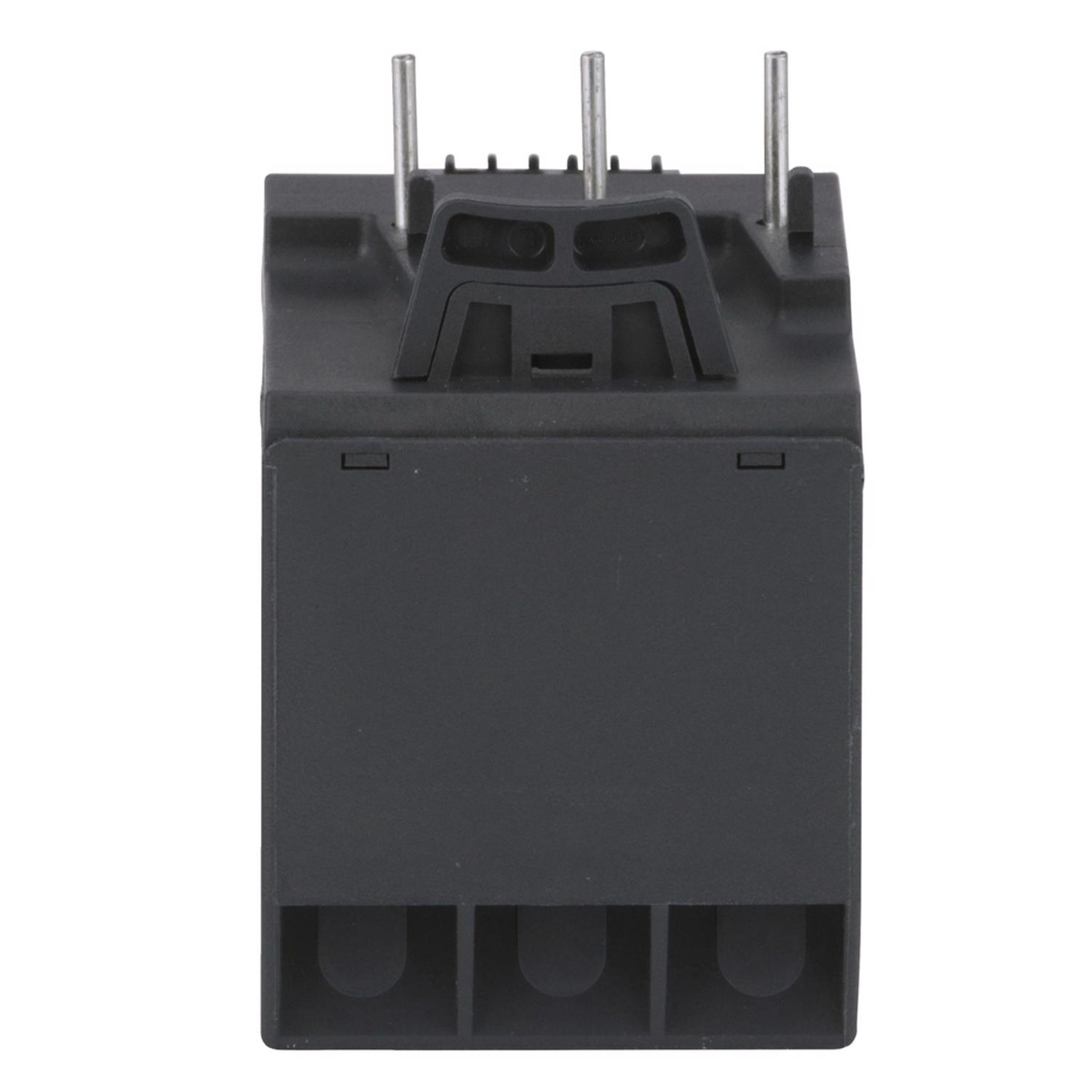

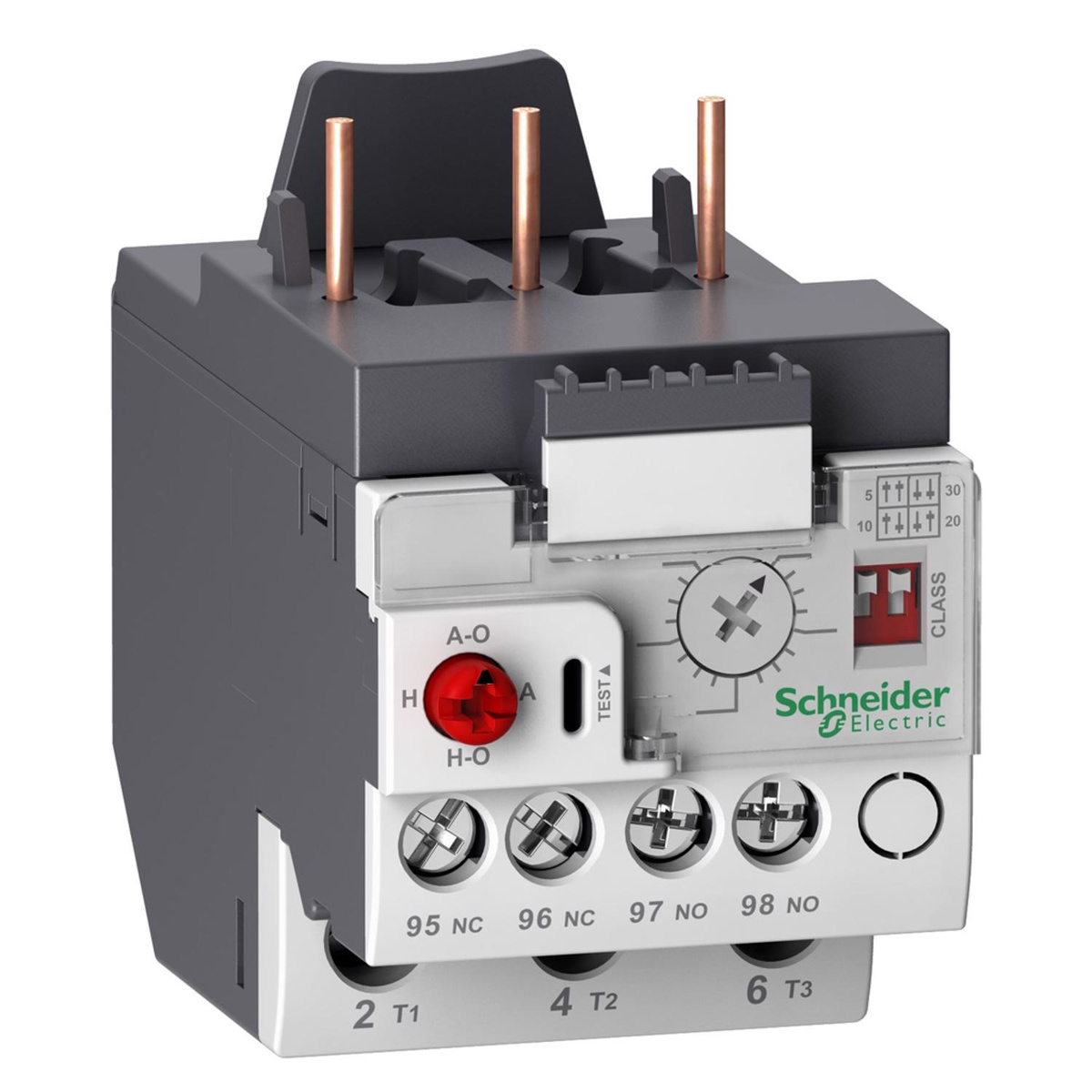

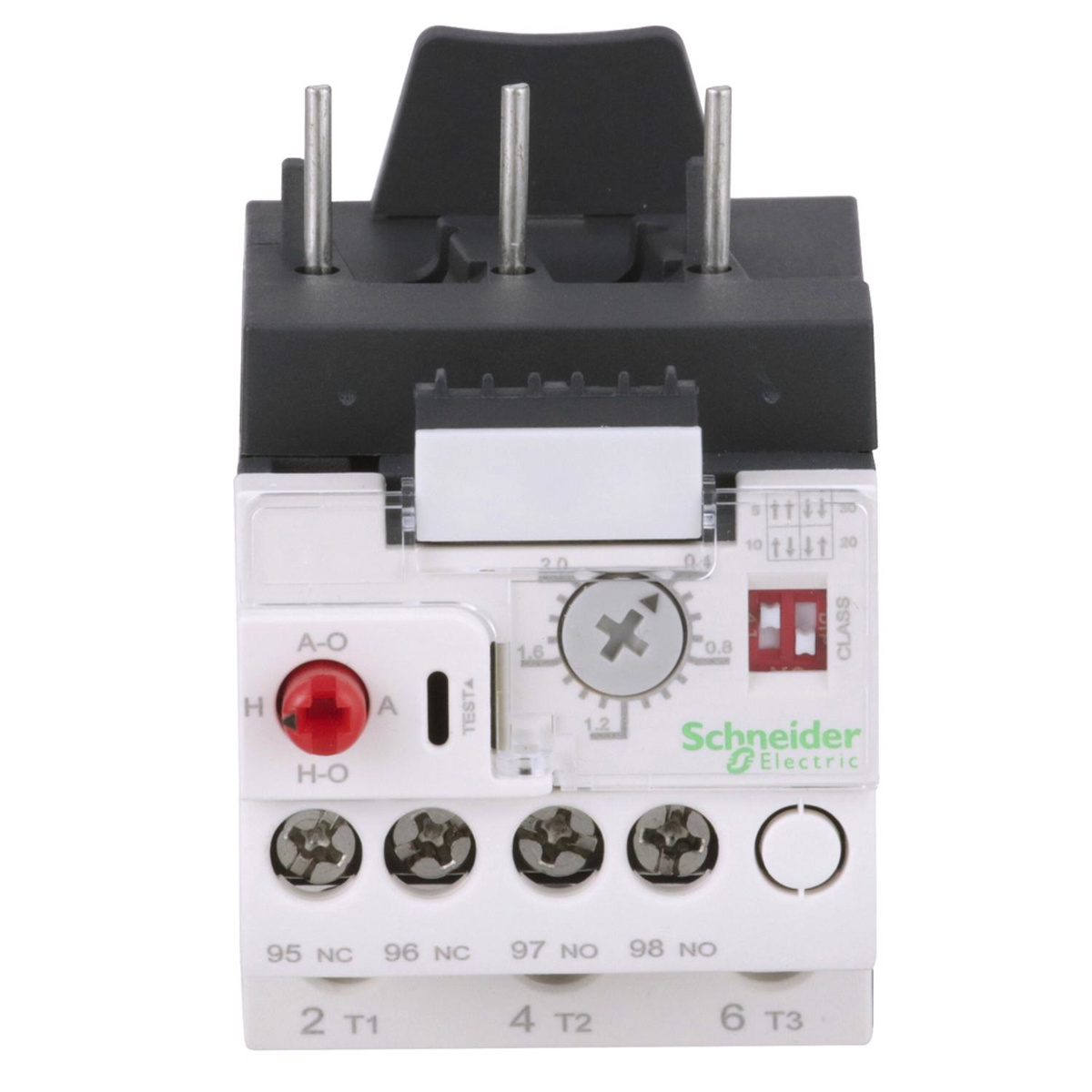

Schneider Electric TeSys™ Deca LR9 Electronic Thermal Overload Relays 0.4 - 2 A 1 NO 1 NC Class 5/10/20/30 Size 00, 1
Mfg #:
LR9D02
BOR #:
3285517
Motor Protection - Electronic thermal overload relay
Related Items
Select Options
| Brand | Square D |
| Series | LR9D TeSys™ Deca |
| Relay Type | Thermal Overload Relay |
| Contact Configuration | 1 NO 1 NC |
| Mounting Type | Direct Mount |
| Amperage | 0.4 - 2 A |
| Trip Class | Class 5/10/20/30 |
| Enclosure Type | Size 00, 1 |
| Voltage | 690 VAC |
| Number of Poles | 3 Pole |
| Number of Phases | 3 Phase |
| Relay Style | Electronic |
| Motor Logic Solid-State Overload Relay Installation Instructions - 30072-452-39+final (pdf) | Installation and Instruction Manuals |
|
| IEC Contactors and Starters: Section 17 - Digest 179 (2024) - IEC-Contactors-Digest-Catalog-0100CT2401-SEC-17 (pdf) | Catalog |
|
| Industrial Control Panel Solutions Catalog - 8800CT1801 (pdf) | Catalog |
|
| TeSys LR9, Certificate, ABS - LR9D-F_ABS_2017+Marine+Certificate (pdf) | Compliance |
|
| Square D Specification Sheet | Specification Sheet |
|
| NEMA and Definite Purpose Contactors and Starters: Section 16 - Digest 179 (2024) - NEMA-Contactors-Digest-Catalog-0100CT2401-SEC-16 (pdf) | Catalog |
|
| TeSys Catalogue - 2022 - Chapter B11 - Overload relays TeSys LRK, Deca, Giga, RM1, LT3 - B11+-+Overload+relays_EN+(web) (pdf) | Catalog |
|
| TeSys LR9D electronic overload relay - brochure (US version) - TESYSLR9D+3-16 (pdf) | Brochure |
|
