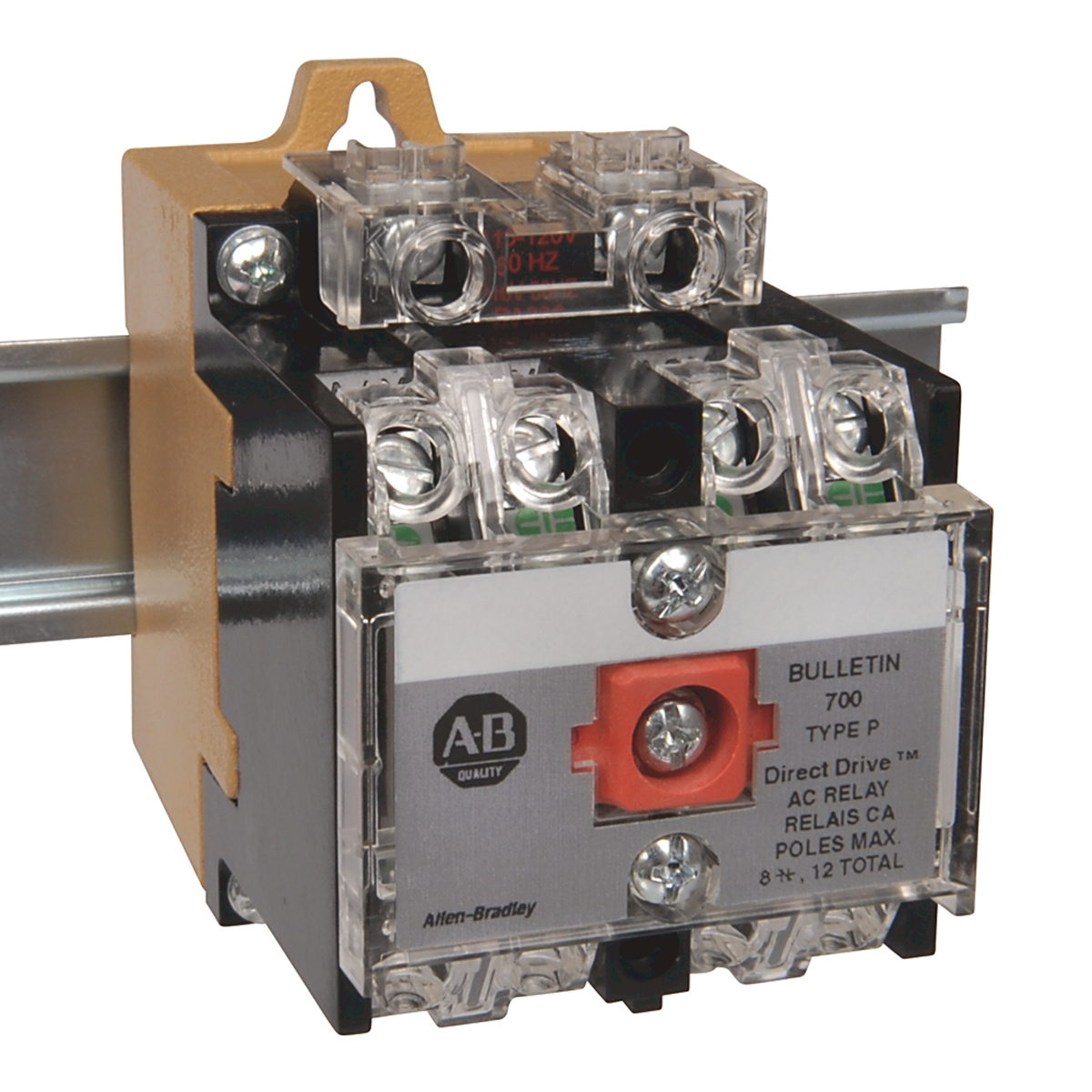

Rockwell Automation 700-P NEMA AC Heavy Duty Open-style Industrial Control Relays 120 VAC 0 NO DIN Rail

700-P — Direct-drive Convertible Contact Cartridge Relays: The 700-P AC control relay is factory assembled with standard 10 A contact cartridges, with all contacts as N.O. in either 2-, 4-, 8-, or 12-pole configurations with a 120V operating coil. Four-po

• The 700/700DC-P family of direct-drive Industrial Relays offers switching solutions ranging from 200 mA in low-energy circuits to 35 A in heavy duty circuits.
• All contacts can easily be changed from the standard N.O. to N.C. configuration.
• The relays can be accessorized to meet the application needs with the use of time delayed contacts, mechanical latches, and NEMA enclosures.
• Combining different cartridges into one relay can yield a custom-tailored application solution.
• 700/700DC-P relays use standard (10 A) contact cartridges with a double-break and bifurcated design.
• Bifurcation provides excellent contact reliability and low-contact bounce, while the double-break contact design reduces the possibility of contacts welding and enhances the relay’s ability to break DC circuits.
• These relays can be configured with a maximum of 12 contacts (only 8 may be N.C.).
