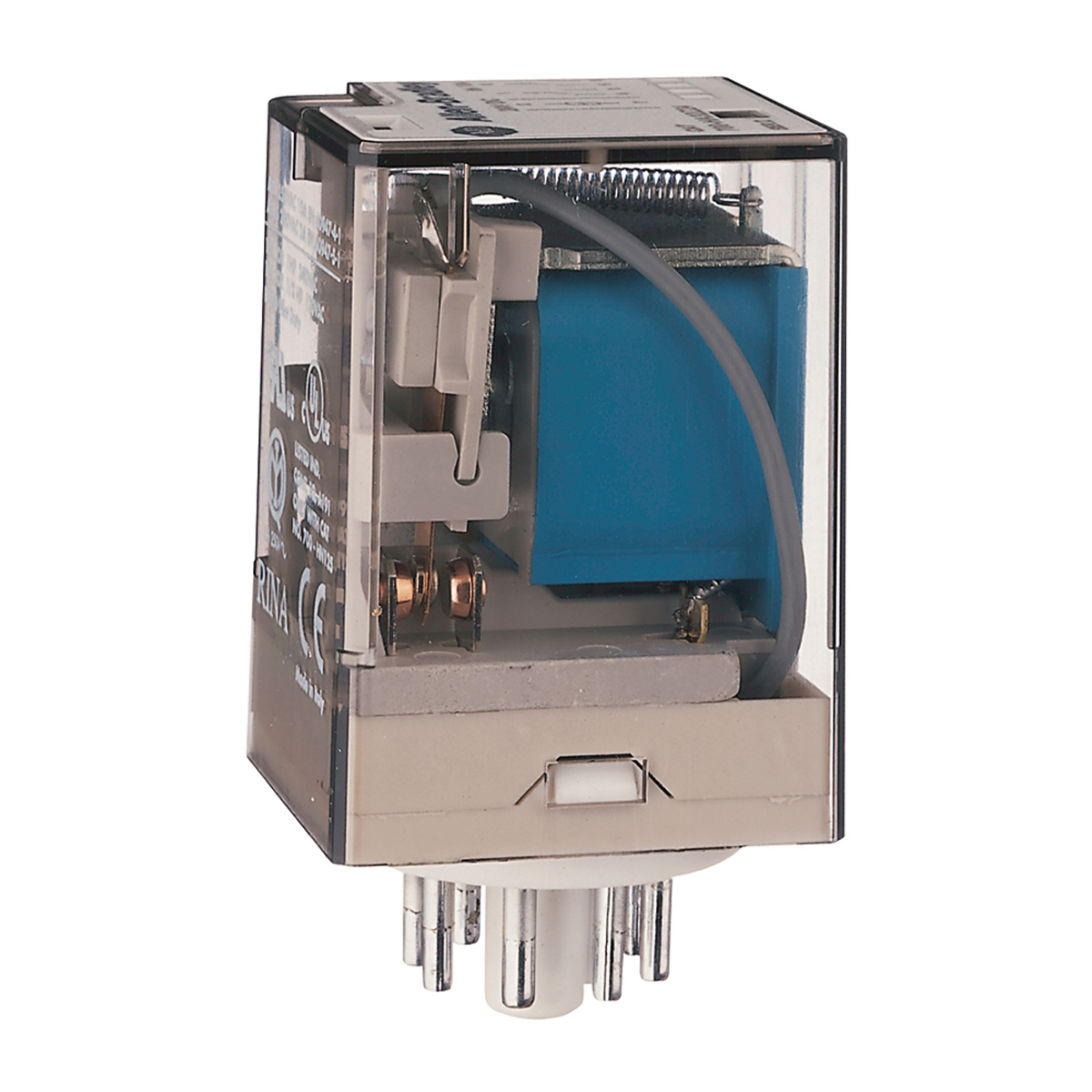

Rockwell Automation 700-HA General Purpose Relays 24 VDC DPDT
Mfg #:
700HA32Z24
BOR #:
119283
700-HA General Purpose Relays with Standard Single Contacts
- 10 A contact rating
- DPDT, 3PDT
- Pin-style terminals
- Standard ON/OFF flag indicator
- Options: LED, push-to-test and manual override, socket-mounted surge suppressor module, or multi-function timer (See Includes)
| Configuration | 8 Pin |
| Base Type | Octal Base |
| Indicator Type | Mechanical Indicator |
| Cover Type | Clear Cover |
| Brand | Rockwell Automation |
| Contact Rating | 10 A |
| Series | 700-HA |
| Relay Type | General Purpose Relay |
| Relay Style | General Purpose |
| Amperage | 10 A |
| Coil Voltage | 24 VDC |
| Contact Configuration | DPDT |
| Rockwell Automation Specification Sheet | Specification Sheet |
|
