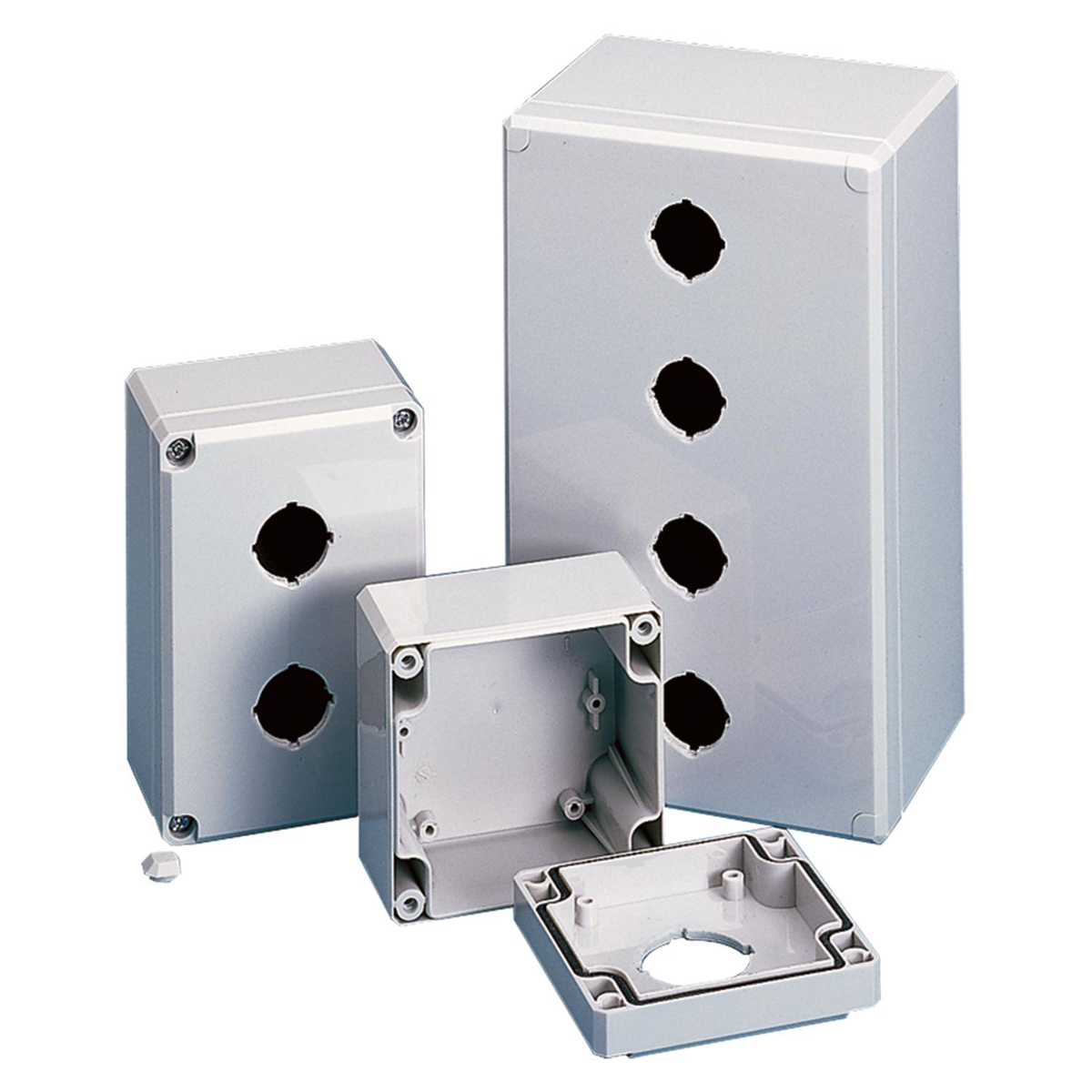

nVent HOFFMAN Q41 Series QLINE™ D Push Button Enclosures NEMA 4/4X/12
Mfg #:
Q1PBPCDM
BOR #:
129962
Used for insulating and housing 30.5-mm or 22.5-mm pushbuttons in hostile environments
- QLine D Enclosures have contoured bodies with flush cover screws for an attractive, contemporary appearance.
- High-impact polycarbonate material is used for both body and cover
- Polycarbonate material is easily punched, drilled, filed or sawed
- Straight side walls permit ganging of multiple enclosures
- Cross-point captivated cover screws are stainless steel
- Mounting holes molded directly adjacent to cover screws
- Cover screws protected by removable caps that are both aesthetic and provide tamper resistance
- Molded internal pads for mounting optional panels, rails or other components
- Seamless foam-in-place gasket assures watertight and dust-tight seal
- Screws provided for mounting optional panel
- Optional panels are unpainted plated steel
- Mounting hardware furnished
- Material is halogen free
| Brand | nVent HOFFMAN |
| Depth | 79 mm |
| Number of Holes | 1 Hole |
| Operator Size | 22.5 mm |
| Includes | Captivated cover screws, Foam-in-place gasket, Molded internal pads, Mounting screws and hardware, Removable caps |
| Width | 73 mm |
| Height | 75 mm |
| Color | Light Gray |
| Material | Polycarbonate |
| Dimensions | 75 x 79 x 73 mm |
| NEMA Rating | NEMA 4/4X/12 |
| nVent HOFFMAN Specification Sheet | Specification Sheet |
|
| Certificate - CERT-00186 - NAM-US | Compliance |
|
| Certificate - CE-UKCA-00048_Q-Line - NAM-US | Compliance |
|
