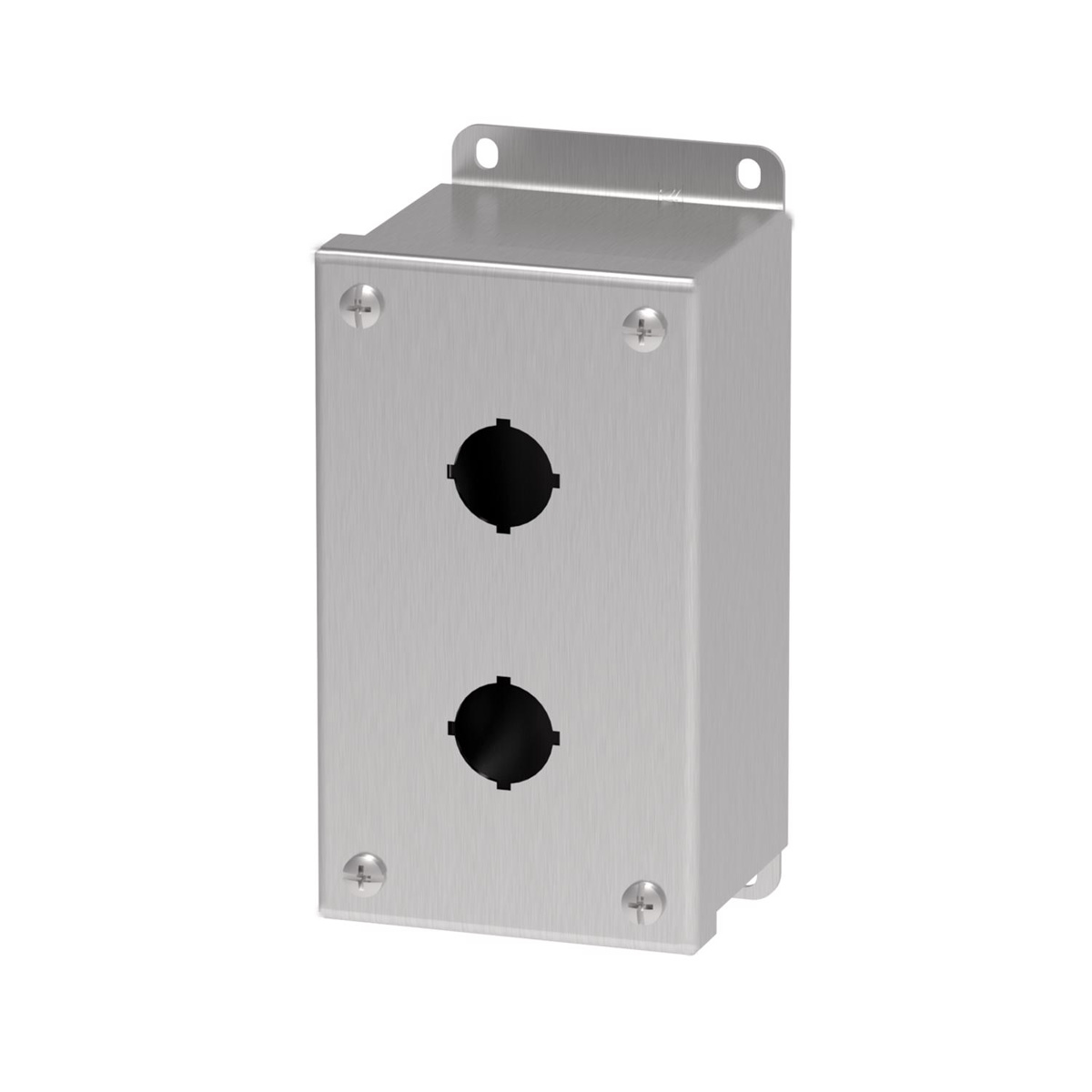

nVent HOFFMAN PB1S Series N4X Push Button Screw Covers NEMA 4X/12/13

PrimaryProductImage
PrimaryProductImage
Logo
Mfg #: E2PBGSS
BOR #: 666121
View all 13 in product family
Looking for prices?
Sign In
Create an Account

Punched specifically to house either 30.5-mm or 22.5-mm oiltight pushbuttons, switches and pilot lights. Enclosures provide protection against dirt, dust, oil and water

  • 14 gauge bodies, 16 gauge covers, Type 304 or Type 316L stainless steel
  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Bonding provision on door, grounding nut on body
  • 4-way pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights
  • Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
  • Oil-resistant gasket
  • Cover and sides of body have smooth #4 brushed finish.
See More
Product can be ordered only in multiples of
Specifications
Brand nVent HOFFMAN
Depth 2-3/4 in
Number of Holes 2 Hole
Operator Size 22.5 mm
Includes Captivated cover screws, Grounding nut on body, Oil-resistant gasket
Width 3-1/4 in
Height 5-3/4 in
Material Stainless Steel 304
NEMA Rating NEMA 4X/12/13
Enclosure Cover Type Screw
Related Documents
Certificate - CERT-00183 - NAM-US Compliance
nVent HOFFMAN Specification Sheet Specification Sheet
Certificate - CE-UKCA-00046_Pushbutton - NAM-US Compliance
