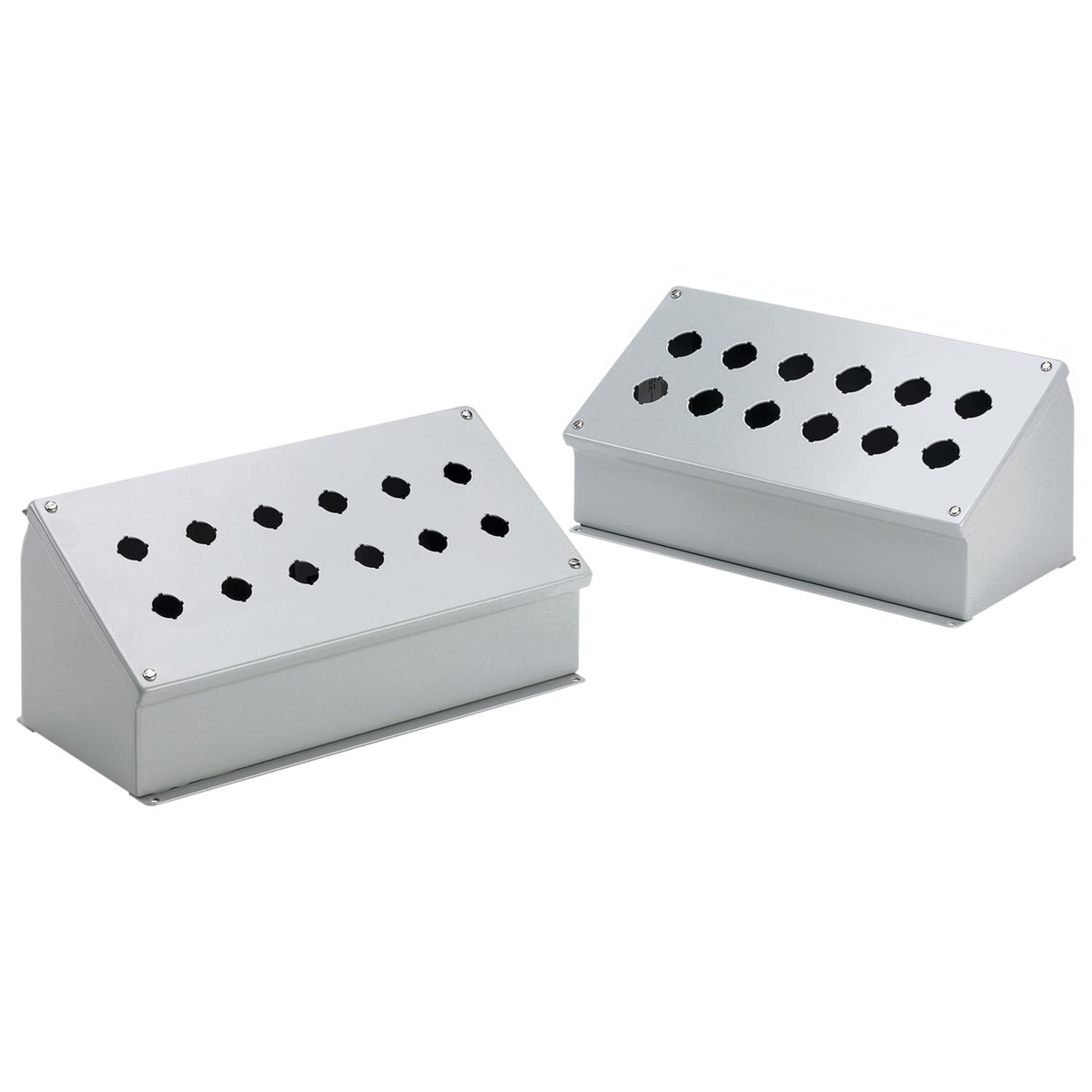

nVent HOFFMAN PB1 Series N12 Slope Front Push Button Enclosures NEMA 12/13

Mfg #: E4PBAM

BOR #: 1382229

View all 18 in product family

Looking for prices?

Create an Account

These Sloped Front Pushbutton Enclosures are designed to hold 30.5-mm or 22.5-mm pushbuttons and switches where slanted control surfaces are desired.

14 gauge steel
Seams continuously welded and ground smooth
Captivated cover screws thread into sealed wells
Grounding stud on body
Bonding provision on cover
Oil-resistant gasket
Factory stamped 4-way pushbutton holes
Enclosures 7.25 x 6.25 x 6.75 in. (184 x 159 x 171 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
External welded-on mounting brackets for easy installation
ANSI 61 gray polyester powder paint inside and out
IP65

Product can be ordered only in multiples of

Brand	nVent HOFFMAN
Depth	4.84 in
Number of Holes	4 Hole
Operator Size	22.5 mm
Includes	Captivated cover screws, Grounding stud, Mounting bracket, Oil-resistant gasket
Width	10 in
Height	3.5 in
Color	Gray
Material	Steel
Dimensions	3.5 x 4.84 x 10 in
NEMA Rating	NEMA 12/13

Certificate - CERT-00182 - NAM-US	Compliance
nVent HOFFMAN Specification Sheet	Specification Sheet
