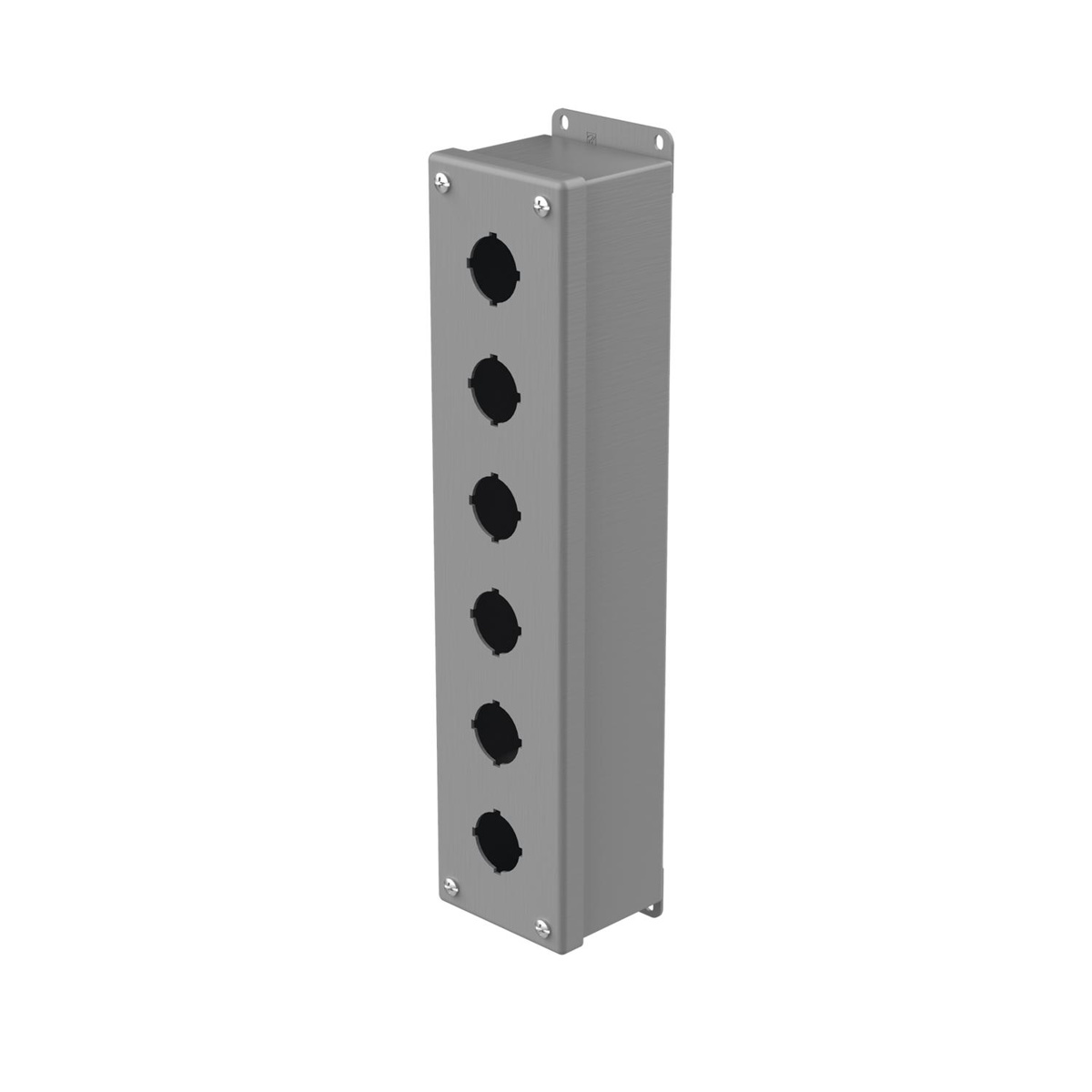

nVent HOFFMAN PB1 Series N12 Push Button Enclosures NEMA 12/13

Mfg #: E6PBVL

BOR #: 134964

View all 22 in product family

Looking for prices?

Create an Account

These pushbutton enclosures are designed to hold 30.5-mm or 22.5-mm pushbuttons and switches.

16 or 14 gauge steel
Seams continuously welded and ground smooth
Captivated cover screws thread into sealed wells
Bonding provision on cover
Grounding stud on body
Oil-resistant gasket
Factory stamped 4-way pushbutton holes
Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring
External welded-on mounting brackets for easy installation
ANSI 61 gray polyester powder paint inside and out
IP65

Product can be ordered only in multiples of

Brand	nVent HOFFMAN
Depth	2-3/4 in
Number of Holes	6 Hole
Operator Size	30.5 mm
Includes	Captivated cover screws, Grounding stud, Mounting bracket, Oil-resistant gasket
Width	3-1/4 in
Height	14-3/4 in
Color	Gray
Material	Steel
NEMA Rating	NEMA 12/13

Certificate - CE-00028 - NAM-US	Compliance
nVent HOFFMAN Specification Sheet	Specification Sheet
Certificate - CERT-00182 - NAM-US	Compliance
