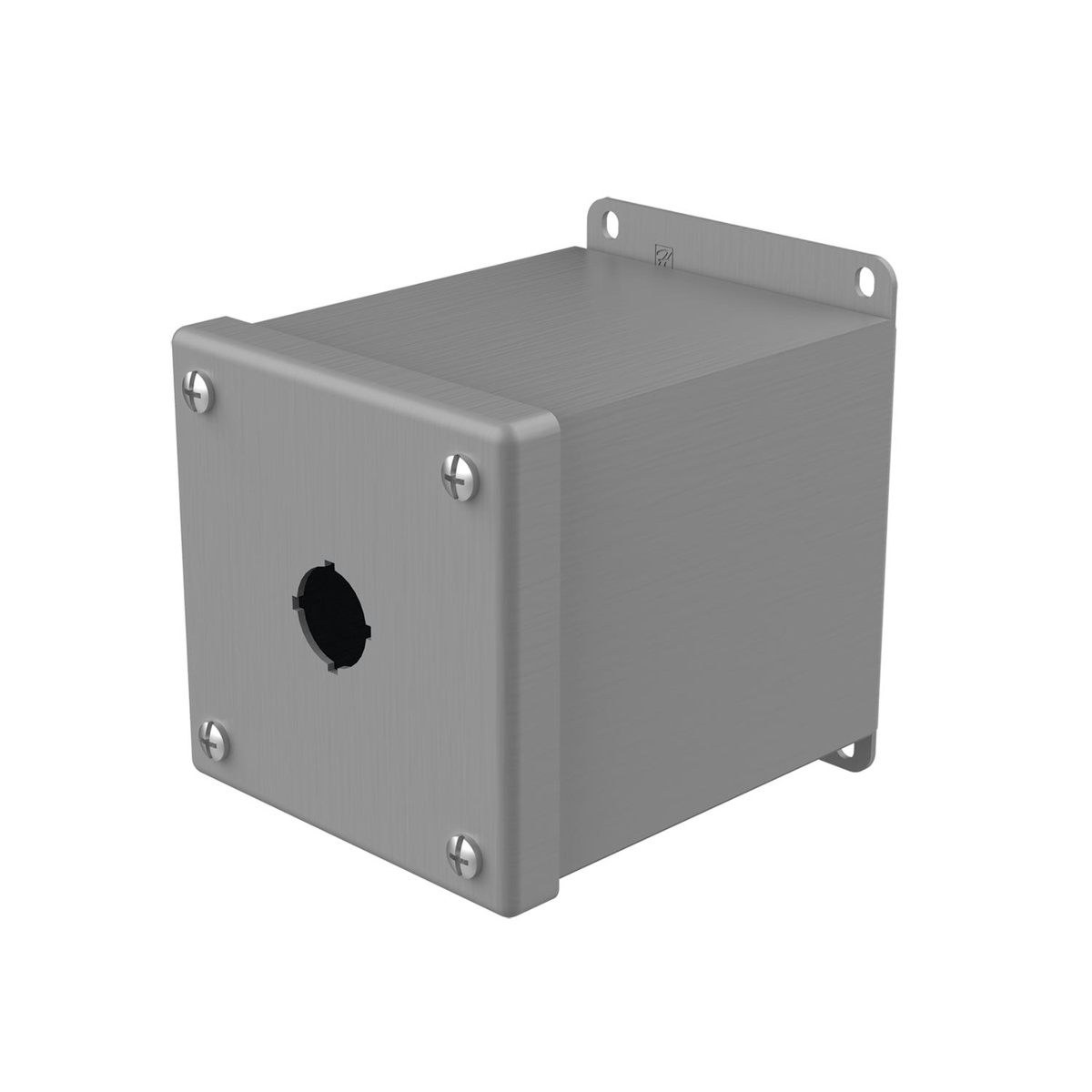

nVent HOFFMAN PB1 Series N12 Extra Deep Push Button Enclosures NEMA 12/13
Mfg #:
E1PBXM
BOR #:
1382289
Extra-Deep Pushbutton Enclosures are designed to hold 30.5-mm and 22.5-mm pushbuttons and switches, with a depth of 4.75 inches (121 mm) to accommodate additional pushbutton contact blocks.
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on cover
- Grounding nut in body of enclosure
- Oil-resistant gasket
- External welded-on mounting brackets for easy installation
- 30.5-mm or 22.5-mm size holes
| Brand | nVent HOFFMAN |
| Depth | 4-3/4 in |
| Number of Holes | 1 Hole |
| Operator Size | 22.5 mm |
| Includes | Captivated cover screws, Grounding stud, Mounting bracket, Oil-resistant gasket |
| Width | 4 in |
| Height | 4 in |
| Color | Gray |
| Material | Steel |
| NEMA Rating | NEMA 12/13 |
| Certificate - CERT-00182 - NAM-US | Compliance |
|
| nVent HOFFMAN Specification Sheet | Specification Sheet |
|
