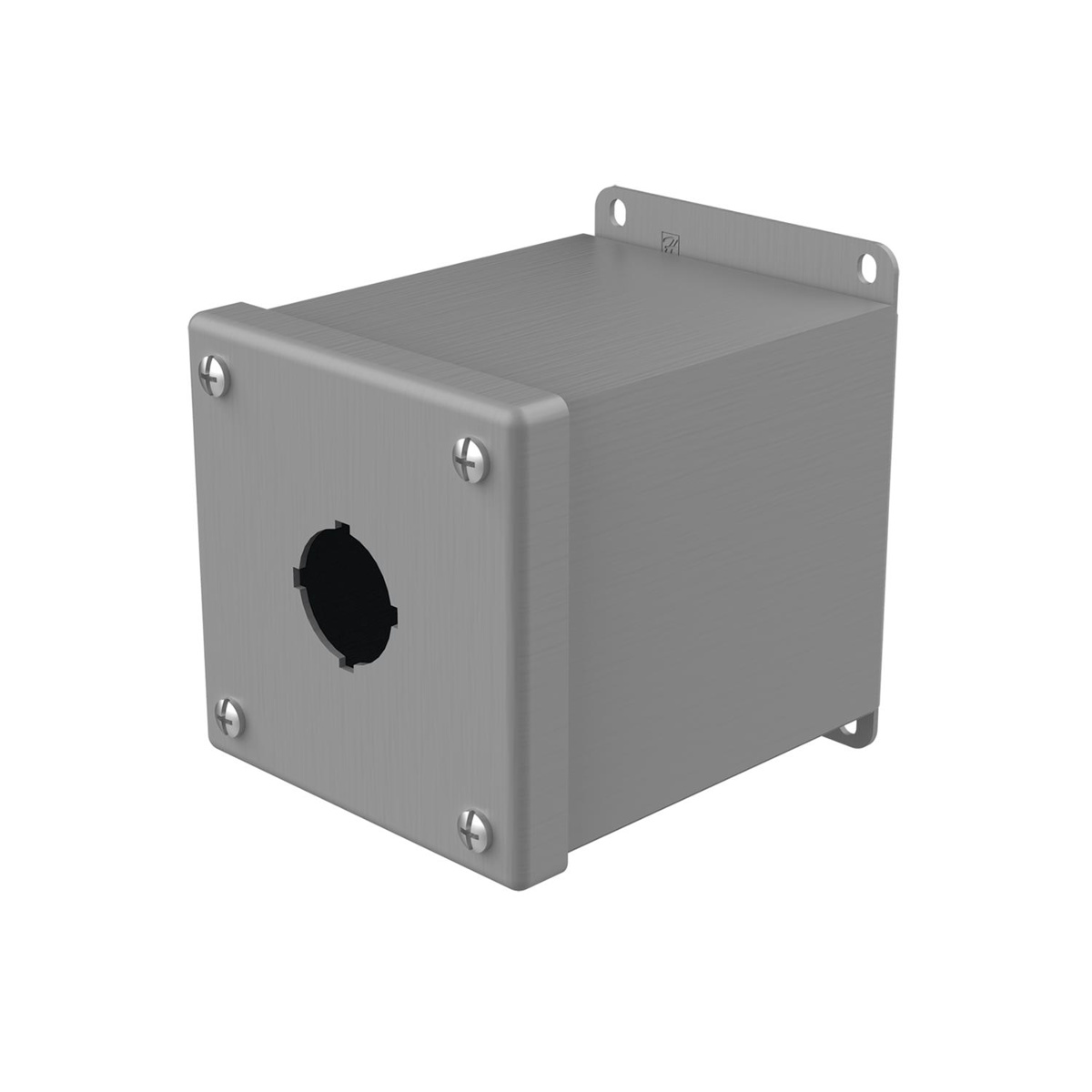

nVent HOFFMAN PB1 Series N12 Extra Deep Push Button Enclosures 4 x 4.75 x 4 in NEMA 12/13

Mfg #: E1PBX

BOR #: 135020

View all 13 in product family

Looking for prices?

Create an Account

Extra-Deep Pushbutton Enclosures are designed to hold 30.5-mm and 22.5-mm pushbuttons and switches, with a depth of 4.75 inches (121 mm) to accommodate additional pushbutton contact blocks.

Seams continuously welded and ground smooth
Captivated cover screws thread into sealed wells
Bonding provision on cover
Grounding nut in body of enclosure
Oil-resistant gasket
External welded-on mounting brackets for easy installation
30.5-mm or 22.5-mm size holes

Product can be ordered only in multiples of

Specifications

Brand	nVent HOFFMAN
Depth	4-3/4 in
Number of Holes	1 Hole
Operator Size	30.5 mm
Includes	Captivated cover screws, Grounding stud, Mounting bracket, Oil-resistant gasket
Size	4 x 4.75 x 4 in
Width	4 in
Height	4 in
Color	Gray
Material	Steel
NEMA Rating	NEMA 12/13

nVent HOFFMAN Specification Sheet	Specification Sheet
Certificate - CERT-00182 - NAM-US	Compliance
