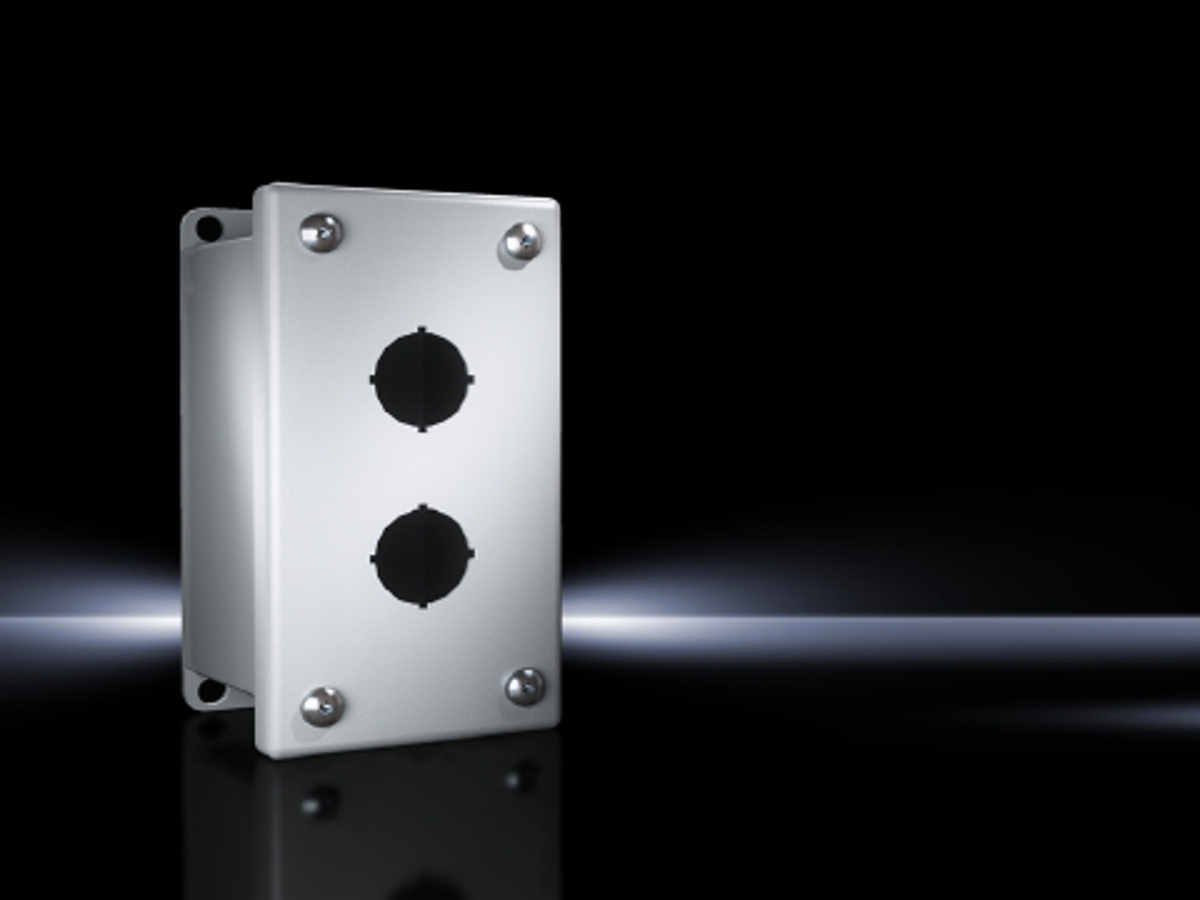

RITTAL Standard Push Button Enclosures NEMA 12/13

Mfg #: 8017665
BOR #: 2354022
Looking for prices?

These NEMA rated boxes are designed for indoor use to house push-buttons, selector switches, pilot lights, etc. and to protect such equipment against dirt, dust and sprayed water, oil or coolant

  • Accepts 22.5 mm and 30.5 mm devices
  • Available in sizes from a single position to 42 hole positions
  • Certifications include: UL TYPE 4, 12 & 13 protection rated, UL file: E118617, UL, cUL
  • Enclosures and covers are made from 14-gauge carbon steel for strength and durabilit
  • Interior and exterior finish is a polyester-urethane powder coat over phosphatized surface, color is RAL 7035 (light gray)
  • Several of these enclosures can be mounted onto a Rittal column and base for use as an operator station
See More
Product can be ordered only in multiples of
Brand Rittal
Depth 3.5 in
Number of Holes 2 Hole
Includes Cover screws, captive Wall Mounting Brackets
Mounting Type Wall
Width 2.7 in
Height 5.1 in
Color Light Gray
Material Carbon Steel
NEMA Rating NEMA 12/13
Rittal Specification Sheet Specification Sheet
